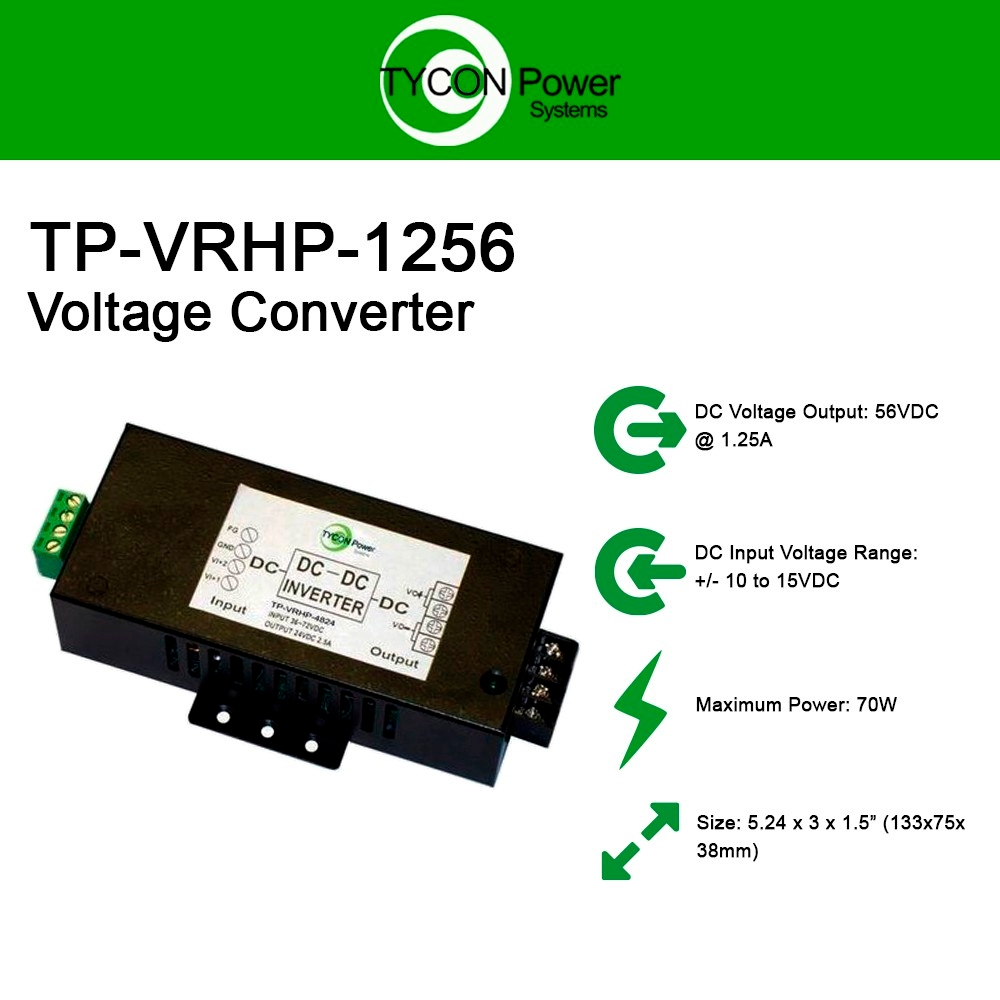

The TP-VRHP series of DC to DC converters offer high output voltage conversion in a compact metal enclosure. They have wire terminal inputs and outputs for maximum flexibility. The units come with DIN rail adapters for DIN rail mounting. They provide power output up to 250W.
- DC Input Voltage Range +/- 10 to15VDC
- DC Voltage Output 56VDC @ 1.25A
- Maximum Power 70W
- Input / Output Isolation Isolated
- Efficiency >85%
- Load / Line Reg 5% / 1%
- Ripple / Noise 2% / 5%
- Isolation 1500VDC Min. / 100M Ohms Min
- Wire Gauge 12AWG Max
- Protections Short Circuit, Overvoltage, Overload
- Operating Temp -22°F to 149°F (-30°C to +65°C)
- Operating Humidity 0 to 90% RH
- Size 5.24 x 3 x 1.5” (133x75x38mm)
- Weight 10.5oz (298g)
- Manufacturer Warranty 3 Years
