Tycon Systems ENC-AL-65x18x20 aluminum outdoor enclosure for battery and equipment storage

ENC-AL-65x18x20

Tycon Power Systems
Tycon Systems ENC-AL-65x18x20 aluminum outdoor enclosure for battery and equipment storage


Product Highlights
  • Weatherproof, UV Resistant, Outdoor Enclosure
  • Double Keyed Locking System
  • Rubber Gasket Nipple Hinged Top
  • Dual Screened Vents
  • Welded Security Shackle to chain lock in place
  • Model#: ENC-AL-65x18x20

    Sku: IT2907.2890.840123



    MSRP: $549.99

    In Stock

    Your Price: $529.95

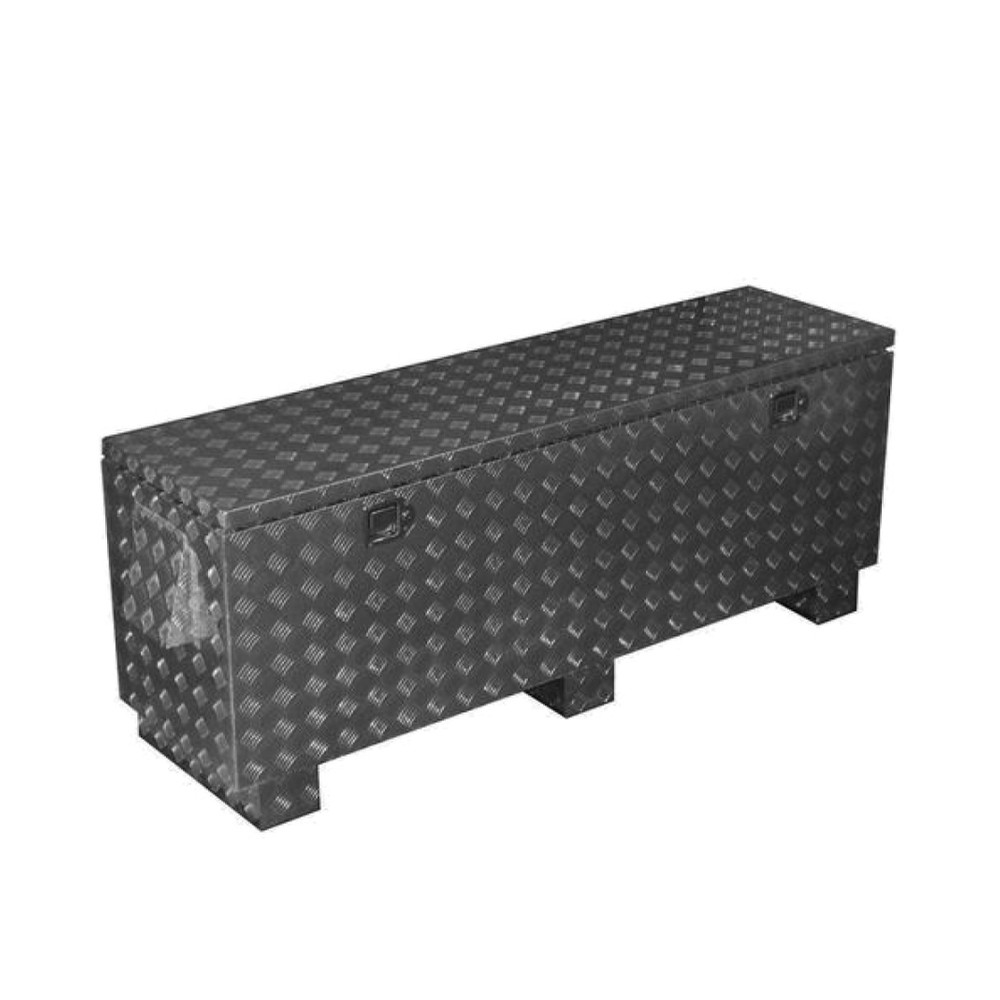

    ENC-AL-65x18x20 is a Weatherproof Aluminum Ground Mount Enclosure designed for battery and equipment storage. 65" x 18" x 20", hinged lid, locking closures with key, gasket, 2mm thick Aluminum, Checker Plate, 8 RJ45 Feedthru holes. It is vented and has two lockable latches for security. The enclosures are designed to be mounted on a level platform or slab. There are 8x 20mm holes in the back panel to accommodate up to 8 Cable Glands (4 RJ45 Cable Glands and 4 Hole Plugs included). There is a security bracket on the back of the enclosure so it can be easily chained to the solar mount pole for security or any other static structure. The enclosure includes mounting features inside to mount DIN Rails or a metal plate for mounting of customer electronics. The bottom standoffs allow for easy maneuvering with a fork lift or pallet jack.

    Applications

    • Battery enclosure
    • Backup Power Systems
    • Equipment enclosure
    • Equipment security
    • Type Vented Enclosure

    • Weatherproofing IP65

    • Material 2.0 mm Aluminum checker plated

    • Material Struts 3.0 mm Aluminum Flat Plate

    • Material Back Rack 4.0mm Aluminum Flat Plate

    • Enclosure External Size 69” x 20.5” x 25” (1750 x 520 x 640mm)

    • Internal Dimensions 64.5” x 17.5” x 19.5” (1638 x 444 x 495mm)

    • Net Weight 59.5 lbs. (27kg)

    • Manufacturer Warranty 3 year
