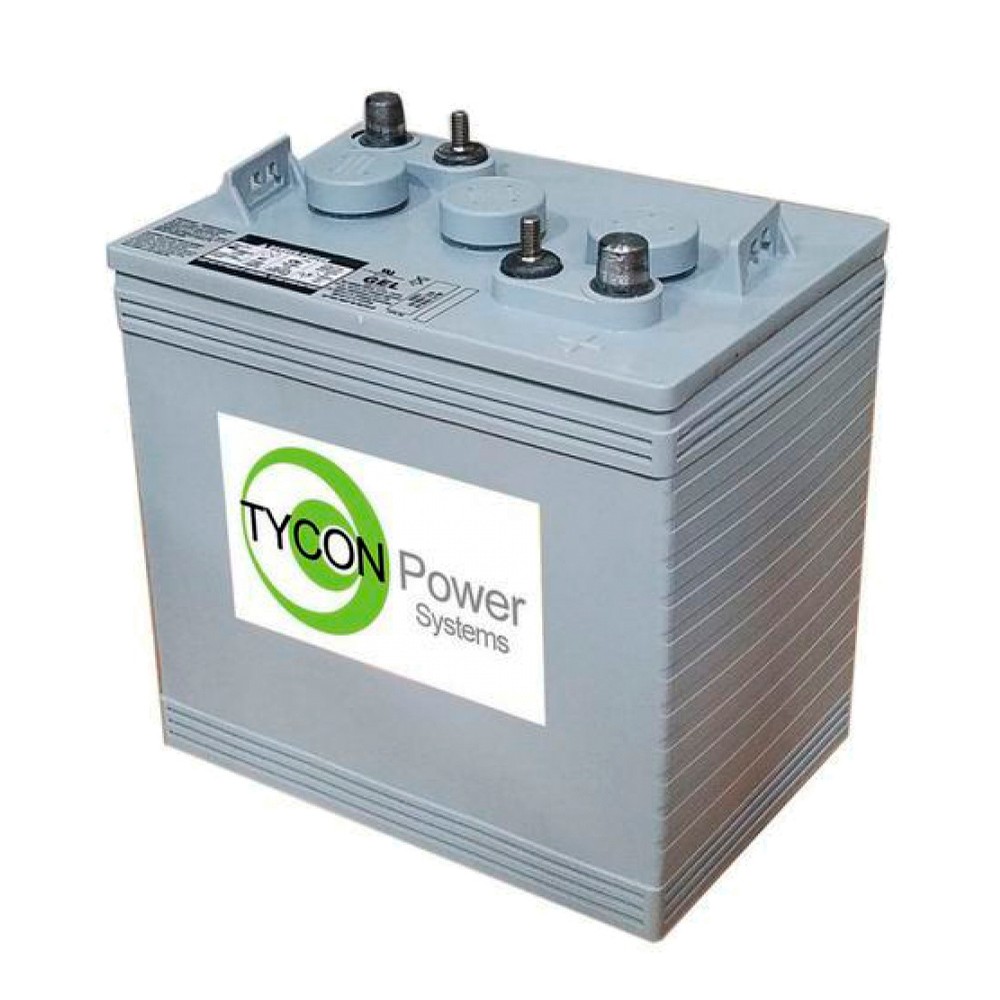

Tycon Power TPBAT6-180 gel sealed lead acid battery 6V and 180AH capacity

TPBAT6-180

Tycon Power Systems
Tycon Power TPBAT6-180 gel sealed lead acid battery 6V and 180AH capacity


Product Highlights
  • Sealed and Maintenance Free
  • Safety Valve for Ultimate Safety; Prevents Overpressure
  • Exceptional Deep Discharge Recovery Performance
  • Low Self Discharge Characteristics
  • Highly Resistant to Vibration and Shock
  • Model#: TPBAT6-180

    Sku: IT2905.2885.838092



    MSRP: $485.95

    In Stock

    Your Price: $485.95




    The TPBAT6-180 high rate valve regulated sealed lead acid (VRLA) GEL battery has been developed for long term operation in harsh environments. They have a high cycle life and good 5 year float life. They are designed to operate over a wide temperature range such as those experienced in outdoor equipment applications. The batteries can be installed in any position without affecting their performance or reliability.

    Applications

    • Remote Equipment Power
    • Surveillance Cameras
    • Wireless Base Stations
    • Medical Equipment
    • Remote Sensors
    • Backup Power Systems
    • Voltage 6V
    • Capacity (amp hours; 20hr) 180
    • Typical Float Life 5 Years
    • 30% Discharge Cycle Life 1700 Cycles
    • Type / Technology Valve Regulated Sealed Lead
    • Acid / GEL Self-Discharge (25°C) <3% per month
    • Charge Voltage (-9mV / °C) 7.05 to 7.2V ; Max Current 54A
    • Float Voltage (-9mV / °C) 6.72 to 6.78V
    • Operating Temperature -60C (-76F) to +60C (140F)
    • Housing Polyethylene
    • Dimensions (L x W x H) 260 x 180 x 276 (10.25 x 7.1 x 10.9”)
    • Weight 30.8kg (68lb)
    • Manufacturer Warranty 2 Years
