POE-PowerTap

Tycon Power Systems

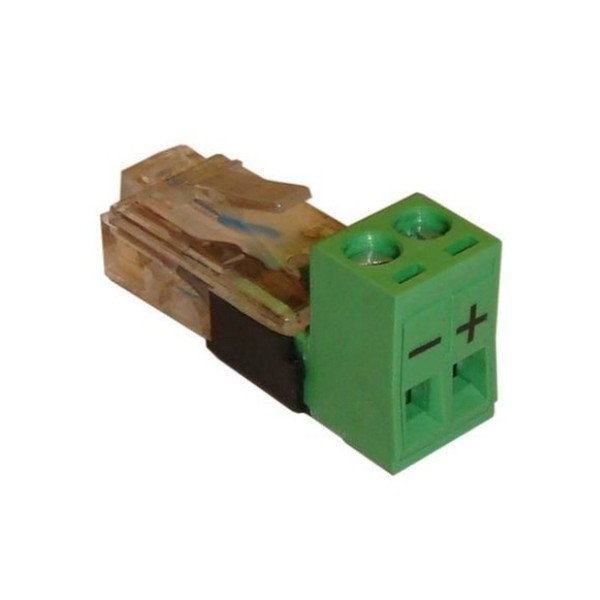

Tycon Power Systems POE-PowerTap Taps into POE power on RJ45 connector



Product Highlights
  • • Allows monitoring / testing of PoE voltage
  • • Allows tapping into PoE output to extract voltage onto flying lead wires
  • • High Temperature Operation
  • • Very Compact
  • Model#: POE-PowerTap

    Sku: IT2904



    MSRP: $19.99

    In Stock

    Your Price: $19.99






    MODEL: POE-PowerTap

    POE PowerTap

    The POE-PowerTab is a unique tool that allows monitoring or testing of POE voltages, Extracting POE voltage from a POE switch or injector or Injecting POE voltages to CAT5 cable. The POE-PowerTap is outfitted with a wire terminal connector for up to 12awg wire.

    Features:

    • Allows monitoring / testing of POE voltage
    • Allows tapping into POE output to extract voltage onto flying lead wires
    • High Temperature Operation
    • Very Compact

    Specifications POE-PowerTap

    Maximum Current 2A
    Maximum Wire Size 12awg
    Operating Temperature -40 to +70°C (-40 to +158°F)
    Operating Humidity (RH) 5% - 90% non condensing
    Storage Temperature -40 to +80°C (-40 to +176°F)
    Dimensions (LxWxH) 32 x 13 x 15mm (1.25 x 0.5 x 0.6”)
    Weight 5g (0.2oz)

    Datasheet

    PDF File Tycon Power Systems POE-PowerTap Taps into POE power on RJ45 connector
