Tycon Power Systems

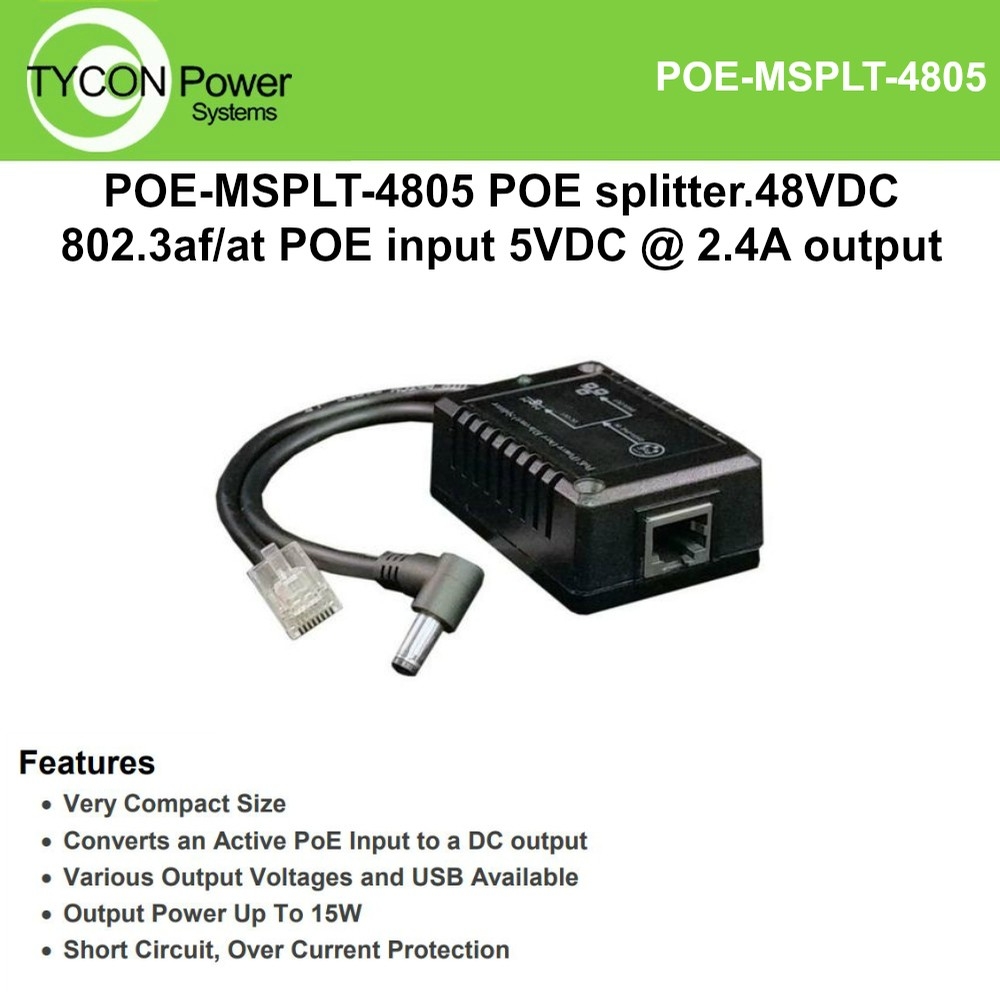

Tycon Power Systems POE-MSPLT-4805 POE splitter.48VDC 802.3af/at POE input, 5VDC @ 2.4A output

Model#: POE-MSPLT-4805

Sku: IT2901

MSRP: $37.99

Out of stock

The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE

power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output

voltage. The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on

standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB

Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.

The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network

switches or PoE injectors.


  • Very Compact Size

  • Converts an Active PoE Input to a DC output

  • Various Output Voltages and USB Available

  • Output Power Up To 15W

  • Short Circuit, Over Current Protection
