Tycon Power TP-DCDC-4856GD-VHP DC to DC Converter 56V 70W Gigabit Dual 802.3at with PoE Inserter


Tycon Power Systems
Tycon Power Systems TP-DCDC-4856GD-VHP DC to DC Converter 56V 70W Gigabit Dual 802.3at with PoE Inserter

Product Highlights
  • 56V 70W Gigabit 4pair Dual 802.3at PoE Inserter
  • +/- 36-72VDC Wire Terminal Input
  • PoE Pinout: 3,4,5,6V+ ; 1,2,7,8V-
  • Dual DC Inputs for connecting 2 power sources
  • Applications: 24VDC and 48VDC or -48VDC Remote Power Systems; Axis Q6035-e PTZ Surveillance Cameras; 802.3at High Power Applications
  • Model#: TP-DCDC-4856GD-VHP

    Sku: IT2899.2878.834332

    MSRP: $159.99

    Out of stock

    Your Price: $143.95

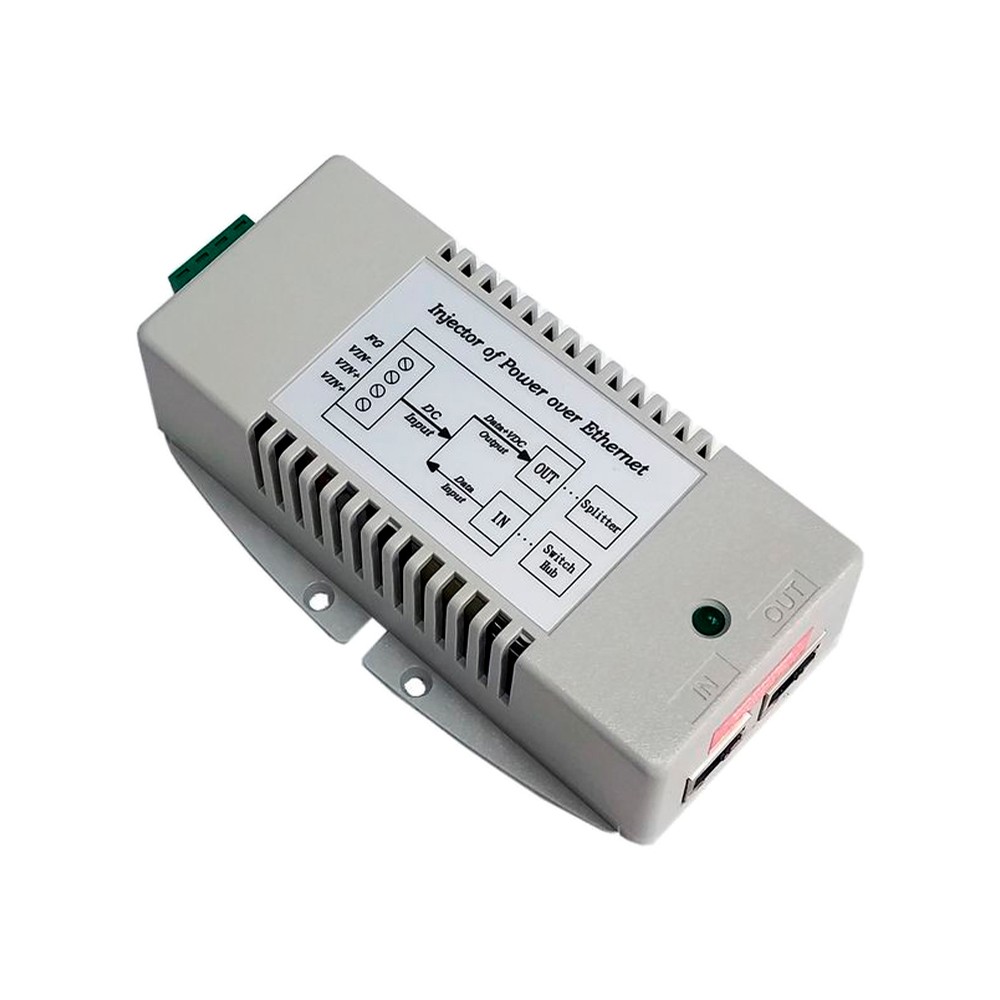

    The TP-DCDC-4856GD-VHP is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q60 Series outdoor PTZ security cameras. The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilizes pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-4856GD-VHP has separate LED indicators for indicating which 802.3af/at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.

    The TP-DCDC-4856GD-VHP has been qualified by Axis to be used with their Q60 series of PTZ cameras. The unit can be used with any 802.3af/at device as it will supply 35W to any 802.3af/at POE channel detected. If two channels are detected on the client then 70W power will be supplied.

    They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

    This product is compatible with Cisco's UPOE standards.

    • Input Voltage +/- 36VDC to 72VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • POE Specification 802.3at
    • Output Voltage (+/-2.5%) 56VDC
    • Data in & Data/POE Output
    • Connector RJ45 (Shielded)
    • Output Current (max) 0.625A per POE channel = 1.25A Total
    • Output Power (max) 35W per POE channel = 70W Total
    • Self-Consumption Power 2W
    • Efficiency (min) 80%
    • Line Regulation, Ripple, Noise 1%
    • Load Regulation 5%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Operating Humidity (RH) 5% - 90%
    • MTBF (Mean Time Between Failure) 55,489 Hours
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 255g (9oz)
