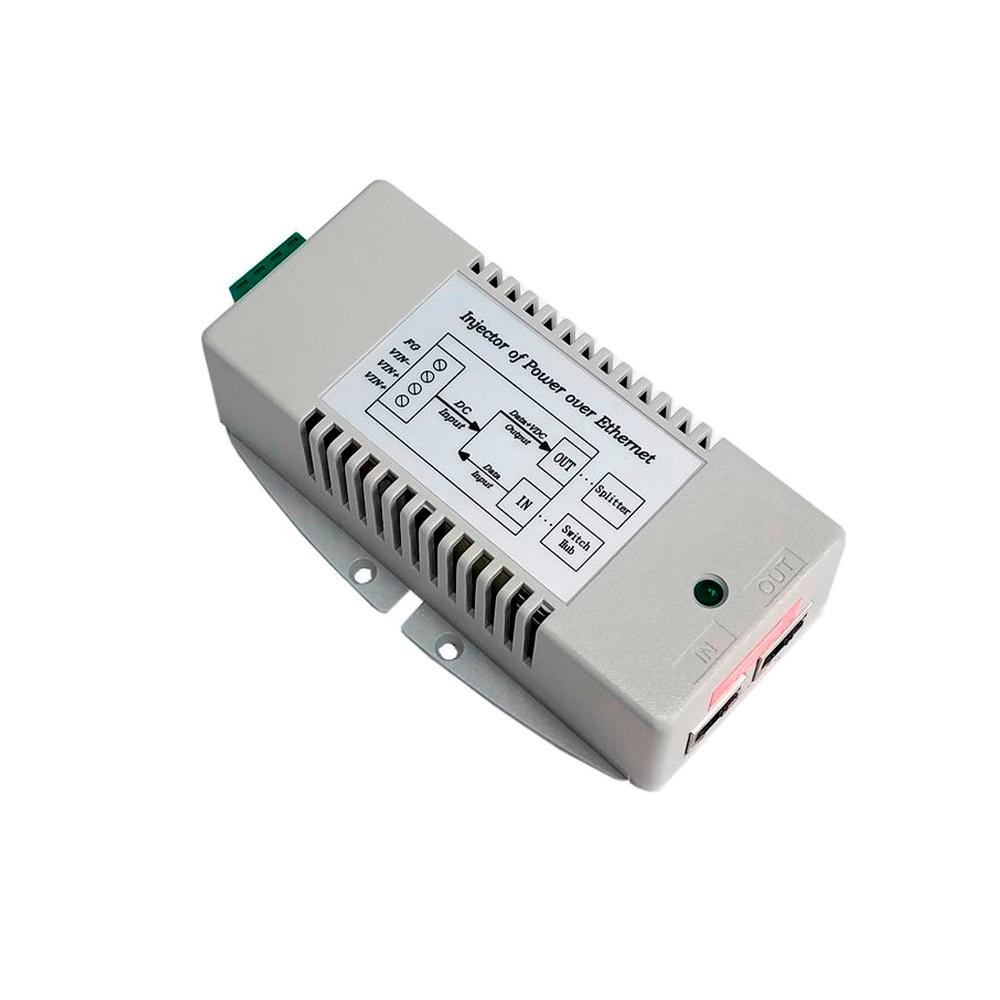

Tycon TP-DCDC-4856G-VHP Gigabit 36-72V IN DC to DC converter w/ Passive PoE Inserter 56V OUT and 70W

TP-DCDC-4856G-VHP

Tycon Power Systems
Tycon Power Systems TP-DCDC-4856G-VHP Gigabit 36-72V IN DC to DC converter with Passive PoE Inserter 56V OUT and 70W


Product Highlights
  • 56V 70W Gigabit 4pair Passive PoE Inserter
  • +/- 36-72VDC Wire Terminal Input
  • PoE Pinout: 3,4,5,6V+ ; 1,2,7,8V-
  • Dual DC Inputs for Connecting 2 Power Sources
  • Applications: 24VDC Remote Power Systems; 48VDC or -48VDC Remote Power Systems; Ubiquiti airFiberâ„¢ Antennas; High PoE Compatible Security Cameras
  • Model#: TP-DCDC-4856G-VHP

    Sku: IT2898.2877.833754



    MSRP: $119.95

    In Stock

    Your Price: $119.95




    The Gigabit compatible TP-DCDC4856G-VHP is a special very high power DC to DC converter / PoE inserter designed especially for Ubiquiti airFiber™ antenna systems and other systems which require, high power passive PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires.

    It has two isolated inputs for connecting 2 power sources, like a primary and backup power source. Also various protections for surge, short circuit and overload. The input and output are isolated.

    • Input Voltage +/- 36VDC to 72VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • POE Specification Passive ( 8 Wire , 4 Pair )
    • Output Voltage (+/-2.5%) 56VDC
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 1.25A Total
    • Output Power (max)
    • 70W Total
    • Note: Output power up to 70W at 40C. Derate by 1W for every 1 Deg C above 40C ambient.
    • Example: 60W at 50C
    • Self-Consumption Power 2W
    • Efficiency (min) 80%
    • Line Regulation, Ripple, Noise 1%
    • Load Regulation 5%
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temperature -40 to +70°C (-40 to +158°F)
    • Operating Humidity (RH) 5% - 90%
    • MTBF (Mean Time Between Failures) 55,489 Hours
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 255g (9oz)
