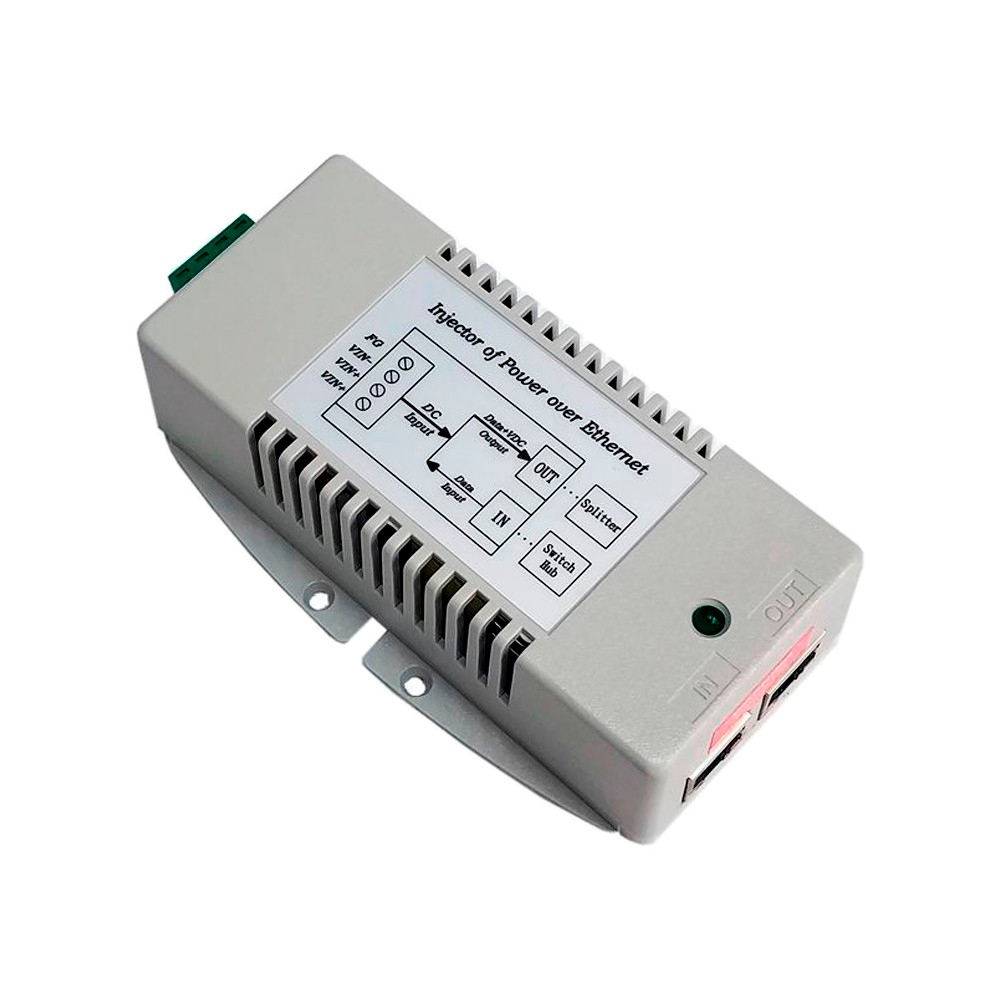

Tycon Power Systems TP-DCDC-1224-HP DC to DC Converter 24V 35W Passive PoE Inserter

TP-DCDC-1224-HP

Tycon Power Systems
Tycon Power Systems TP-DCDC-1224-HP DC to DC Converter 24V 35W Passive PoE Inserter


Product Highlights
  • The TP-DCDC-1224-HP offered by Tycon Power is a low cost and high reliability solution for those requiring 24VDC Power over Ethernet voltage from a 12V battery system
  • It has two inputs for connecting 2 power sources, such as a primary with a backup power source
  • Accepts data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. And works by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-)
  • TP-DCDC-1224-H also has various protections for surge, short circuit and overload. The power output is up to 35W
  • Applications: 12V, 24V and 48V Battery Systems; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-DCDC-1224-HP

    Sku: IT2896.2874.832310



    MSRP: $48.95

    Out of stock

    Your Price: $48.95


    The TP-DCDC-1224-HP offered by Tycon Power is a low cost and high reliability solution for those requiring 24VDC Power over Ethernet voltage from a 12V battery system. They have an integrated PoE injector. Passive PoE and 802.3at models are available. They have two inputs for connecting 2 power sources, such as a primary with a backup power source.

    They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which are negative voltage based.

    If the remote device does not support power over Ethernet, a (POE-SPLT-S) splitter is available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER-S cable can be used.

    • Input Voltage +/- 10VDC to 15VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • POE Specification Passive
    • Output Voltage (+/-2.5%) 24VDC
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 1.46A
    • Output Power (max) 35W
    • Self Consumption Power 2W
    • Efficiency (min) 75%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • EMC Standards FCC Class B NE55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Operating Humidity (RH) 5% - 90%
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • MTBF (Mean Time Between
    • Failure) 106,924 Hours
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 300g (10.6oz)
    • Manufacturer Warranty 3 Years
