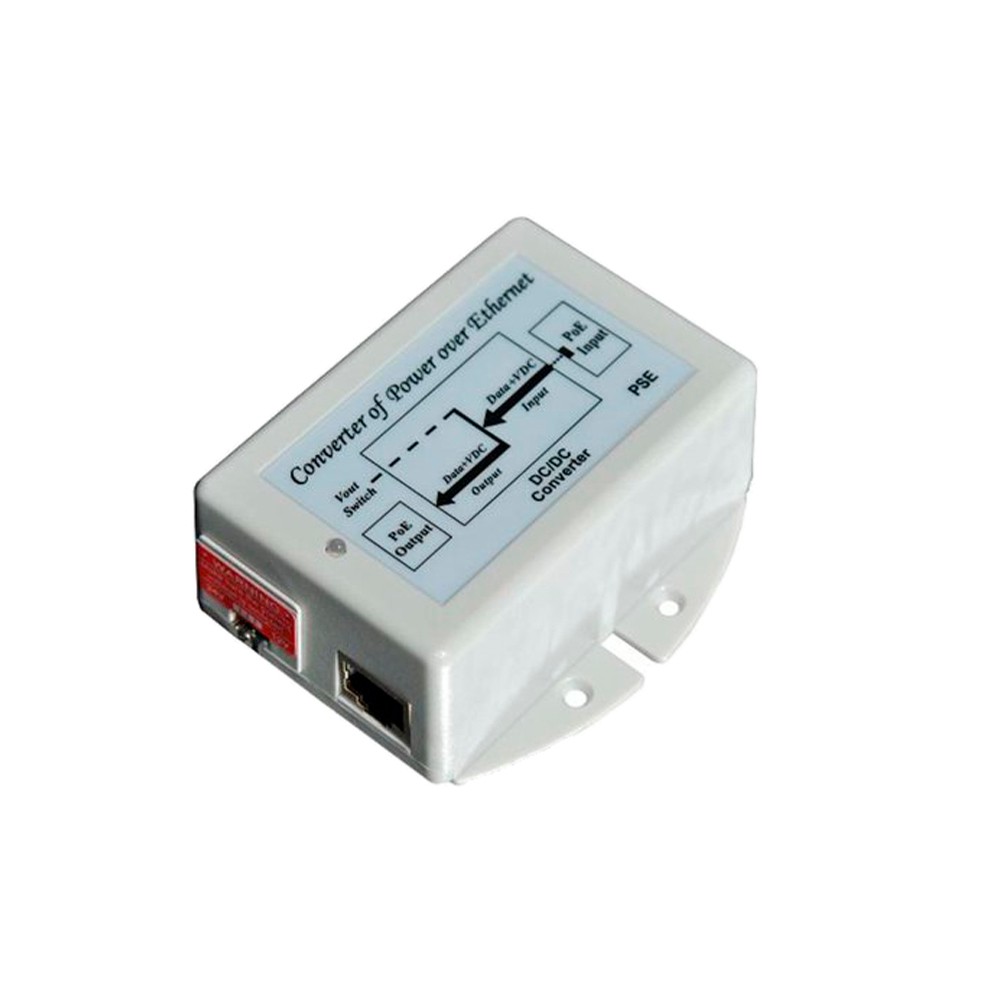

Tycon Power PoE converter TP-POE-2456D 24VDC Passive PoE IN to 802.3af/at PoE OUT

TP-POE-2456D

Tycon Power Systems
Tycon Power PoE converter TP-POE-2456D 24VDC Passive PoE IN to 802.3af/at PoE OUT


Product Highlights
  • 24V Passive PoE In, 56V 35W 802.3at PoE out Converter.
  • Converts 24V Passive PoE to 802.3af/at Compatible PoE.
  • The only connections required are CAT5/6 cables.
  • The PoE input is 22V to 36VDC passive PoE so the TP-POE-2456D is perfect for running IP PoE Cameras or other PoE devices from passive PoE switches like the Tycon TP-SW5G-NC / TP-SW8-NC or Ubiquiti TOUGHSwitch.
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems.
  • Model#: TP-POE-2456D

    Sku: IT2891.2869.829427



    MSRP: $69.99

    Out of stock

    Your Price: $64.95


    The TP-POE-2456D is a unique Power over Ethernet adapter which converts a 24VDC passive PoE input to an 802.3af/at 56VDC PoE output. The only connections required are CAT5/6 cables. The IEEE 802.3af/at compliant PoE output is capable of up to 35W power output. The PoE input is 22V to 36VDC passive PoE so the TP-POE-2456D is perfect for running IP PoE Cameras or other PoE devices from passive PoE switches like the Tycon TP-SW5G-NC / TP-SW8-NC or Ubiquiti TOUGHSwitch.

    The units supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). They have various protections for surge, short circuit, overload and overvoltage.

    Specifications

    • Passive PoE Input Voltage 22VDC to 36VDC
    • Output Overvoltage Protection 58V
    • PoE Output 56VDC 802.3af and 802.3at compatible
    • Output Current 0.625A @ 56V
    • Output Power 35W Max
    • LED Function RED = 24V Input power is ON
    • GREEN = Successful 802.3at handshake. Output power ON
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Size: 3.4 x 3 x 1.4in
    • Weight: 0.4lb
