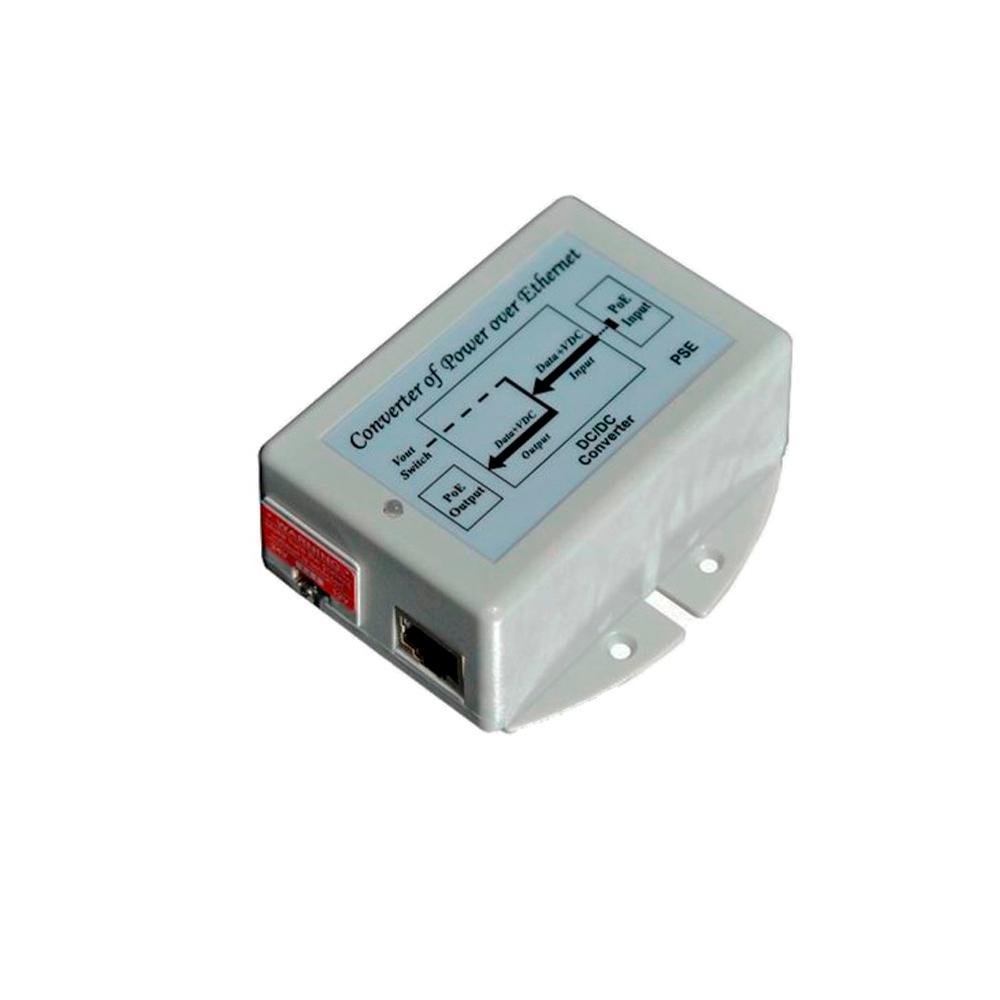

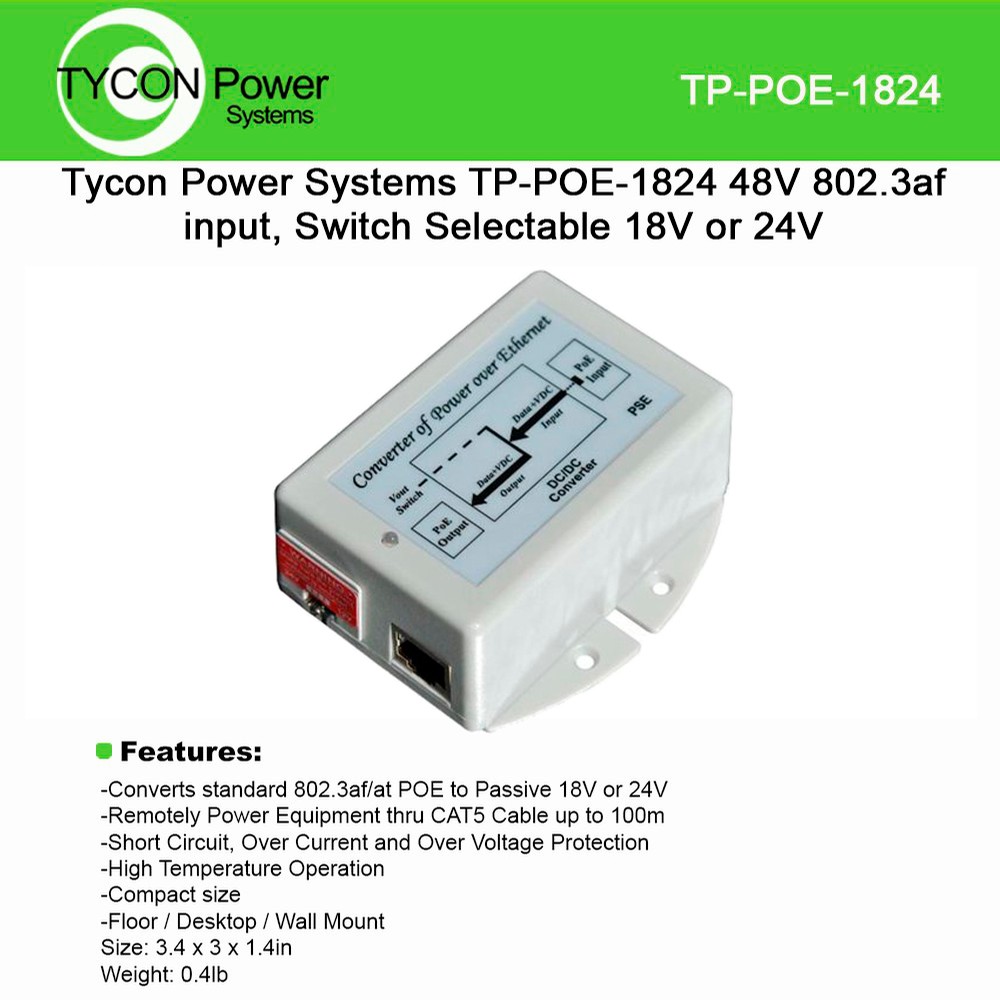

TP-POE-1824

Tycon Power Systems


Tycon Power TP-POE-1824 PoE converter 18V or 24V 10/100 Passive PoE output and 12W


Product Highlights
  • 48V 802.3AF/AT POE IN, 18/24VDC Passive Poe OUT PoE Inserter
  • They accept 802.3af/at POE in and provide a switch selectable 12W POE output of 18VDC or 24VDC
  • They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-)
  • The Ethernet spec supports distances up to 100m (328 feet)
  • The TP-POE-1824 Power Over Ethernet 802.3af/at converter is a unique product allowing a customer to run a Passive POE device from a standard 802.3af or at POE switch

    • Model#: TP-POE-1824

    Sku: IT2889



    MSRP: $24.99


    Out of stock

    The TP-POE-1824 is a unique Power over Ethernet adapter which converts an 802.3af/at 48VDC PoE input into a 18V or 24VDC regulated passive PoE output. The PoE output voltage is external jumper selectable and capable of up to 25W power output. The PoE input is IEEE 802.3af/at compatible so the TP-POE-1824 will work with standard 802.3af/at compliant PoE switches or routers. The TP-POE-1824 enables the powering of passive PoE devices from standard 802.3af/at PoE switches, which eliminates the extra expenses usually required to power non compliant
    equipment.

    Applications

    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • DC PoE Output Voltage (+/-2.5%) 18V or 24V (switchable)
    • Overvoltage Protection 22V or 28V
    • Ethernet Interface Speed 10/10
    • PoE Input (IEEE 802.3af/at) 36 - 60VDC
    • Output Power 12W Max
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
    • Weight 150g (5.3oz)
