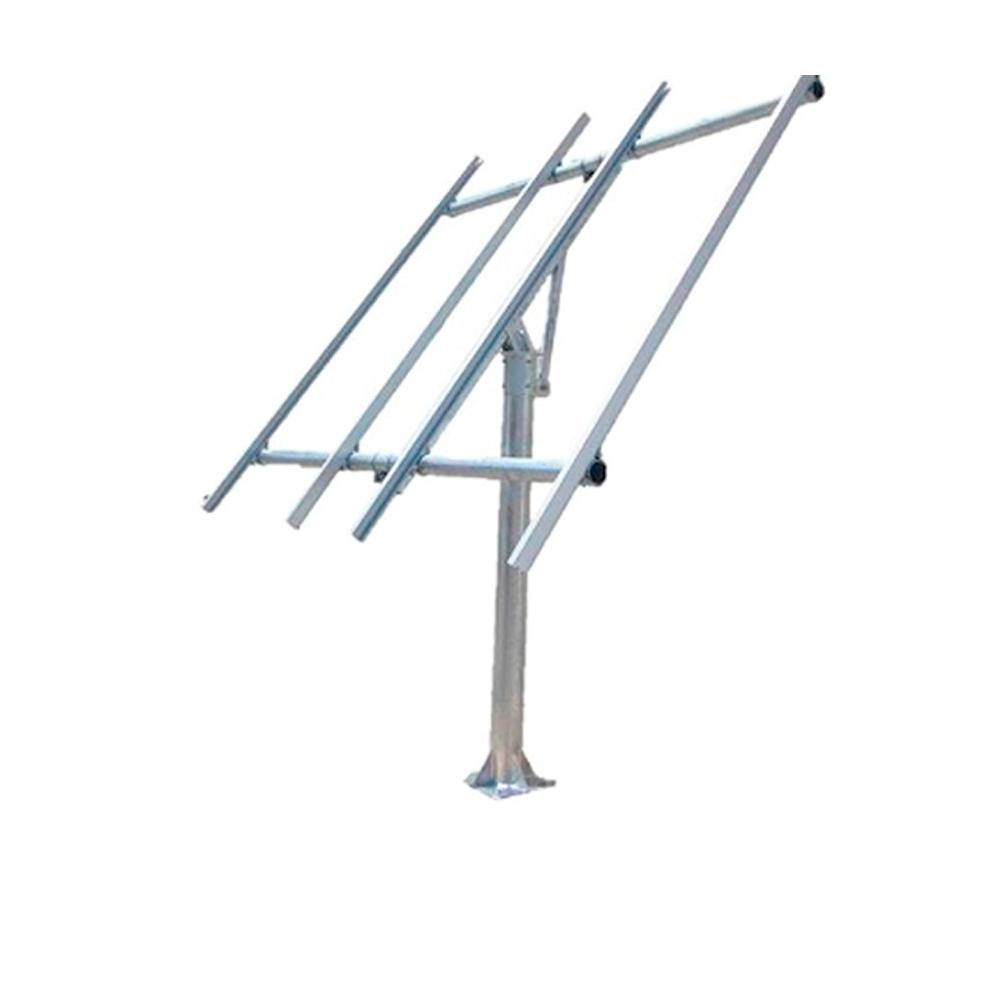

Tycon Power TPSM-250X4-TP top of pole mount for two or four 250W solar panels

TPSM-250x4-TP

Tycon Power Systems
Tycon Power Systems TPSM-250X4-TP top of pole mount for two or four 250W solar panels


Product Highlights
  • Top Of Pole Solar Panel Mount System for 2x or 4x 250-350W Solar Panels
  • Includes 6 inches x 72 inches Mounting Pole with Concrete Anchors
  • Galvanized Steel for long life outdoors in the harshest environments
  • 10-65deg Tilt Capability, 360deg Rotation
  • Applications: 1000W+ remote power generation; Oil and gas monitoring stations; Security monitoring; Wireless stations; Grid connected power supplement
  • Model#: TPSM-250x4-TP

    Sku: IT2886.2863.826261



    MSRP: $1,129.95

    Out of stock

    Your Price: $1,129.95


    Tycon Power Systems versatile Pole Top solution is designed to satisfy the most common small-medium solar power needs, particularly in the wireless and security infrastructure markets. The mount assembles easily and can be used to construct 500Wp (2 x 250Wp modules) or 1000Wp (4 x 250Wp modules) stations, whether used to connect directly to a grid with grid tied inverter(s) to offset power usage, or charge a battery bank for remote applications. With modules commonly available up to 280W+, even greater power production can be achieved in a single installation. Made with galvanized steel, anodized aluminum rails and stainless steel hardware, the structure is designed for years of durability in harsh environments. With the array centrally balanced on the pole top, manual seasonal orientation adjustments can be made easily. When comparing pole mounts be sure to remember that the Tycon Pole top includes the mounting pole and anchors in the price of the system.

    Applications

    • 1000W+ remote power generation
    • Oil and gas monitoring stations
    • Security monitoring
    • Wireless stations
    • Grid connected power supplement
    • Pole height 1829mm (72”)
    • Max array height (back of array at 65deg) 3048mm (120”)
    • Min array height (front of array at 65deg) 1143mm (45”)
    • Total module rail length 2083mm (82”)
    • Structural cross tube total length 2 module: 1499mm (59”)
    • 4 module: 2597mm (102.25”)
    • Array Dimensions Width: 3367mm (132.5”)
    • Height: 2017mm (79.4”)
    • Panel Thickness 30-50MM
    • Tilt 10 – 65 degrees
    • Mounting method anchor bolts in concrete footing
    • (Anchors included, concrete provided by installer)
    • Max wind speed 100mph
    • International Compliant Standards GB50009-2001
    1. GB50011-2001
    2. GB/T 13912-92
    3. GBT 14846-2008
    4. GB-T 6892-2006
    5. GB50429-2007
    6. GB50017-2003
    7. AS NZS 1170
    8. ASCE/SEI 7-05
    9. ASCE/SEI 7-010
    10. 2007 California Administrative
    11. Code
    12. IBC 2006
    13. Euro Code 8
    14. DIN1055
    15. EN 1991-1-3 - Snow Load
    16. EN 1991-1-4 - Wind Actions
    • Crate Outside Dimensions 2007 x 540 x 483mm (79 x 21.25 x 19”)
    • Shipping Weight 115kg (253lbs)
