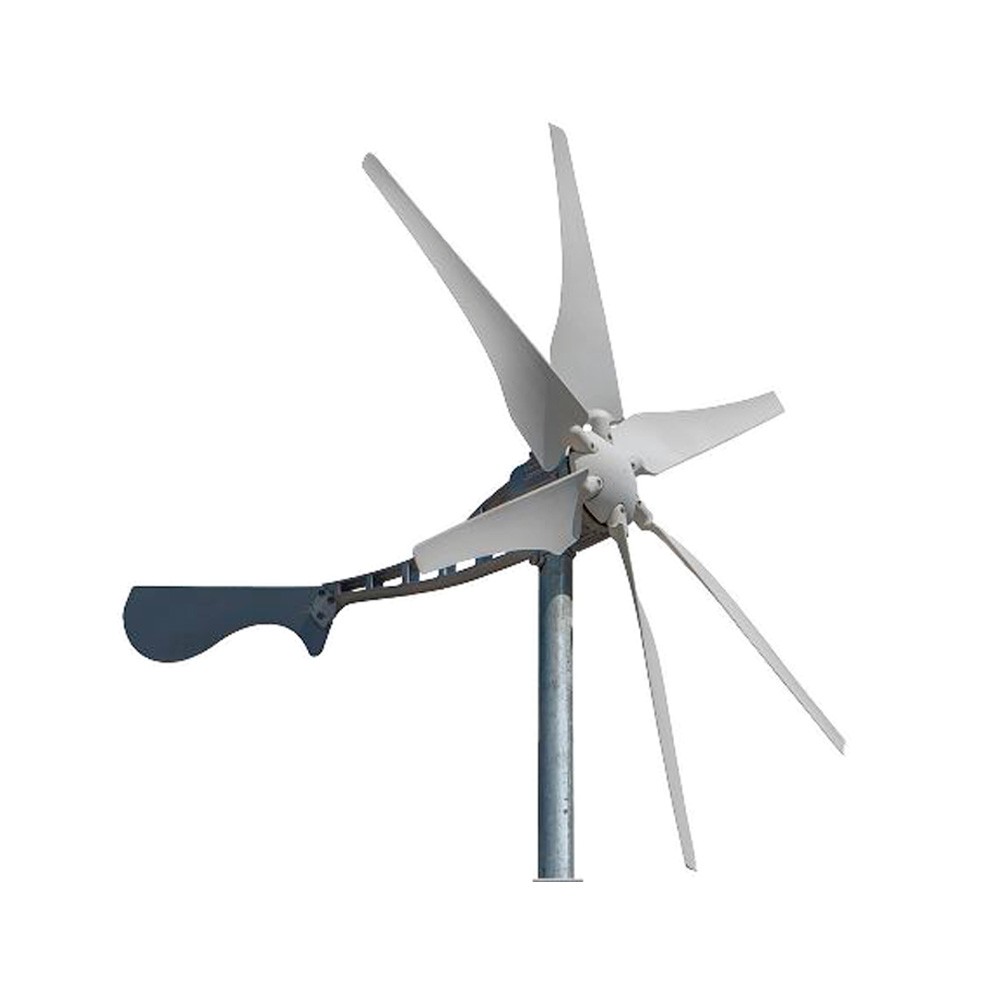

Tycon Power Systems TPW-400DT-12/24 Weatherproofing 400W 12V/24V Horizontal wind Turbine w/ 6 Blades

TPW-400DT-12/24

Tycon Power Systems
Tycon Power Systems TPW-400DT-12/24 Weatherproofing 400W 12V/24V Horizontal wind Turbine with 6 Blades Embedded Controller and dump load


Product Highlights
  • 12/24V Autodetect 400W BreezePro Wind Turbine with Embedded Controller and Integrated Dump Load
  • 6 Blade Design for Better Light Wind Performance, Industrial Strength, 112MPH Wind Survivability
  • Integrated Dump Load for Stable Battery Charging and Speed Control
  • Startup Wind Speed 2.1m/s (4.5mph); 10.5kg (23lb) Weight and 2 years Warranty from the manufacturer
  • Applications: Battery Charging Applications; Surveillance Cameras; Wireless Base Stations; Electric Gate Openers, Electric Fences; Street Lamps and Signs; Remote Cabins and buildings; Boats, RV’s and static caravans; Security Systems
  • Model#: TPW-400DT-12/24

    Sku: IT2883.2859.824249



    MSRP: $634.95

    In Stock

    Your Price: $634.95

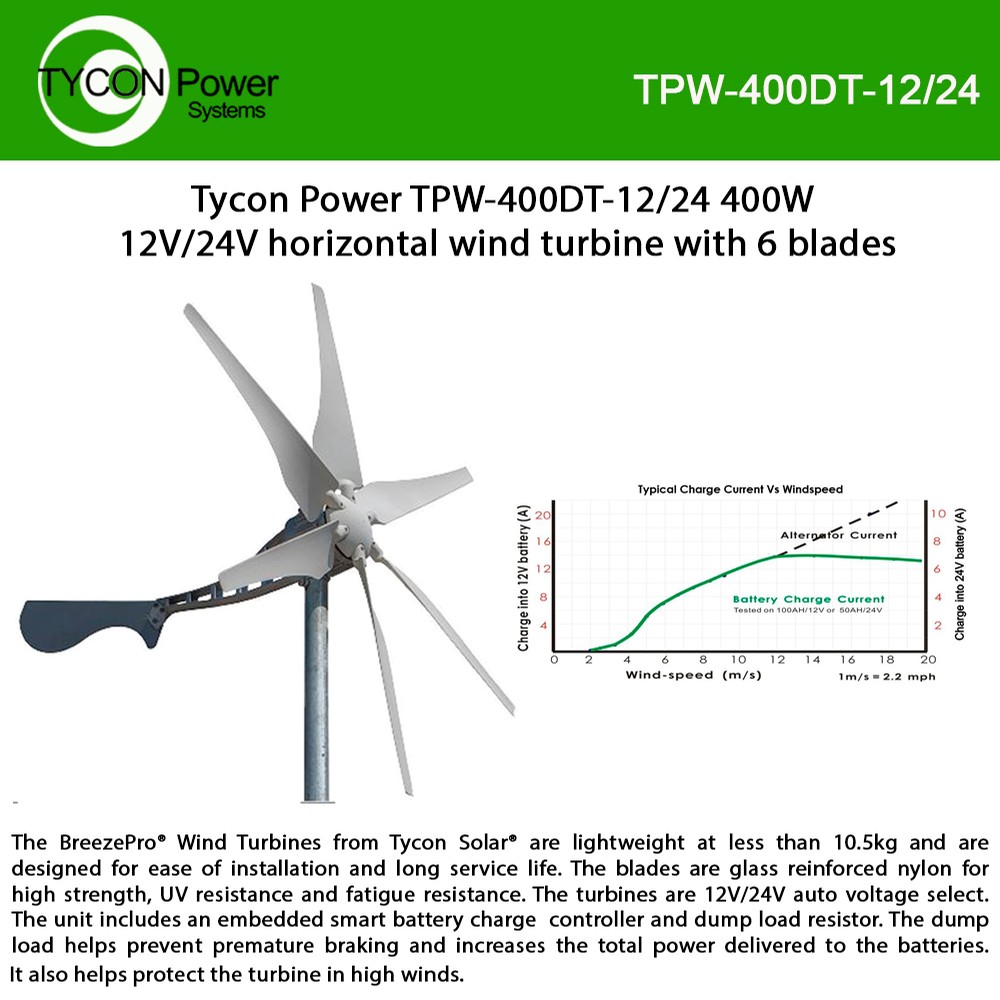

    The BreezePro® Wind Turbines from Tycon Solar® are lightweight at less than 10.5kg and are designed for ease of installation and long service life. The generator is a very low cogging force design for better performance in light winds and is packaged in a fully sealed die cast aluminum enclosure. There are no brushes to wear out or cause electrical noise and the bearings are sealed so the system is maintenance free.

    The blades are glass reinforced nylon for high strength, UV resistance and fatigue resistance. The turbines are 12V/24V auto voltage select. The unit includes an embedded smart battery charge controller and dump load resistor. The dump load helps prevent premature braking and increases the total power delivered to the batteries. It also helps protect the turbine in high winds. The entire blade assembly can be removed easily as 1 piece for hurricane protection. This also makes it easier and safer to install.

    The permanent magnets used are Neodymium Iron Boron (NdFeB) for higher power output. The mounting is to the inside of the top of a 41mm ID standard pole (1.5” Sched 40). The hardware used is stainless steel for corrosion protection. The units can be used in arrays of multiple turbines to increase available power.

    Applications

    • Battery Charging Applications
    • Surveillance Cameras
    • Wireless Base Stations
    • Electric Gate Openers, Electric Fences
    • Street Lamps and Signs
    • Remote Cabins and buildings
    • Boats, RV’s and static caravans
    • Security Systems
    • Startup Wind Speed 2.1m/s (4.5mph)
    • Power Rating 300W @ 12.5m/s
    • Max Power Output 400W
    • Battery Charge Voltage Range 12V = 14.7 to 15.2V ; 24V = 29.4 to 30.4V
    • Turbine Voltage Output 12V or 24V Auto Select Battery Voltage
    • Controller Operation 12V/24V
    • <14.5V or 29V 100% to battery
    • >14.5V or 29V Split Power to Battery and Dump Load
    • >15V or 30V 100% to Dump Load
    • Rotor Diameter 1.2m (3.9ft)
    • Blade Material Glass reinforced nylon
    • Body Die Cast Aluminum
    • Weatherproofing IP65 and Salt Mist Corrosion Protected
    • Over-speed Protection Electronic with integrated dump load
    • Survival Wind Speed 50m/s (112mph)
    • Noise Level (Measured at 3 meters) 50dBA Typ @ 450RPM
    • Wind Load Wind Surface Area 375 sq in, 30lbs @ 60MPH, 67lbs @ 90MPH
    • Certifications CE, RoHS
    • Mounting Pole Required 41mm (1.614”) ID (Example 1.5” Sched 40)
    • Operating Temperature -40C to +60C (-40F to + 140F)
    • Weight 10.5kg (23lb)
