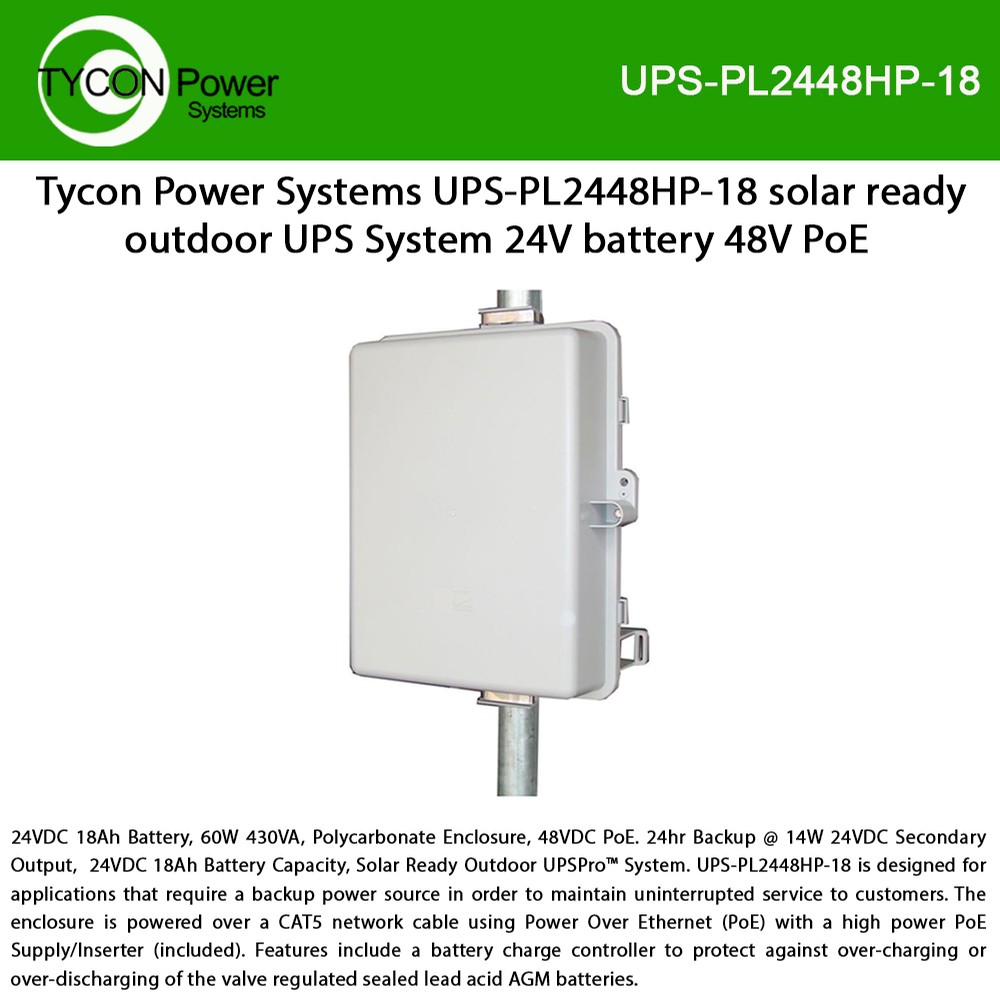

24VDC 18Ah Battery, 60W 430VA, Polycarbonate Enclosure, 48VDC PoE. 24hr Backup @ 14W 24VDC Secondary Output, 24VDC 18Ah Battery Capacity, Solar Ready Outdoor UPSPro™ System.

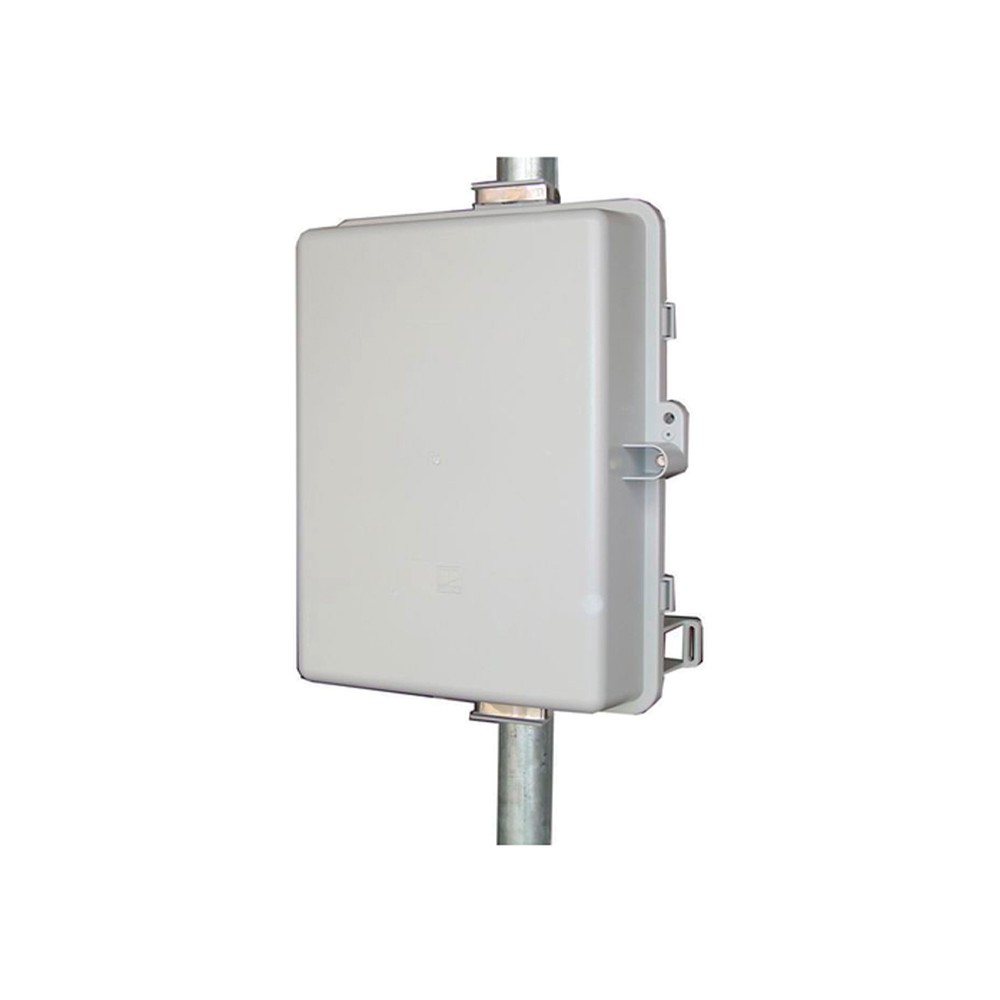

The UPSPro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable using Power Over Ethernet (PoE) with a high power PoE Supply/Inserter (included). Inside, the system has a RJ45 connector as DATA/PoE input and an RJ45 connector as a DATA/PoE output which gets connected to the customers POE device. There is also a regulated 24VDC output on a wire terminal connection. Each output is capable of 30W max for a total of 60W. The integrated controllers are Solar Ready and can be used with an external 24VDC solar panel up to 280W in addition to grid power supplied via PoE.
Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the PoE input and/or solar power. The solar power takes precedence over grid power when available.
Features include a battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
Wireless Base Stations and Clients
Wireless Bridge and Repeaters
Mission critical outdoor power
Backup Power Systems
POE Output Voltages Available (DC) 48V
Available Capacities (Amp Hours) 17Ah
Total Output Power 60W
Maximum POE Input Voltage 57V
Battery Voltage (DC) 24V
Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life 5 Years
Controller Type Dual Input Solar/POE, PWM, 24V 8A Max Solar Panel Size 270W
Overcharge Protection 28.6V
Over-discharge protection 22.0V
Over-discharge recovery voltage 24.0V
Controller Self Consumption <0.5W
Charging POE Power Supply 120/220VAC In ; 48VDC 60W Out
Enclosure Type Polycarbonate
Enclosure External Size 17.5 x 12.5 x 6” (445 x 318 x 152mm)
Enclosure Internal Size 14 x 10 x 5” (356 x 254 x 127mm)
Space available for Customer Electronics 3 x 5 x 3” (76 x 127 x 76mm)
Operating Temperature -30°C to +60°C (-22°F to 140°F)
System Weight (without batteries) 4lb (1.8kg)
Battery Weight (each) 5.5lb (2.5kg)
Manufacturer Warranty 3 Years
