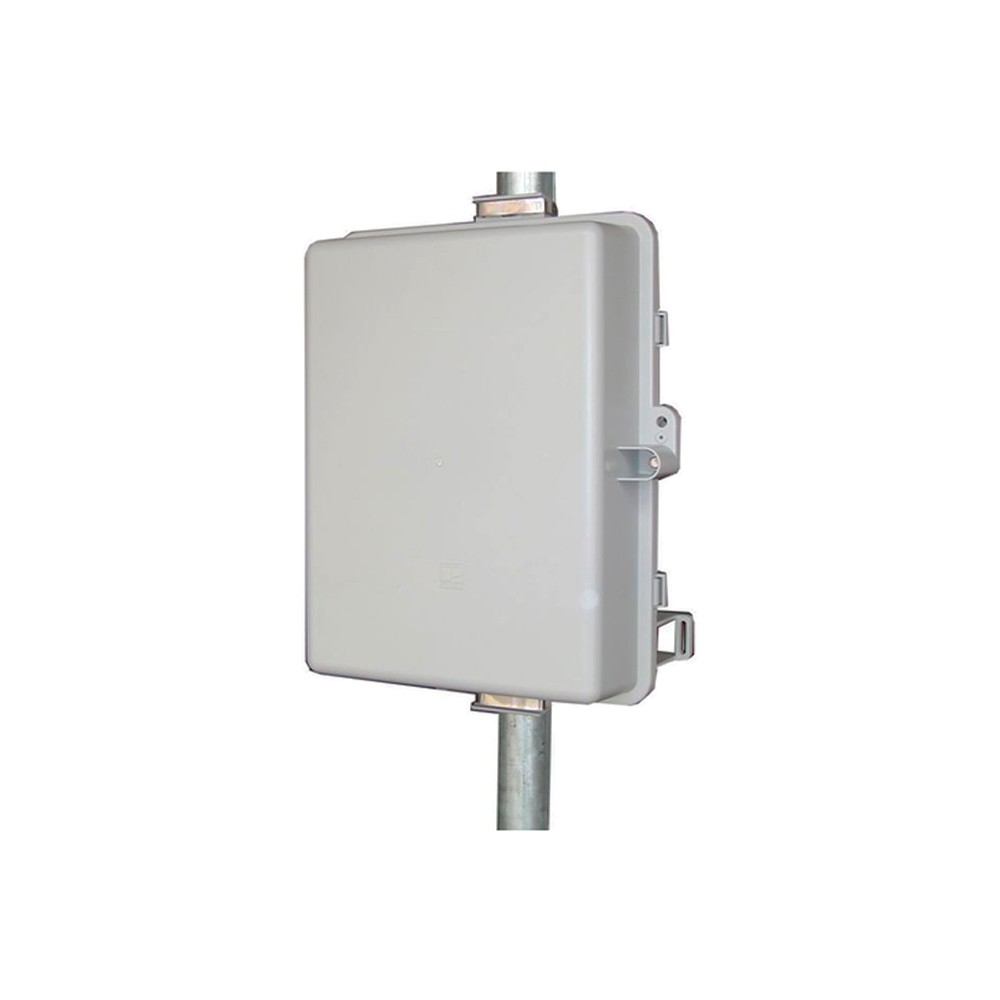

Tycon Power Systems UPS-PL2448HP-9 solar ready backup system w/ 24V 9Ah capacity battery and 48V PoE

UPS-PL2448HP-9

Tycon Power Systems
Tycon Power Systems UPS-PL2448HP-9 solar ready backup system with 24V 9Ah capacity battery and 48V PoE


Product Highlights
  • Weatherproof, UV resistant, outdoor enclosures
  • Powered over CAT5 cable using POE and/or Solar
  • 48VDC POE voltage, 24VDC Secondary wire terminal output
  • Provides 24hour battery backup @ 7W load or 12 hours @14W load
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Mission critical outdoor power; Backup Power Systems
  • Model#: UPS-PL2448HP-9

    Sku: IT2878.2834.815625



    MSRP: $354.95

    In Stock

    Your Price: $354.95




    24VDC 9Ah Battery, 60W 200VA, 48V PoE. 24hr Backup @ 7W, Solar Ready Outdoor UPS System


    The UPS Pro series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable using Power Over Ethernet (PoE) using a high power PoE Supply/Inserter (included). Inside the system has a RJ45 female connector as DATA/PoE input and an RJ45 Male connector as a DATA/PoE output which gets connected to the customers POE device.The integrated controllers are Solar Ready and can be used with an external solar panel up to 85W in addition to grid power supplied via PoE.

    Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the POE input and/or solar power.

    Features include a battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc.

    Applications

    • Wireless Base Stations and Clients
    • Surveillance Cameras
    • Wireless Bridge and Repeaters
    • Remote Sensors
    • Mission critical outdoor power
    • Backup Power Systems
    • POE Output Voltages Available (DC) 48V
    • Available Capacities (Amp Hours) 8.5Ah
    • Total Output Power 60W
    • Maximum POE Input Voltage 57V
    • Battery Voltage (DC) 24V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type Dual Input Solar/POE, PWM, 24V 8A Max Solar Panel Size 270W
    • Overcharge Protection 28.6V
    • Over-discharge protection 22.0V
    • Over-discharge recovery voltage 24.0V
    • Controller Self Consumption <0.5W
    • Charging POE Power Supply 120/220VAC In ; 48VDC 60W Out
    • Enclosure Type Polycarbonate
    • Enclosure External Size 17.5 x 12.5 x 6” (445 x 318 x 152mm)
    • Enclosure Internal Size 14 x 10 x 5” (356 x 254 x 127mm)
    • Space available for Customer Electronics 3 x 5 x 3” (76 x 127 x 76mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (without batteries) 4lb (1.8kg)
    • Battery Weight (each) 5.5lb (2.5kg)
    • Manufacturer Warranty 3 Years
