Tycon Power EZBR-Ultra5 wireless bridge plug and play 5GHZ 100MBPS and 250mW

EZBR-Ultra5

Tycon Power Systems
Tycon Power EZBR-Ultra5 wireless bridge plug and play 5GHZ 100MBPS and 250mW


Product Highlights
  • The EZ-Bridge Ultra5 is a long range high capacity 100Mbps+ and high power 250mW outdoor wireless bridge system operating in the 5GHz unlicensed spectrum
  • The complete system allows for ultra high bandwidth connections between 2 buildings up to 4 miles apart with good line of sight
  • EZ-Bridge Ultra5 100MB 4Mile 5GHz Secure Point to Point Bridge Pair, Includes 75' outdoor Rated Shielded CAT5 Cables and 24V Passive PoE Inserters
  • The EZ-Bridge Ultra5 creates a transparent bridge between 2 sides and passes all network traffic including VPN and DHCP
  • The system supports 802.11n TDMA and 802.11a OFDM for backward compatibility. The advanced MIMO antenna system offers 16dBi of gain in a compact and visually pleasing package
  • Model#: EZBR-Ultra5

    Sku: IT2876.1490.428524



    MSRP: $519.99

    In Stock

    Your Price: $519.99




    The EZ-Bridge® Ultra5 is a high capacity 100Mbps and high power 250mW outdoor wireless bridge system operating in the 5GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between 2 buildings up to 4 miles or more apart with good line of sight.

    The EZ-Bridge® Ultra5 creates a transparent bridge between 2 sides and passes all network traffic including VPN and DHCP. You can think of it like connecting a CAT5 Ethernet cable between the 2 points.

    It is the perfect high capacity plug and play solution for connecting the networks in two or more buildings, internet access sharing, remote video surveillance or remote network access. Multiple EZ-Bridge® Ultra5 units can be connected in a mesh configuration to allow interconnecting more than two sites.

    The system supports 802.11n TDMA and 802.11a OFDM for backward compatibility. The advanced MIMO antenna system offers 22dBi of gain in a compact and visually pleasing package. The antenna also offers great front to back performance which helps reduce interference. A snap-on radome is included to protect the antenna from snow, ice, hail and crazy birds who sometimes like to nest in antennas.

    The antenna can be installed with Vertical Polarization or Horizontal Polarization, depending on customer preference. The corrosion resistant bracket system allows mounting to a pole with up to 2.25" diameter or wall mounting using the included wall mount brackets. The bracket provides +/- 20 degrees vertical tilt and unlimited horizontal adjustment. The system comes with 24V Power over Ethernet power inserters and 2 rolls of shielded and outdoor rated 75' long CAT5 cable assemblies. The shielded outdoor cable helps to protect against EMI from lightning and ESD from wind.

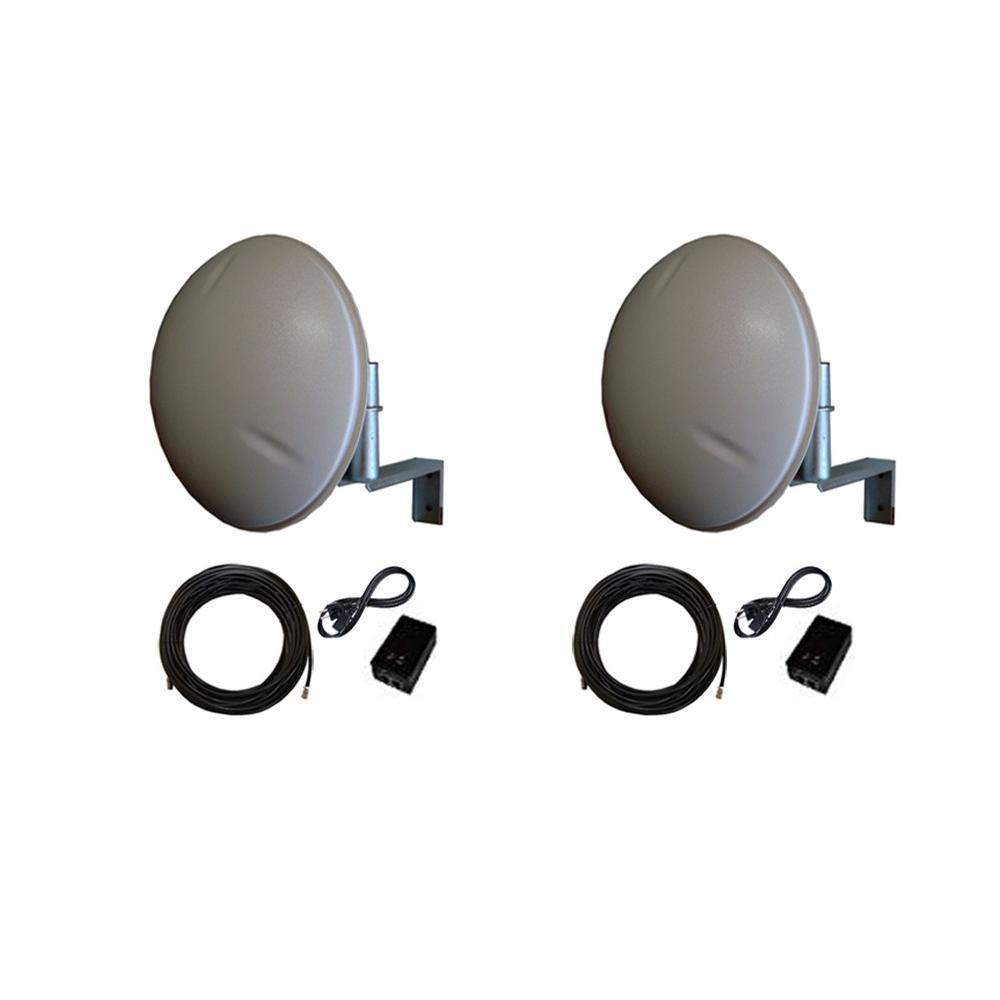

    The EZ-Bridge® Ultra5 comes complete with all the electronics that are needed for a point to point wireless network bridge installation; including two powerful 22dBi 802.11a/n MIMO antennas with built-in high power electronics, Bracket Kits which accommodate pole or wall mounting, 24V PoE (Power over Ethernet) power inserters and two 75' Shielded Outdoor Rated CAT5 cable assemblies.

    Operation Modes

    • Point to Point Bridge
    • Access Point
    • Client Bridge or Router
    • Data Rates: 6-150 Mbps
    • Operating Distance: up to 12miles line of sight
    • Standards IEEE802.11n, 802.11a, 802.3, 802.3u
    • Power Supply: 100-240VAC 50/60Hz
    • EZ-Bridge® Ultra5: 12VDC to 24VDC
    • Avg Power Consumption: 5.5W
    • RF Frequency Band 5180 ~ 5825 MHz
    • Available Transmit Power 802.11a/n: 4 to 23dBm
    • Modulation Technology 802.11a: OFDM / 802.11n: TDMA
    • Antenna 5GHz 22dBi Dish Antenna, 8 deg AZ and 8 deg EL Beamwidth, >23dB front to back
    • Operating Channels 5GHz 12 channels supported at 40MHz width
    • Receive Sensitivity (Typical) 802.11a/n: -96 +/-2dB @ 14Mbps / 802.11n: -75 +/-2dB @ 300Mbps
    • Antenna Physical Dimensions (diameter x D) 326mm dia x 254mm depth (12.84” dia x 10”)
    • Complete System Weight 8.6 kg (19 lbs)
    • Processor: Atheros MIPS 24KC 400Mhz
    • Interface: 10/100Mbps RJ-45 LAN Port
