Tycon Power Systems TP-BC24-300 24V 210W Smart Lead Acid Battery Charger Controller

Product Highlights
  • 24V 210W Smart Lead Acid Battery Charger
  • 120/240VAC Switchable Input
  • 28.8V 7.5A Charge, 26.4V Float
  • Seamless Switchover From AC to Battery Power when AC Power Fails
  • Applications: Wireless Base Stations, Cellular Base Stations; Surveillance Systems; Battery Backup Systems
  • Model#: TP-BC24-300

    Sku: IT2875

    MSRP: $304.99

    Out of stock

    The TP-BC series of smart battery chargers provide up to 210W of total power. Part of the power is allocated to the regulated load output and remaining power is allocated to battery charging. The smart battery charger is compatible with GEL/AGM type sealed lead acid batteries and also WET type lead acid batteries (like car batteries).

    The load output is regulated. Also the load output will turn off when the battery voltage is low to prevent over discharge of the batteries which can shorten the useable life of the batteries. Load output will turn back on automatically when batteries have sufficient charge. The charger auto-recovers from a power failure so no user action is necessary.

    The charger has various protections for short circuit, overvoltage protection, overcurrent and reverse battery. It operates over a wide temperature range making it suitable for industrial applications.

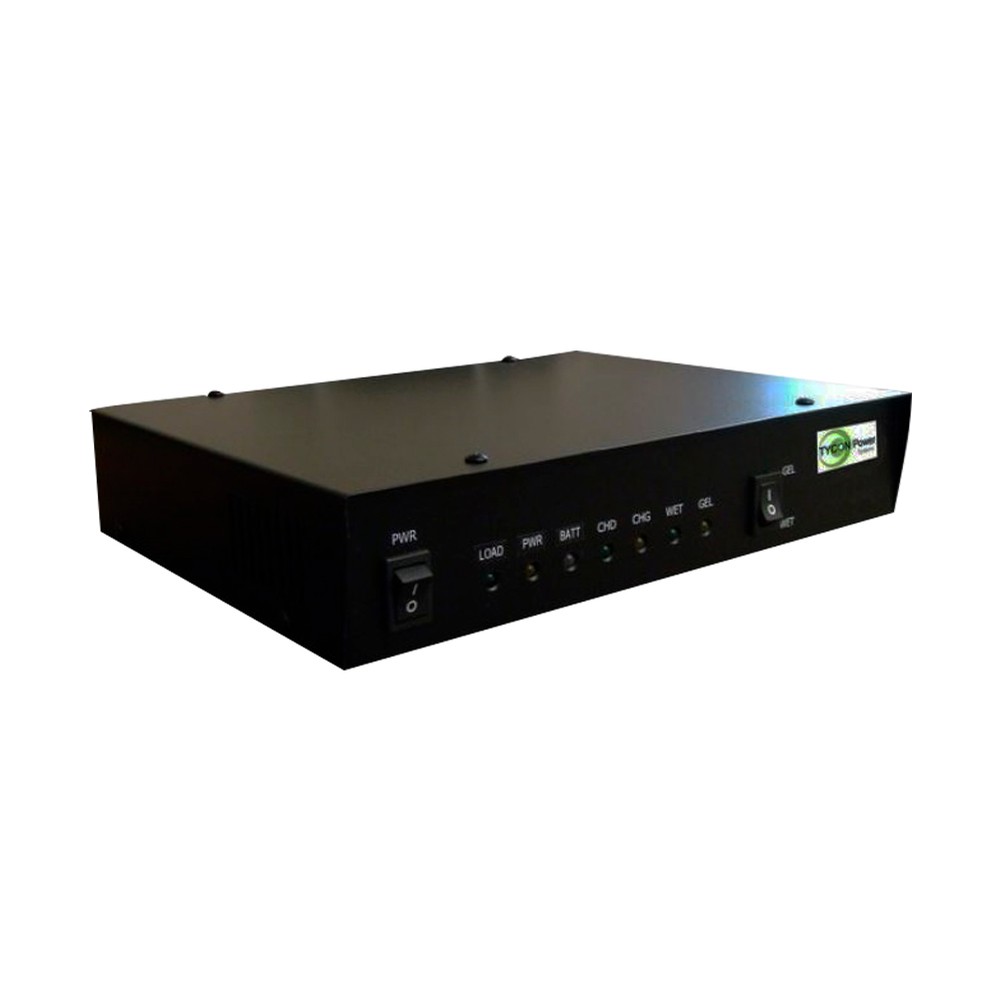

    There are various LEDS on the front panel to see status-at-a-glance of the Load Output, Charging Condition and AC Power Condition.

    A solar panel and solar charge controller can be added to the system if supplemental power from solar is desired. A Wind Turbine can be added if wind power is available.

    Note: The battery charger will not work without a battery connected.


    • Wireless Base Stations, Cellular Base Stations
    • Surveillance Systems
    • Battery Backup Systems
    • Total Power Available (for Load and Battery charging) 210W
    • Nominal Battery Voltage 24VDC
    • Load Output Min Current 1A
    • Load Output Max Current 8A
    • Battery Charge Max Current 7.5A (with zero load. If load current is 5A then battery charge current is 3.75A.)
    • Suggested Max Load ~5A (120W)
    • Battery Charger Voltage WET Equalize = 28.8V, Float = 26.4V - GEL Equalize = 28.4V, Float = 27V
    • Overdischarge Protection 21.5V Load off / 25.2V Load on
    • Load and Batt Connections Screw Wire Terminal, 10 AWG MAXIMUM
    • AC Power Input (+-10%) Selector Switch 120VAC / 240VAC , 50/60Hz
    • AC Input Current 3.5A @ 115VAC / 1.8A @ 240VAC
    • Fuse 250V 6A Internal SloBlow (Littlefuse #021306.3)
    • Operating Temperature -20 to +60C (-4 to +140°F)
    • Operating Humidity (RH) Up to 90% (non condensing)
    • Cooling Temperature Controlled Fan
    • Dimensions (LxWxH) 250 x 185 x 55mm (9.8 x 7.3 x 2.2”)
    • Weight 2.4kg (5.2lb)
    • Manufacturer Warranty 3 Years
