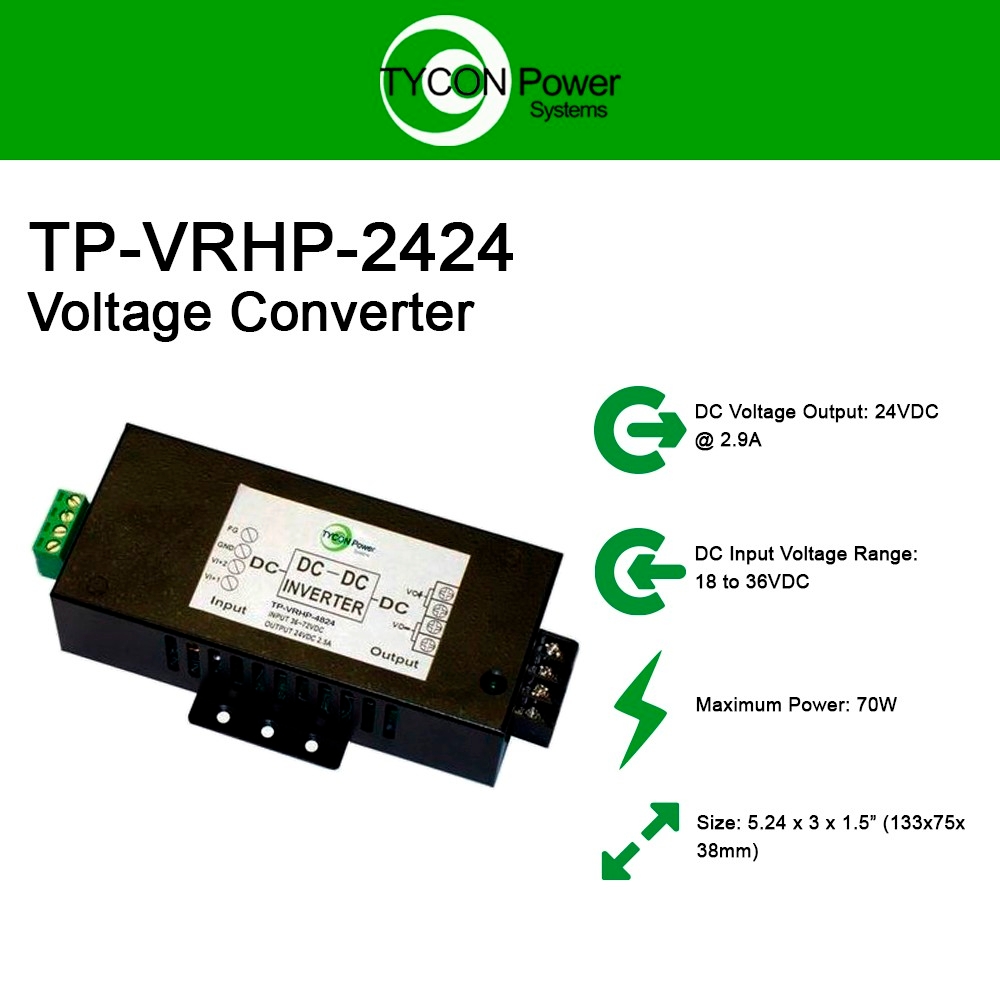

Tycon Power Systems TP-VRHP-2424 Voltage Converter 18-36VDC In 24V 2.9A Out 70W

Product Highlights

Tycon Power Systems TP-VRHP-2424 70W 18-36VDC to 24VDC Voltage Converter/RegulatorThe TP-VRHP-2424 is a 70W voltage converter/regulator

It accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 24VDC @ 2.9A 70W

It's perfect for providing stable regulated 24VDC voltage from 24VDC battery banks

Input and outputs are non-isolated wire terminals for wire up to 12AWG. It comes with DIN rail adapters for DIN rail mounting

Applications: Security Systems, Remote Power Systems, Telecom Applications, Wireless Base Stations

Model#: TP-VRHP-2424

Sku: IT2872

MSRP: $57.99

Tycon Power Systems TP-VRHP-2424 70W 18-36VDC to 24VDC Voltage Converter/RegulatorThe TP-VRHP-2424 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 24VDC @ 2.9A 70W. These units are perfect for providing stable regulated 24VDC voltage from 24VDC battery banks. Input and outputs are non-isolated wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.

DC Input Voltage Range 18 to 36VDC
DC Voltage Output 24VDC @ 2.9A
Maximum Power 70W
Input / Output Isolation Non-Isolated
Efficiency >85%
Load / Line Reg 5% / 1%
Ripple / Noise 2% / 5%
Isolation 1500VDC Min. / 100M Ohms Min
Wire Gauge 12AWG Max
Protections Short Circuit, Overvoltage, Overload
Operating Temp -22°F to 149°F (-30°C to +65°C)
Operating Humidity 0 to 90% RH
Size 5.24 x 3 x 1.5” (133x75x38mm)
Weight 10.5oz (298g)
Manufacturer Warranty 3 Years
