TP-VR-2405

Tycon Power Systems

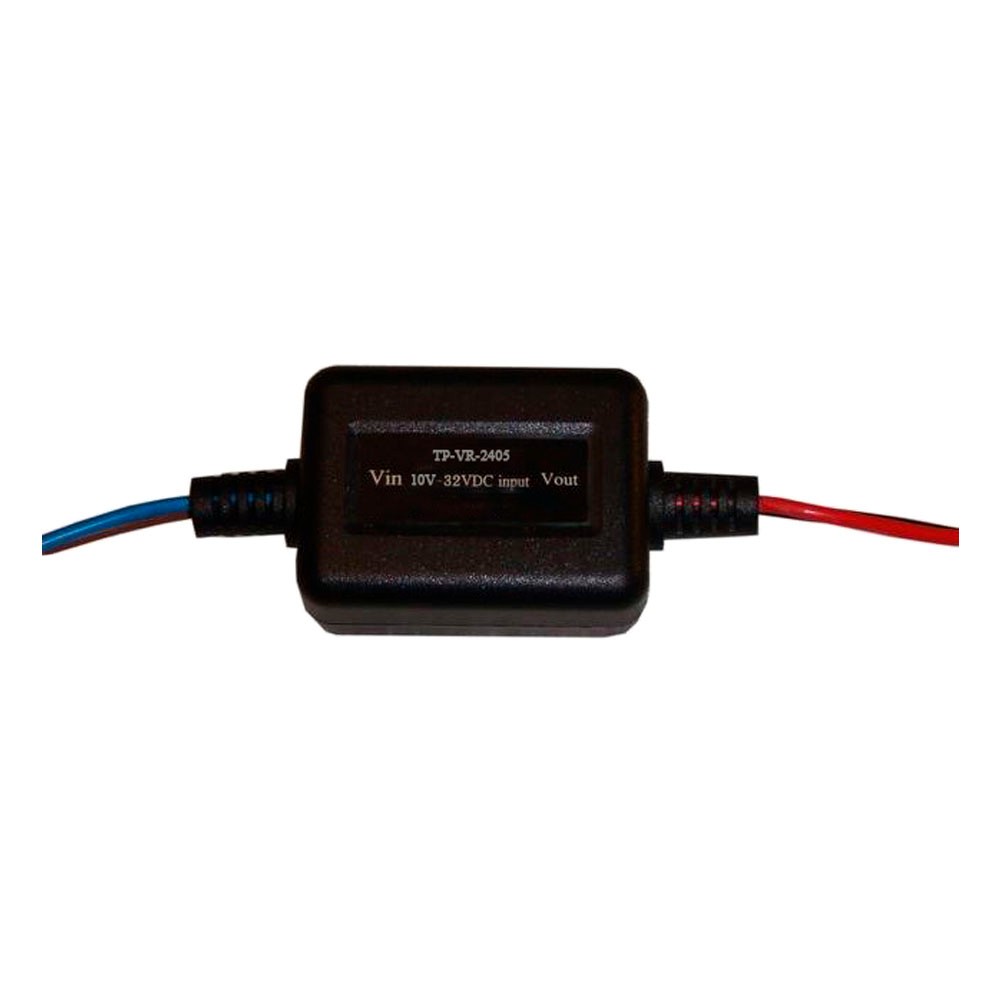

Tycon Power Systems TP-VR-2405 Voltage Regulator 10-32VDC In 5VDC 3A Regulated Out


Product Highlights
  • TP-VR-2405 sealed DC to DC regulator offers high output regulation in a compact sealed enclosure
  • 10-32VDC Input, 5V 3A Regulated out Industrial Strength Voltage Regulator
  • Wide Operating Temperature -40 to +65C
  • Input/out Cable 2 wire 12 inches 18AWG
  • Applications: Security Systems; Remote Power Systems; Marine Applications; Wireless Base Stations

    • Model#: TP-VR-2405

    Sku: IT2870



    MSRP: $32.99


    Out of stock

    The TP-VR series of sealed DC to DC regulators offer high output regulation in a compact sealed enclosure. They have 12" long 18AWG leads on input and output for universal connectivity.

    • DC Input Voltage Range 10V to 32VDC
    • DC Voltage Output 5VDC @ 3A
    • Maximum Power Dissipation 15W
    • Efficiency 80%
    • Load / Line Regulation 5% / 1%
    • Ripple / Noise 2% / 5%
    • Wire Gauge 18AWG
    • Lead Wire Length 12 inches
    • Operating Temperature -40°F to 149°F (-40°C to +65°C)
    • Size 2.75 x 1.25 x 1” (70x32x25mm)
    • Weight 1.5oz (43g)
    • Manufacturer Warranty 3 Years
