PS48V-2.5

Tycon Power Systems

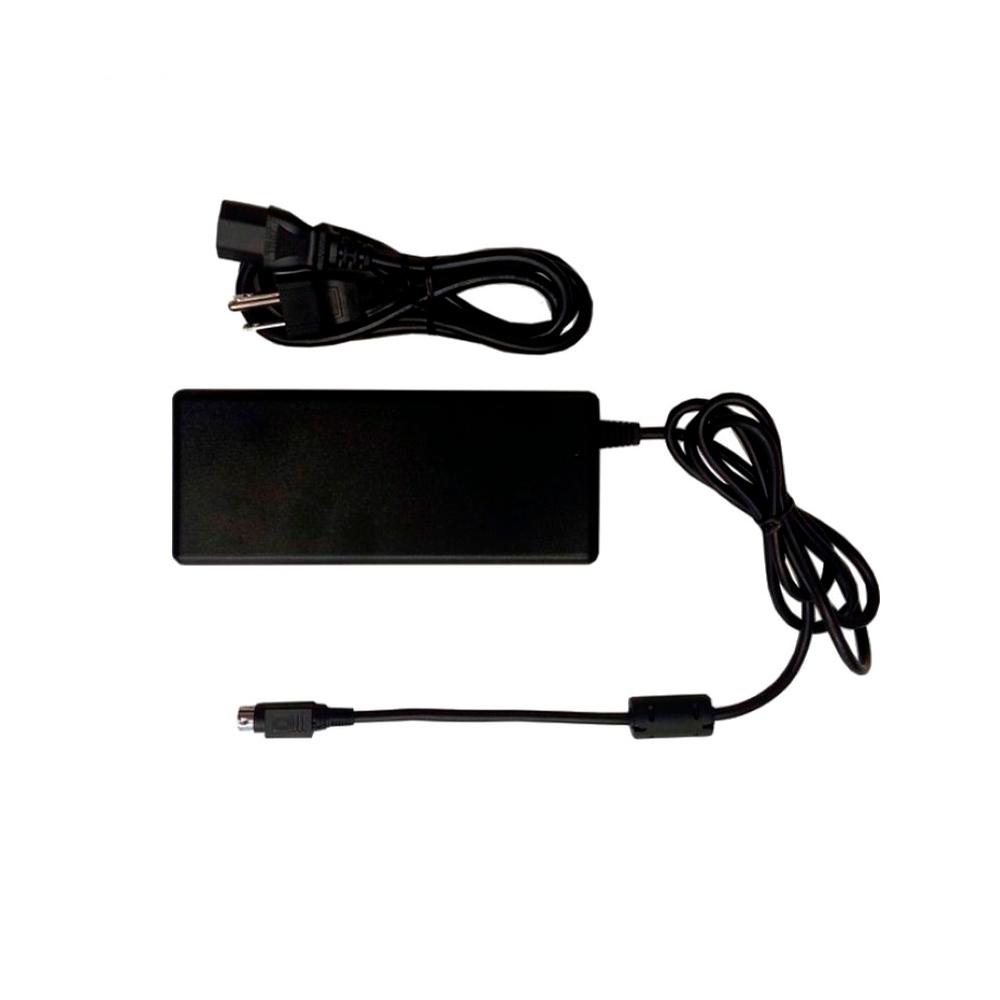

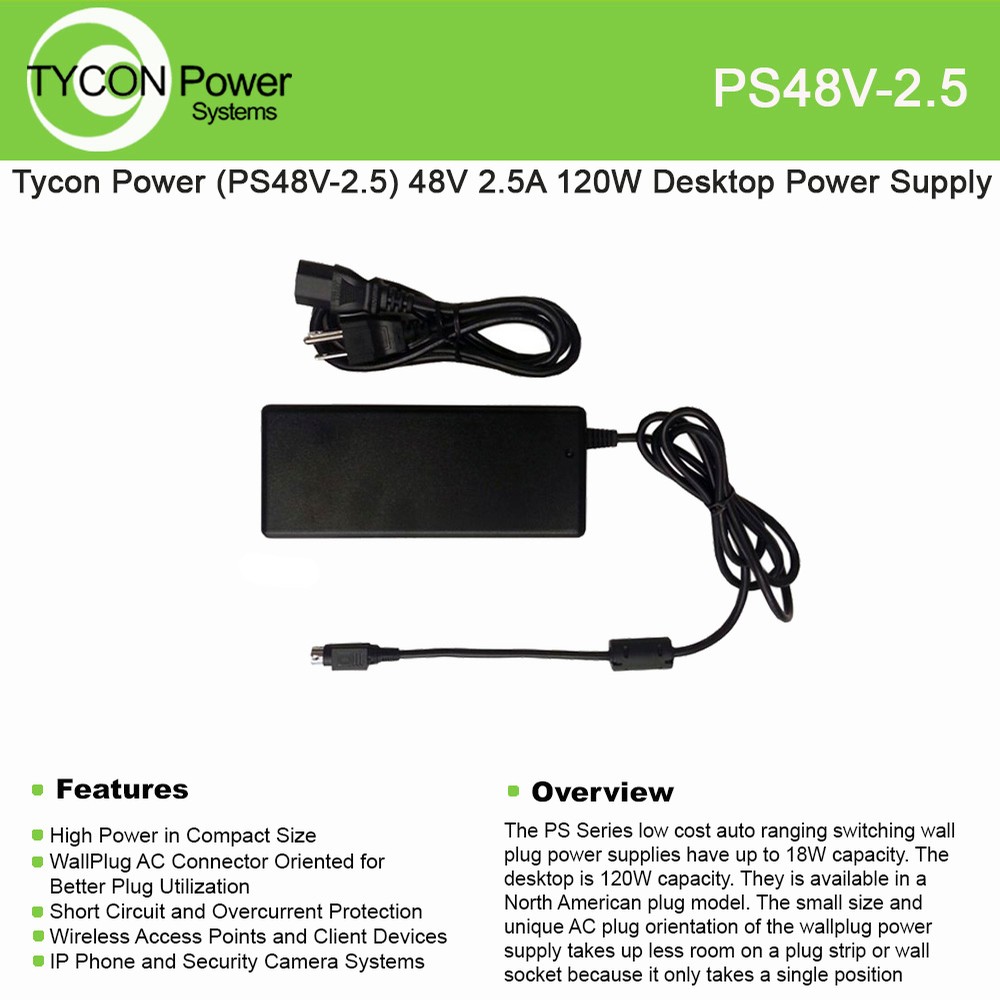

Tycon Power PS48V-2.5 Desktop Power Supply with 48V 2.5A and 120W



Product Highlights
  • This high quality power supply is perfectly suited for any application that needs clean reliable power
  • It supplies up to 120W of DC power
  • WallPlug AC Connector Oriented for Better Plug Utilization
  • 1.15m DC Cable with 5.5/2.1 DC Barrel Plug
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: PS48V-2.5

    Sku: IT2869



    MSRP: $42.99


    Out of stock

    The PS Series low cost auto ranging switching wall plug power supplies have up to 18W capacity. The desktop are 60W or 120W capacity. They are available in a North American plug or European Plug model.

    The small size and unique AC plug orientation of the wallplug power supply takes up less room on a plug strip or wall socket because it only takes a single position. Supplies are certified by UL, CE & comply with RoHS requirements. The 15W to 60W come with a 5.5/2.1mm DC Barrel Connector with center positive. The 120W comes with a locking 4pin Mini DIN connector. The Pinout of the DIN Connector is as follows:(-,-,+,+) (Note: Mating 4P Mini Power DIN Connector CUI Inc. Model:PD-40)

    Applications:

    • Wireless Access Points and Client Devices;
    • IP Phone and Security Camera Systems.
    • Input Operating Range 90-264VAC 47/63Hz
    • Maximum Power 120W
    • Input In-rush Current 30A Max
    • Input Current 1.8A Max
    • Static Power Consumption 0.6W Max
    • Output Voltage 48.3 – 48.5 VDC
    • Continuous Load Current 2.5 A
    • Ripple and Noise 200mVp-p Max
    • Operating Temp -10°C to 40°C (14°F to 104°F)
    • DC Plug / Cable Length 4P Mini DIN / 18AWG 1.2m (48”)
    • Case Size 168 x 67 x 33mm (6.6 x 2.6 x 1.3”)
    • Weight 480 g (17oz)
    • Manufacturer Warranty 3 Years
