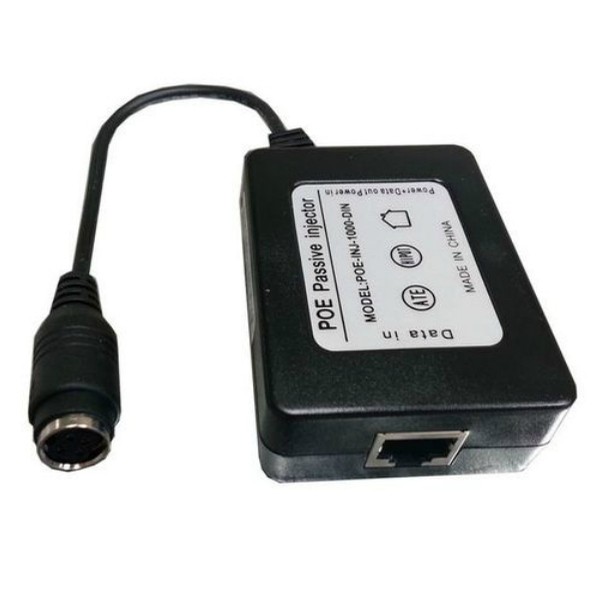

The POE-INJ-1000-DIN is a shielded passive power over Ethernet inserter that is compatible with data speeds up to 1 gigabit.
The DC connector is a locking mini DIN type power connector.
The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device.
Power is supplied on all 8 Ethernet pins 1,2,4,5(+) and 3,6,7,8(-).
Compatible with Ubiquiti airFiber™ antennas and various high definition PTZ cameras.
High Power Shielded Design
6" 22AWG DC Cable
Locking Mini DIN Power Connector
5VDC to 58VDC Power Over Ethernet
Power On LED indicator
