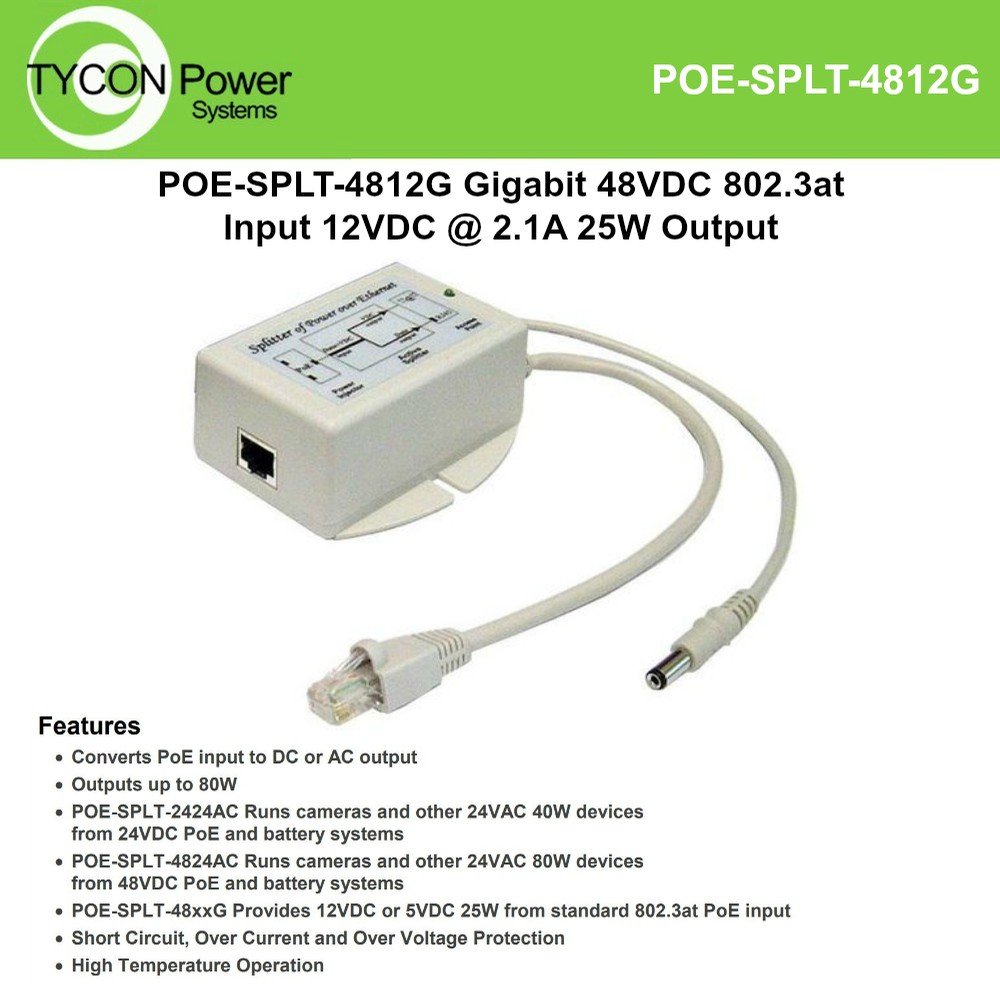

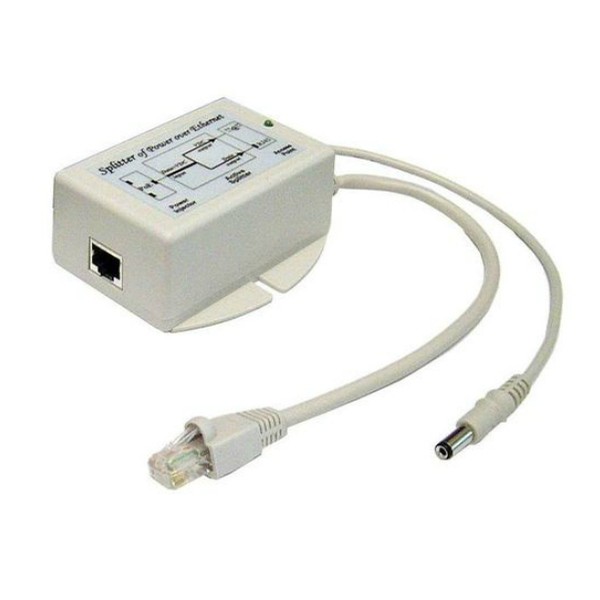

Tycon Power POE-SPLT-4812G active splitter 802.3af/at PoE to 12VDC 25W output

POE-SPLT-4812G

Tycon Power Systems
Tycon Power POE-SPLT-4812G active splitter 802.3af/at PoE to 12VDC 25W output

Model#: POE-SPLT-4812G

Sku: IT2861.890.254629



MSRP: $74.95

In Stock

Your Price: $74.95




POE-SPLT-4812G is a Gigabit splitter to power a non POE device using POE. It has a POE input compatible with 802.3af and 802.3at POE standards. The 25W DC output is via a standard 5.5mm/2.1mm barrel connector on a 14in cable. Data output is thru a 14in CAT5 cable terminated with an RJ45 connector.

These POE splitters are the perfect solution for running 12VDC devices like cameras from a 802.3af or 802.3at POE source. Wide -20 to +60C temperature range enables outdoor applications when mounted in weatherproof enclosures.

Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.

  • Output Voltage 12VDC
  • Output Current 2.1A @ 12VDC
  • Output Power 25W
  • Output Connector 5.5mm / 2.1mm Barrel Connector
  • Output Cable Length 355mm (14”)
  • POE Input (RJ45) 802.3at 48VDC (4 pairs)
  • Ethernet Speed 10/100/1000MB
  • Isolation Voltage 1500VDC
  • Isolation Resistance 100M Ohms Minimum
  • Operating Temperature -40 to + 70°C (-40 to 158°F)
  • 85 x 75 x 36mm (3.3 x 3 x 1.4in)
  • 150g (5.3oz)
