POE-SPLT-4824AC

Tycon Power Systems

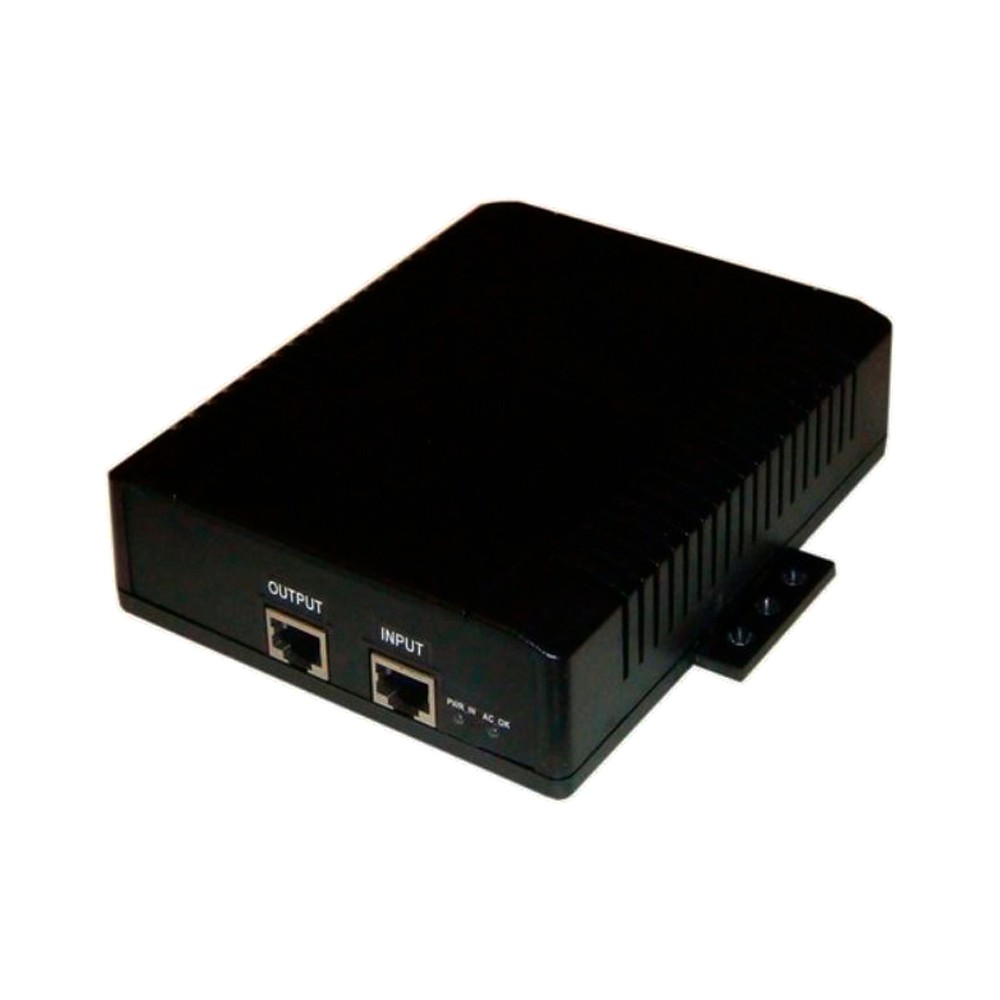

Tycon Power POE-SPLT-4824AC Active Splitter /Voltage Converter 56V PoE Input to 24VAC 80W Output



Product Highlights
  • The POE-SPLT Active splitters are unique Power over Ethernet adapters which converts a DC PoE input voltage to AC or DC regulated output voltages
  • The output is provided on a standard 5.5mm/2.1mm barrel connector on a 14” cable or in the case of the 80W unit, on a wire terminal connector
  • Ethernet speeds of 10/100MB and 10/100/1000MB are available. Inputs and outputs are isolated
  • POE-SPLT-4824AC Runs cameras and other 24VAC 80W devices from 48VDC PoE and battery systems
  • Output Voltage 24VAC, Output Current 3.34A @24VAC, Output Power 80W, POE Input (RJ45) 40 - 60VDC (4 pairs)
  • Model#: POE-SPLT-4824AC

    Sku: IT2860



    MSRP: $132.99


    Out of stock

    The POE-SPLT Active splitters are unique Power over Ethernet adapters which converts a DC PoE input voltage to AC or DC regulated output voltages. The output is provided on a standard 5.5mm/2.1mm barrel connector on a 14” cable or in the case of the 80W unit, on a wire terminal connector. Ethernet speeds of 10/100MB and 10/100/1000MB are available. Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.



    • Output Voltage 24VAC
    • Output Current 3.34A @24VAC
    • Output Power 80W
    • Output Connector Wire Terminal (12AWG)
    • Output Cable Length n/a
    • Load Regulation 5%
    • Line Regulation 1%
    • POE Input (RJ45) 40 - 60VDC (4 pairs)
    • Ethernet Speed 10/100/1000MB
    • Efficiency 80% Min
    • EMC Standards FCC Class B NE55022 Class B, CE
    • Isolation Voltage 1500VDC
    • Isolation Resistance 100M Ohms Minimum
    • Operating Temperature -20 to +60°C (-4 to +140°F)
    • Operating Humidity (RH) 5% - 90% non condensing
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 150 x 140 x 40mm (5.9 x 5.5 x 1.6”)
    • Weight 350g (12oz)
    • Manufacturer Warranty 3 Years
