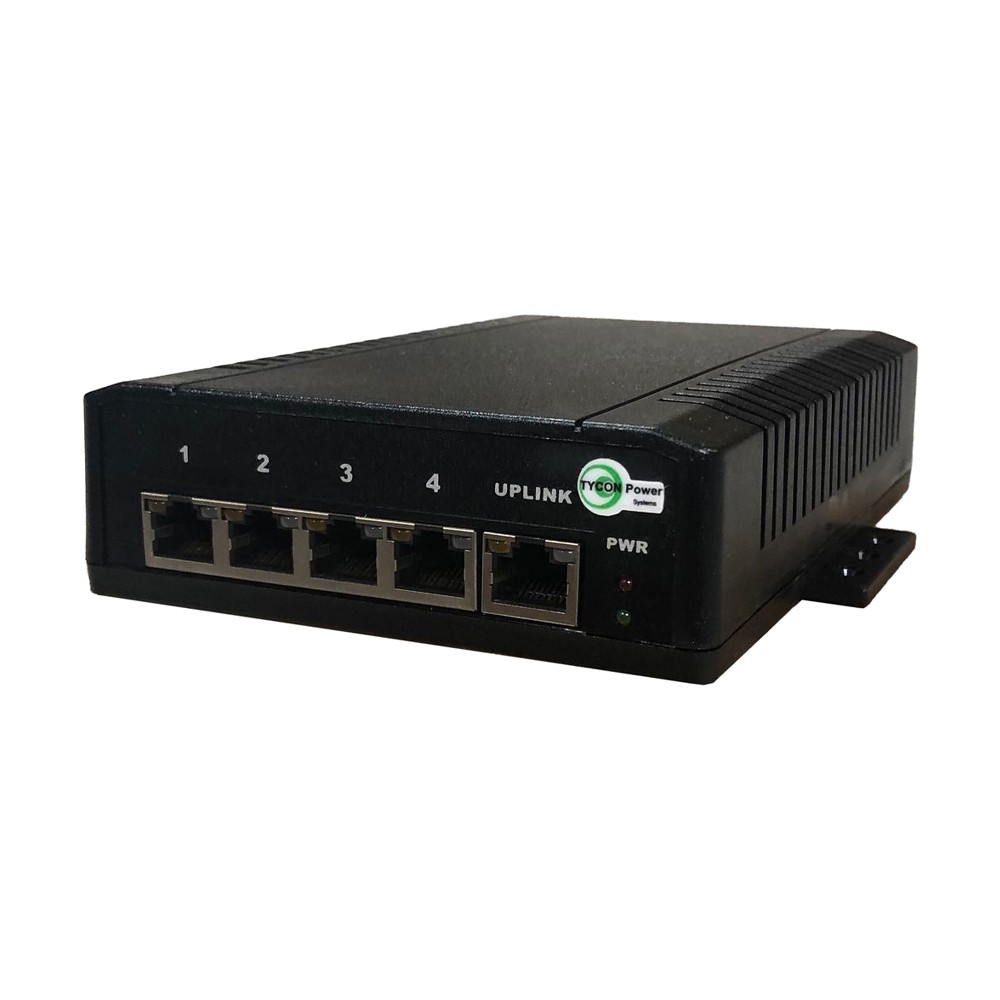

Tycon Power TP-SW5G-D+ 5 Port 140W Gigabit 802.3at PoE Switch with 1x 802.3bt PoE input and 4x 802.3a

TP-SW5G-D

Tycon Power Systems
Tycon Power TP-SW5G-D+ 5 Port 140W Gigabit 802.3at PoE Switch with 1x 802.3bt PoE input and 4x 802.3a


Product Highlights
  • The TP-SW5G-D+ (formerly part number TP-SW5GD-BT) Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon is a fully automatic high speed Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3at PoE outputs
  • Ports 1-4 are 802.3at 35W PoE Out. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 100W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable
  • The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total distance is realistic
  • The switch can accept power via three different interfaces: Wire Terminal Connector, 4 pin Mini DIN connector or via 802.3at/bt PoE input to Uplink Port 5
  • Applications: Power 4 802.3at devices from an 802.3bt PoE Input, Remote or Local Power for Cameras and Wireless Radios, Functions as Ethernet/PoE repeater
  • Model#: TP-SW5G-D

    Sku: IT2856.883.252184



    MSRP: $226.99

    In Stock

    Your Price: $198.95




    TP-SW5G-D is now TP-SW5G-D+

    The TP-SW5G-D+ (formerly part number TP-SW5GD-BT) Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon is a fully automatic high speed Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3at PoE outputs. Ports 1-4 are 802.3at 35W PoE Out. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 100W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total distance is realistic.

    The switch can accept power via three different interfaces: Wire Terminal Connector, 4 pin Mini DIN connector or via 802.3at/bt PoE input to Uplink Port 5. Two different power inputs can be used for redundancy. The higher voltage takes priority.

    The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.

    Applications
    • Power 4 802.3at devices from an 802.3bt PoE Input
    • Remote or Local Power for Cameras and Wireless Radios
    • Functions as Ethernet/PoE repeater

    • Ports Port 1-4: 802.3at Mode B (4,5 +; 7,8 -)
    • Port 5: UPLINK 802.3bt Compatible PoE Input (also accepts 802.3at or Passive PoE)
    • Transmission Speed 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation
    • Data/PoE Connections Shielded RJ45, Grounded to FG connection
    • Input Voltage Vin 44VDC to 57VDC on Wire Terminal or 4 Pin DIN or 802.3bt PoE on port 5
    • PoE Protections Over Temperature, Over Current, Short Circuit
    • Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
    • IEC61000-4-4 (EFT) 40A (5/50ns)
    • Self Consumption < 3 Watt Typical
    • Switch Technology Store and Forward, automatic MDI/MDI-X crossover
    • Protocol CSMA/CD
    • Flow Control IEEE802.3x(full-duplex), Back Pressure(half-duplex)
    • Data Transmission Rate 1488000pps , 148800pps, 14880pps ; Automatic speed and duplex sensing
    • Address Table 2K MAC, self-learning
    • Operating Temp -30 to +70°C (-22 to 158°F)
    • Operating Humidity (RH) 5% - 90% (non condensing)
    • Storage Temperature -40 to +85°C (-40 to +185°F)
    • Dimensions (LxWxH) 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
    • Weight 318g (11oz)
    • Manufacturer Warranty 3 Years
