Tycon Power TP-SW8NC-OUT48 Outdoor Switch with 8 port 48VDC Passive PoE 10/100


Tycon Power Systems
Tycon Power Systems TP-SW8NC-OUT48 Outdoor Switch with 8 port 48VDC Passive PoE 10/100 and PoE Supply Included

Product Highlights
  • 8 Port 10/100 Unmanaged Layer 2 outdoor Weatherproof 48V Passive PoE Switch
  • Power Remotely Over PoE to the Uplink Port
  • Includes 48V 120W PoE Inserter

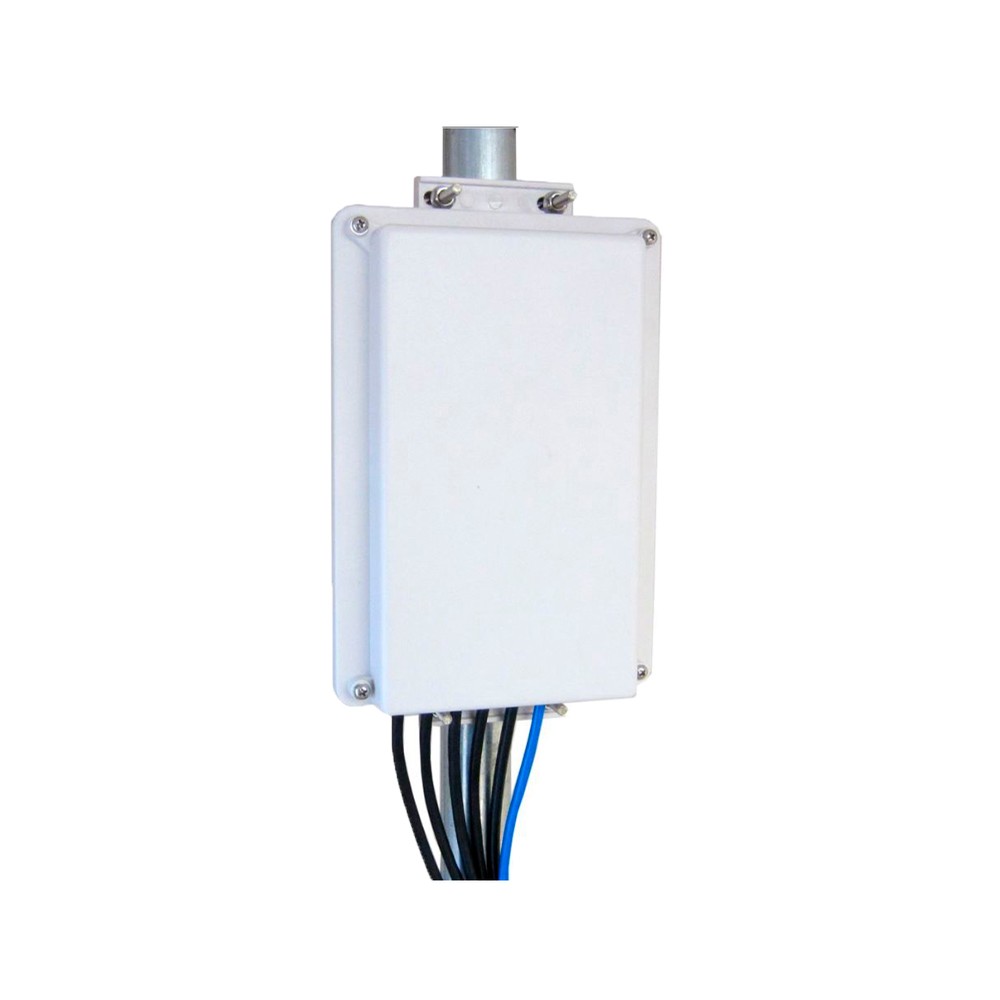

  • Weatherproof UV Protected Enclosure, Pole or Wall Mount
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems; Power Multiple Devices from 1 Data/PoE Cable
  • Model#: TP-SW8NC-OUT48

    Sku: IT2855.881.251525

    MSRP: $264.95

    Out of stock

    Your Price: $264.95

    This outdoor passive POE switch is designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.

    The switch is an 8-port model with 48VDC Passive POE. The model can be changed in the field just by changing the power supply voltage which powers the switch. It accepts DC power from any power supply. The PoE output voltage equals the DC voltage of the power supply used from 12V to 57VDC. It's supplied with 48VDC 120W AC to DC power supply with Gigabit POE inserter. The switch is an unmanaged layer 2 switch.

    The 48VDC POE model is compatible with any device that complies with the 802.3af or 802.3at specifications. 802.3at specifications.


    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • Power Multiple Devices from 1 Data/POE Cable
    • Ethernet Standard IEEE802.3/IEEE802.3u (10base-T/100base-T)
    • POE Standard (Uplink Port) Passive POE
    • Ports 1 data/PoE input and 7 data/PoE output automatic data crossover
    • Transmission Speed 100 Mbps / 10 Mbps Auto-negotiation
    • Maximum POE Power Port 1-8, 2A Per Port Secondary Wire Terminal Input Max 10A
    • DC Power / POE Input 12V to 57V Dual DC Inputs, Reverse Polarity Protected.
    • Operating Temperature -40 to +85°C (-40 to 185°F)
    • Dimensions (LxWxH) 292 x 178 x 64mm (11.5 x 7 x 2.5”)
    • Weight  1kg (2.25lb) Total with ACDC PS = 1.9kg (4.2lbs)
