TP-SW8NC-OUT24

Tycon Power Systems


Tycon Power Systems TP-SW8NC-OUT24 8 port Passive PoE 10/100 Outdoor Switch 24VDC



Product Highlights
  • 8 Port 10/100 Unmanaged Layer 2 outdoor Weatherproof 24V Passive PoE Switch (7x Powered PoE Ports and 1x Uplink Port)
  • Power Remotely Over PoE to the Uplink Port

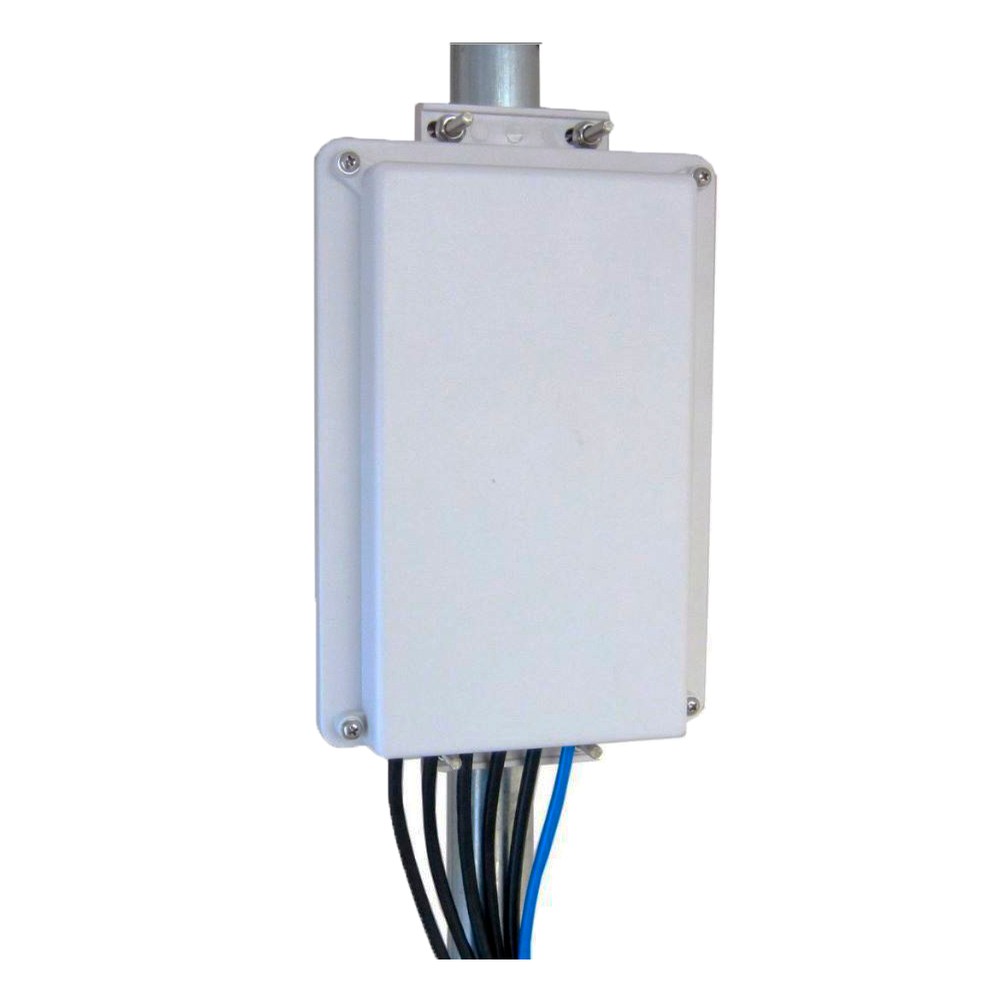

  • Weatherproof UV Protected Enclosure, Pole or Wall Mount

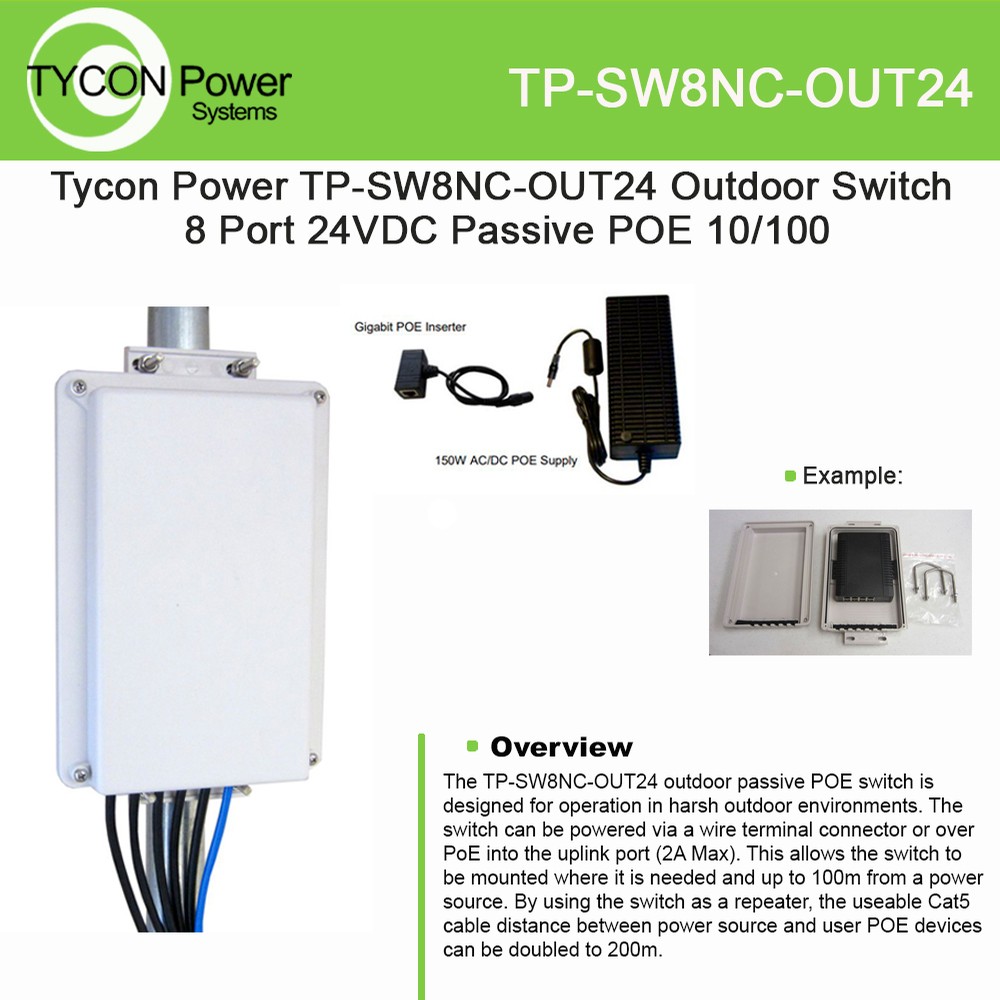

  • Includes 24V 120W PoE Inserter
  • Applications: Wireless Access Points and Client Device; IP Phone and Security Camera Systems; Power Multiple Devices from 1 Data/PoE Cable
  • Model#: TP-SW8NC-OUT24

    Sku: IT2854



    MSRP: $254.99


    Out of stock

    This outdoor passive POE switch is designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.

    The switch is a 8 port Gigabit model with 24VDC Passive POE. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 24VDC 120W AC to DC power supplies with Gigabit POE inserters. The switch is an unmanaged layer 2 switch.

    The 24VDC POE model is compatible with devices like UBNT and Mikrotik.

    • Ethernet Standard IEEE802.3/IEEE802.3u (10base-T/100base-T)
    • POE Standard (Uplink Port) Passive POE
    • Ports 1 data/PoE input and 7 data/PoE output automatic data crossover
    • Transmission Speed 100 Mbps / 10 Mbps Auto-negotiation
    • Maximum POE Power Port 1-8, 2A Per Port Secondary Wire Terminal Input Max 10A
    • DC Power / POE Input 12V to 57V Dual DC Inputs, Reverse Polarity Protected.
    • Operating Temperature -40 to +85°C (-40 to 185°F)
    • Dimensions (LxWxH) 292 x 178 x 64mm (11.5 x 7 x 2.5”)
    • Weight 1kg (2.25lb) Total with ACDC PS = 1.9kg (4.2lbs)
