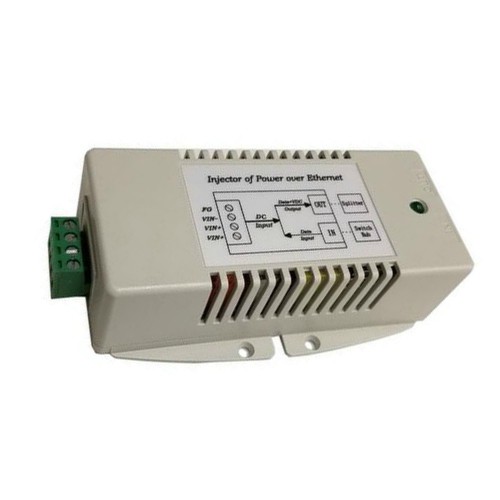

Tycon Power DC to DC converter 36-72VDC IN TP-DCDC-4848GD-HP with Integrated POE Inserter and 35W

Product Highlights

TP-DCDC-4848GD-HP is a high efficiency solution for those requiring IEEE802.3af and IEEE802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle

It has an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected

Two isolated inputs for connecting 2 power sources, like a primary and backup power source

Some features: Input Voltage 48VDC, Output Voltage 56V (802.3af/at), Integrated 10/100/1000MB PoE Inserter, High Power up to 50W and dual Inputs for connecting 2 Power Sources

Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices or IP Phone and Security Camera Systems

Model#: TP-DCDC-4848GD-HP

Sku: IT2852

MSRP: $67.99

The TP-DCDC-4848GD-HP DC to DC converters offered by Tycon Power Systems are a high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-48V battery system.

The POE inserters are 802.3af/at compatible.

They have an integrated POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 36VDC and 72VDC.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

DC Input Voltage +/- 36 to 72VDC
DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max Storage Temp -40 to +80°C (-40 to +176°F)
DC Output Voltage 56V (802.3af/at)
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 0.625A
Output Power (max) 35W
Operating Temp -30 to +60°C (-22 to +140°F)
Storage Temp -40 to +80°C (-40 to +176°F)
Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight 300g (10.6oz)
