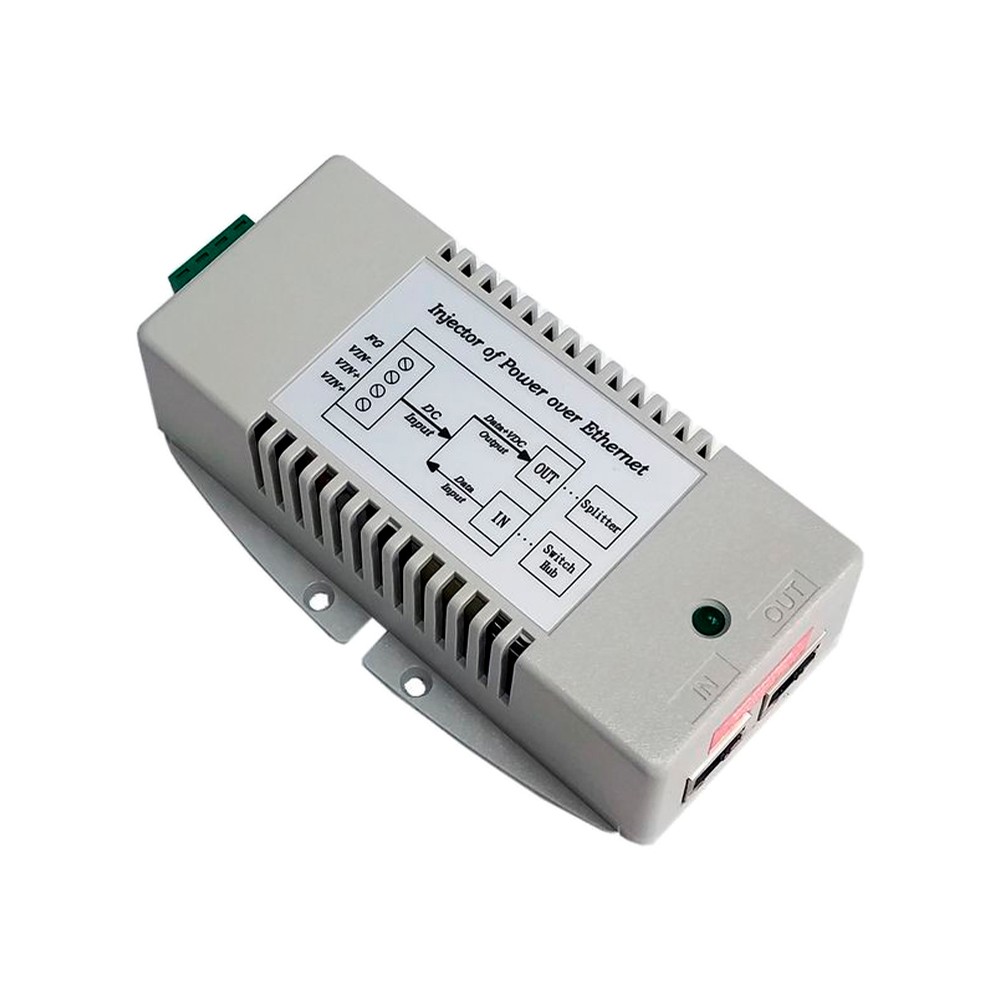

Tycon Power Systems TP-DCDC-4848-HP DC to DC Converter 56V 35W Passive PoE Inserter

TP-DCDC-4848-HP

Tycon Power Systems
Tycon Power Systems TP-DCDC-4848-HP DC to DC Converter 56V 35W Passive PoE Inserter


Product Highlights
  • 56V 35W Passive PoE Inserter
  • +/- 36-72VDC Wire Terminal Input
  • Isolated Input to out
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Applications: 48V Battery Systems; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-DCDC-4848-HP

    Sku: IT2851.876.249747



    MSRP: $56.95

    In Stock

    Your Price: $56.95




    The TP-DCDC-4848-HP offered by Tycon Power is a low cost and high reliability solution for those requiring passive 56VDC Power over Ethernet voltage from a 48V battery system. They have an integrated PoE injector. They have two inputs for connecting 2 power sources, like a primary and backup power source.

    They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which are negative voltage based.

    • Input Voltage +/- 36VDC to 72VDC
    • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • POE Specification Passive
    • Output Voltage (+/-2.5%) 56VDC
    • Data in & Data/POE Output Connector RJ45 (Shielded)
    • Output Current (max) 0.625A
    • Output Power (max) 35W
    • Self Consumption Power 2W
    • Efficiency (min) 75%
    • Line Regulation 1%
    • Load Regulation 5%
    • Ripple 1%
    • Noise 1%
    • EMC Standards FCC Class B NE55022 Class B
    • Safety Standards CSA 22.2 &TUV EN60950
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Operating Humidity (RH) 5% - 90%
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • MTBF (Mean Time Between
    • Failure) 106,924 Hours
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 300g (10.6oz)
    • Manufacturer Warranty 3 Years
