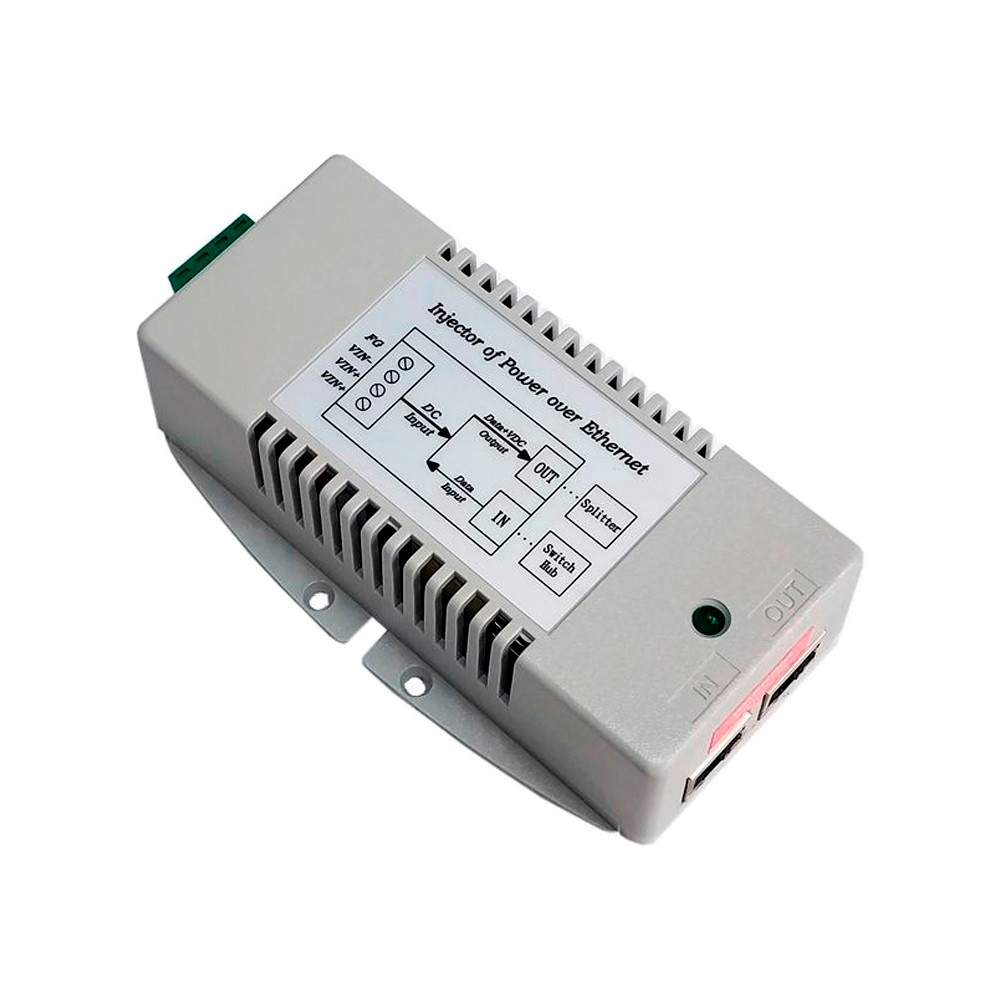

Tycon TP-DCDC-2456GD-VHP DC to DC converter w/ integrated PoE inserter 18-36VDC IN 56VDC 802.3at OUT

TP-DCDC-2456GD-VHP

Tycon Power Systems
Tycon Power Systems TP-DCDC-2456GD-VHP DC to DC converter with integrated PoE inserter 18-36VDC IN 2 CH 802.3at 56VDC OUT and 70W


Product Highlights
  • TP-DCDC-2456GD-VHP is a high power DC to DC converters / PoE inserters designed and qualified for use with Axis Q6035-E outdoor PTZ security cameras and Cisco‚Äôs UPOE standards
  • The DCDC converter supplies 35W per PoE channel. One PoE channel is using pins 4,5,7,8 and the other PoE channel utilizes pins 1,2,3,6
  • It has two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated
  • The units have separate LED indicators for indicating which 802.3at channel is being used by the client
  • Applications: 24VDC and 48VDC or -48VDC Remote Power Systems; Axis Q6035-e PTZ Surveillance Cameras; Cisco UPOE Standards; 802.3at High Power
  • Model#: TP-DCDC-2456GD-VHP

    Sku: IT2850.874.249090



    MSRP: $148.95

    In Stock

    Your Price: $148.95




    The TP-DCDC-2456GD-VHP is a special very high power DC to DC converter / PoE inserter designed and qualified for use with Axis Q6032-E, Q6034-E and Q6035-E outdoor PTZ security cameras, and Cisco's UPOE standards.

    The DCDC converter supplies 35W per PoE channel. One PoE channel is using pins 4, 5, 7, 8 and the other POE channel utilizes pins 1, 2, 3, 6. By splitting the power onto separate PoE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-2456GD-VHP has separate LED indicators for indicating which 802.3af/at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2.

    The TP-DCDC-2456GD-VHP has been qualified by Axis to be used with their Q60 series of PTZ cameras. The unit can be used with any 802.3af/at device as it will supply 35W to any 802.3af/at POE channel detected. If two channels are detected on the client then 70W power will be supplied.

    They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

    This product is compatible with Cisco's UPOE standards.

    Applications

    • 24VDC and 48VDC or -48VDC Remote Power Systems
    • Axis Q6035-e PTZ Surveillance Cameras
    • Cisco UPOE Standards
    • 802.3at High Power Applications.
    • Input Voltage +/- 18VDC to 36VDC
    • POE Specification 802.3at
    • Output Voltage (+/-2.5%) 56VDC
    • Output Current (max) 0.625A per POE channel = 1.25A Total
    • Output Power (max) 35W per POE channel = 70W Total
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • Weight 255g (9oz)
