Tycon Power TP-DCDC-1248GD-M gigabit DC to DC converter 9-36VDC IN 48VDC 802.3af OUT and 17W

TP-DCDC-1248GD-M

Tycon Power Systems
Tycon Power TP-DCDC-1248GD-M gigabit DC to DC converter 9-36VDC IN 48VDC 802.3af OUT and 17W


Product Highlights

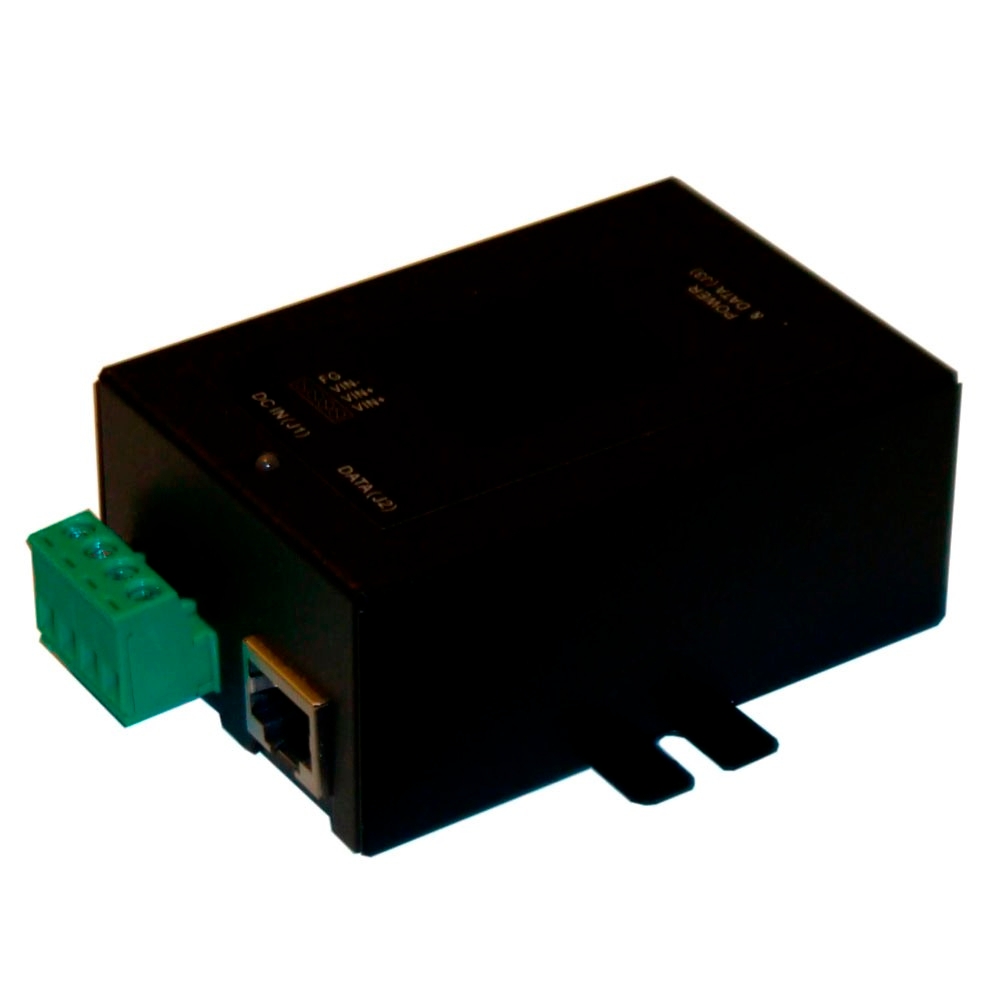

  • 48V 16.8W 802.3af Gigabit PoE Inserter with Black Metal Housing
  • 9-36VDC Wire Terminal Input
  • Shielded and Surge Protected
  • For vehicle and other battery systems
  • Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-DCDC-1248GD-M

    Sku: IT2845.869.247230



    MSRP: $69.99

    In Stock

    Your Price: $66.95




    The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af Power Over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.

    They have an integrated POE injector to apply the 802.3af output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.

    They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).

    They have various protections for surge, short circuit and overload. The units have power outputs of 17W.

    Applications

    • 12V / 24V / 48V Battery Systems, Vehicle Applications
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • DC Input Voltage 9VDC – 36VDC
    • DC Output Voltage 48V (802.3af)
    • Output Current (max) 0.35A
    • Output Power (max) 17W
    • Operating Temp -30 to +60°C (-22 to +140°F)
    • Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
    • Weight 134g (4.7oz)
