Tycon Power TP-MS616 16 port Midspan Gigabit PoE Injector 802.3at or 48V Passive PoE Out AC/DC Input

TP-MS616

Tycon Power Systems
Tycon Power Systems TP-MS616 16 port Midspan Gigabit PoE Injector 802.3at or 48V Passive PoE Out and AC/DC Input


Product Highlights
  • 16 Port 802.3at/Passive Programmable AC/DC Powered Midspan Gigabit PoE Injector
  • 802.3at or 48V Passive PoE out, PoE Pinout: 4,5V+;7,8V-
  • 19 inches 1U Rackmount, Shielded
  • Accepts AC and/or DC Input, Surge Protected
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems; Power network devices from a central network room
  • Model#: TP-MS616

    Sku: IT2839.860.244154



    MSRP: $734.95

    In Stock

    Your Price: $734.95

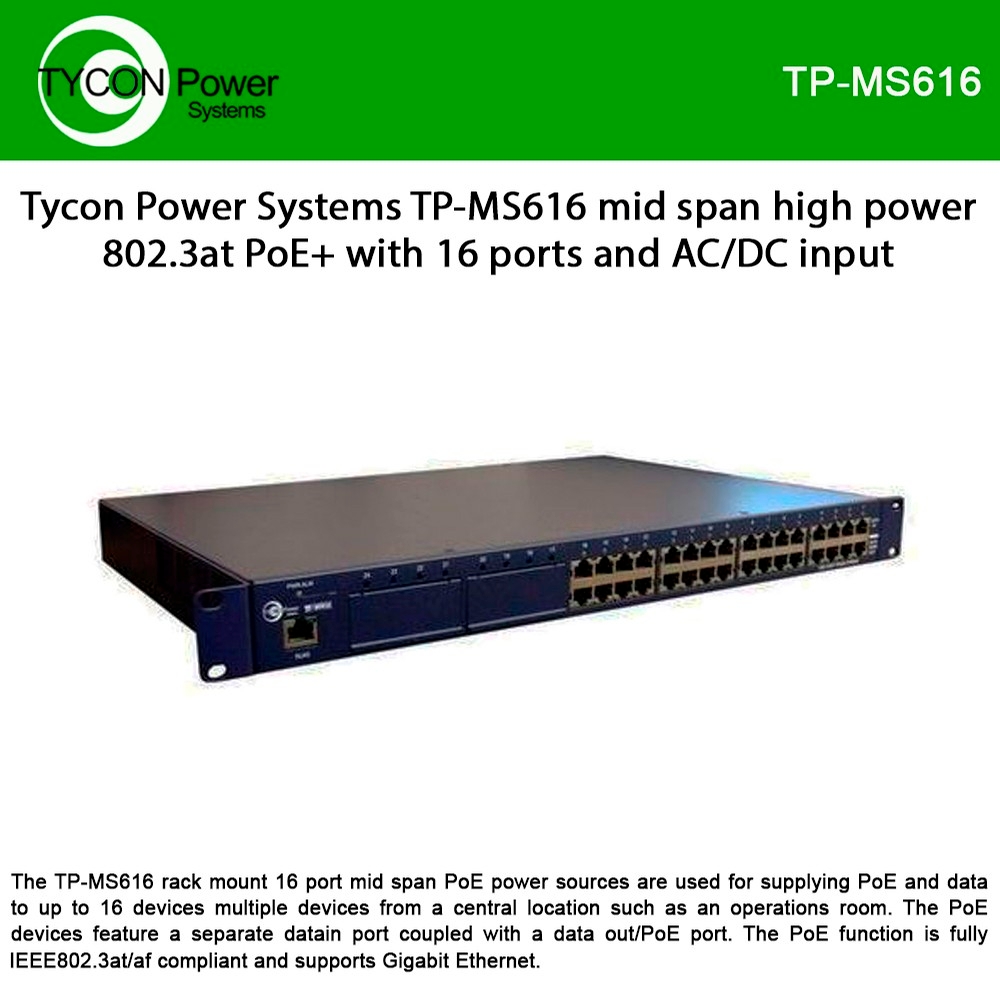

    The TP-MS616 rack mount 16 port mid span PoE power sources are used for supplying PoE and data to up to 16 devices multiple devices from a central location such as an operations room. The PoE devices feature a separate datain port coupled with a data out/PoE port. The PoE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet.

    The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced PoE output (Passive PoE) or IEE802.3at/af detection. PoE DC Voltage (55V) is supplied on 4 pairs. Maximum power output per rack mount unit is 576W. The individual outputs are overload and short circuit protected. The 1U rack mounting accommodates 19" racks with included brackets.

    Applications

    • Wireless Access Points and Client Devices

    • IP Phone and Security Camera Systems

    • Power network devices from a central network room

    • Ethernet Standard IEEE802.3/IEEE802.3u/IEEE802.3ab (10 base-T/100base-T/1000base-T)

    • PoE Standard IEEE802.3at/af or Passive PoE

    • Shielded RJ45 Ports 16 data-in ; 16 data/PoE out

    • Console Port RJ45 Management Port. Can also be managed via network.

    • Max Device Distance 100m (328ft)

    • Maximum PoE Power 35W per port, 625mA @ 56V

    • PoE Protection Over Temperature, Over Current, Over/Under Voltage

    • AC Power Input 100~240VAC, 50/60Hz

    • Fuse Type IEC 60127-2 Type T, 5x20mm 250V 6.3A TimeLag

    • DC Power Input -42VDC TO -57VDC

    • Max Power Output 576W

    • Operating Temperature -20 to +65°C (-4 to 149°F)

    • Storage Temperature -20 to +80°C (-4 to +176°F)

    • Dimensions (LxWxH) 430 x 290 x 44mm (16.9 x 11.4 x 1.7”)

    • 1U rack mount 19”

    • Weight 4.9kg (10.8lb)
