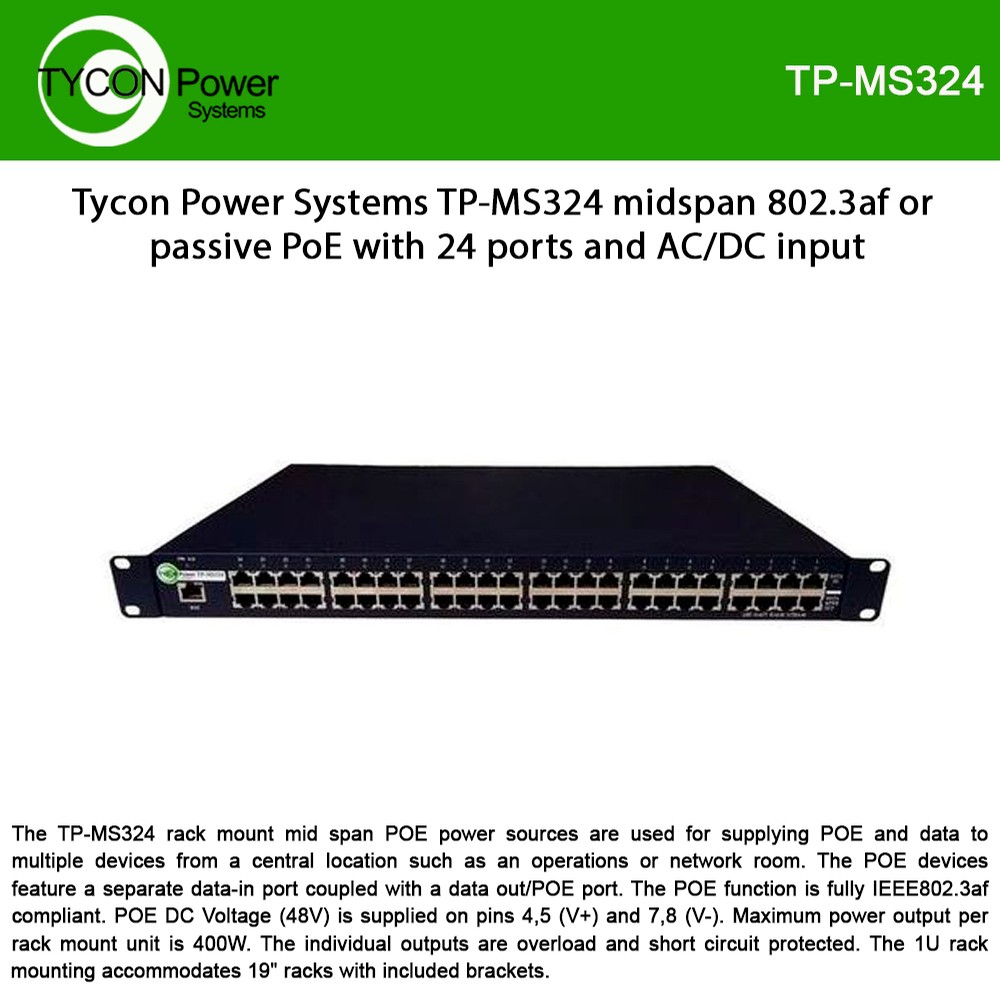

Tycon TP-MS324 24 port Midspan Gigabit PoE Injector 802.3af or 48V Passive PoE Out and AC/DC In

TP-MS324

Tycon Power Systems
Tycon Power Systems TP-MS324 24 port Midspan Gigabit PoE Injector 802.3af or 48V Passive PoE Out and AC/DC In


Product Highlights
  • 24 Port 802.3af/Passive Programmable AC/DC Powered Midspan Gigabit PoE Injector
  • 802.3af or 48V Passive PoE out, PoE Pinout: 4,5V+;7,8V-
  • Remotely Manageable PoE Ports: 802.3af, Passive, Off
  • Accepts AC and/or DC Input, Surge Protected
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems; Power network devices from a central network room
  • Model#: TP-MS324

    Sku: IT2838.859.243784



    MSRP: $752.95

    In Stock

    Your Price: $752.95

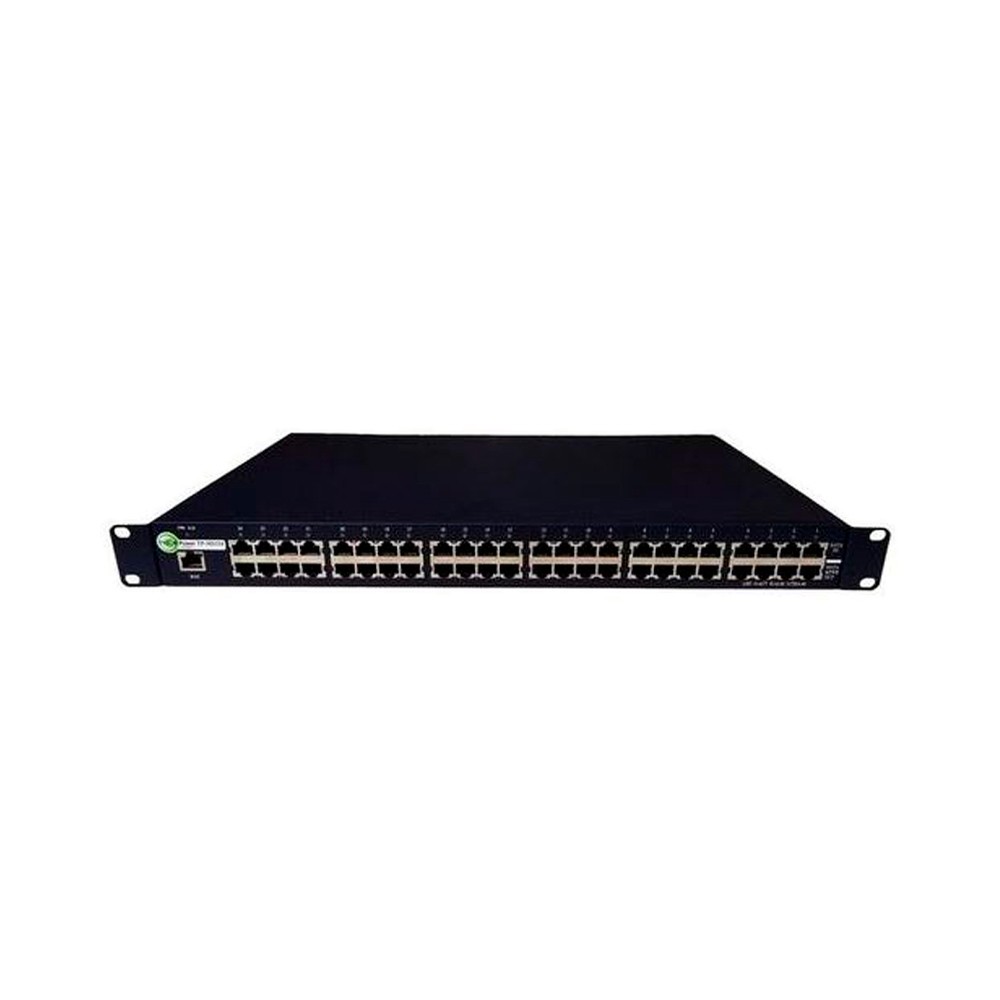

    The TP-MS324 rack mount mid span POE power sources are used for supplying POE and data to multiple devices from a central location such as an operations or network room.

    The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant. The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the web interface. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection.

    POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.

    The 1U rack mounting accommodates 19"racks with included brackets.

    Applications

    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • Power network devices from a central network room
    • Ethernet Standard IEEE802.3/IEEE802.3u/IEEE802.3ab (10 base-T/100base-T/1000base-T)
    • POE Standard IEEE802.3af or 48VDC Passive POE
    • Shielded RJ45 Ports 24 data-in ; 24 data/POE out
    • Console Port RJ45 Management Port. Can also be managed via network.
    • Max Device Distance 100m (328ft)
    • Maximum POE Power 16.8W per port, 350mA @ 48V
    • POE Protection Over Temperature, Over Current, Over/Under Voltage
    • AC Power Input 100~240VAC, 50/60Hz
    • Fuse Type IEC 60127-2 Type T, 5x20mm 250V 6.3A TimeLag
    • DC Power Input -42VDC TO -57VDC
    • Max Power Output 403W
    • Operating Temperature 0 to +65°C (32 to 149°F)
    • Operating Humidity (RH) 10% - 95% (non condensing)
    • MTBF (Mean Time Between Failure) 103,546 Hours
    • Storage Temperature -20 to +80°C (-4 to +176°F)
    • Dimensions (LxWxH) 430 x 290 x 44mm (16.9 x 11.4 x 1.7”)
    • 1U rack mount 19” and 23”
    • Weight 4.6kg (10lb)
