Tycon TP-MS308 Midspan Gigabit PoE Injector 8 port 802.3af or Passive PoE Out and AC/DC Input

TP-MS308

Tycon Power Systems
Tycon Power Systems TP-MS308 Midspan Gigabit PoE Injector 8 port 802.3af or Passive PoE Out and AC/DC Input


Product Highlights
  • 8 Port 802.3af/Passive Programmable AC/DC Powered Midspan Gigabit PoE Injector
  • 19 inches 1U Rackmount, Shielded
  • Accepts AC and/or DC Input, Surge Protected
  • 802.3af or 48V Passive PoE out, PoE Pinout: 4,5V+;7,8V-
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems; Power network devices from a central network room
  • Model#: TP-MS308

    Sku: IT2837.857.243130



    MSRP: $465.95

    In Stock

    Your Price: $465.95

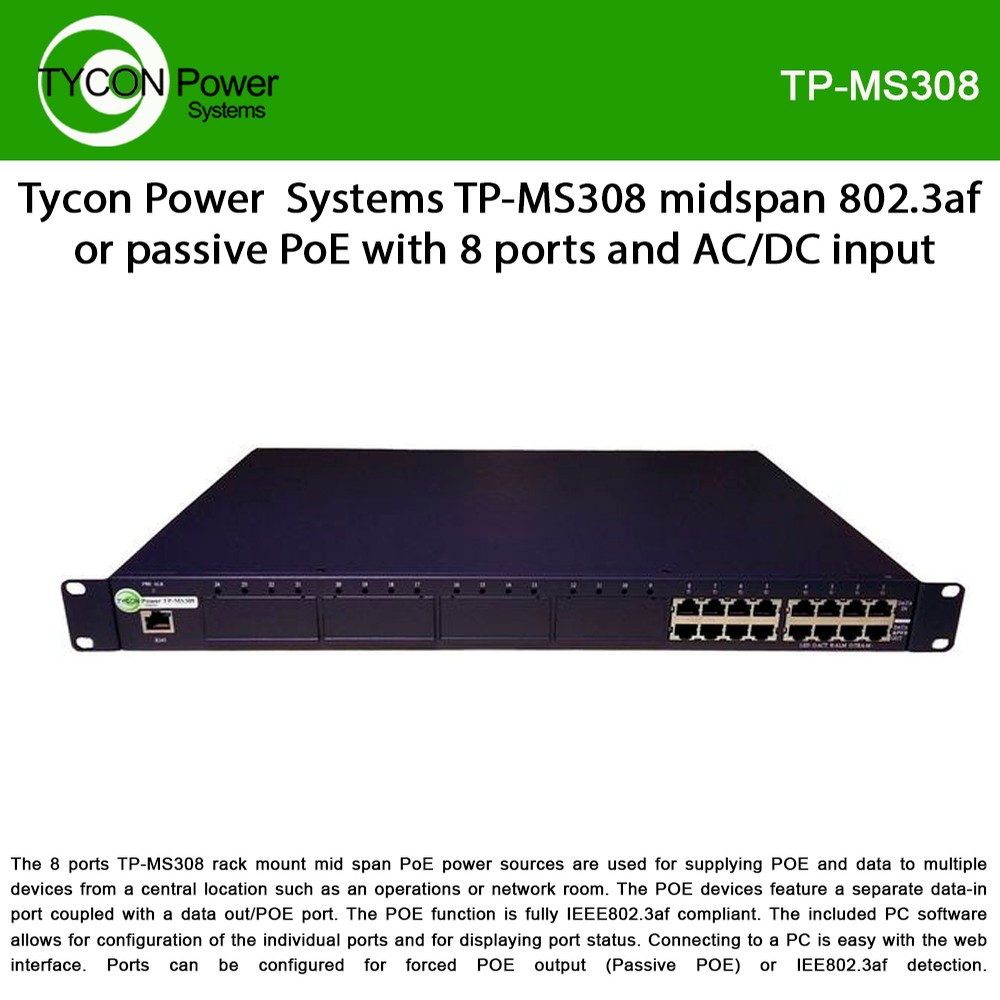

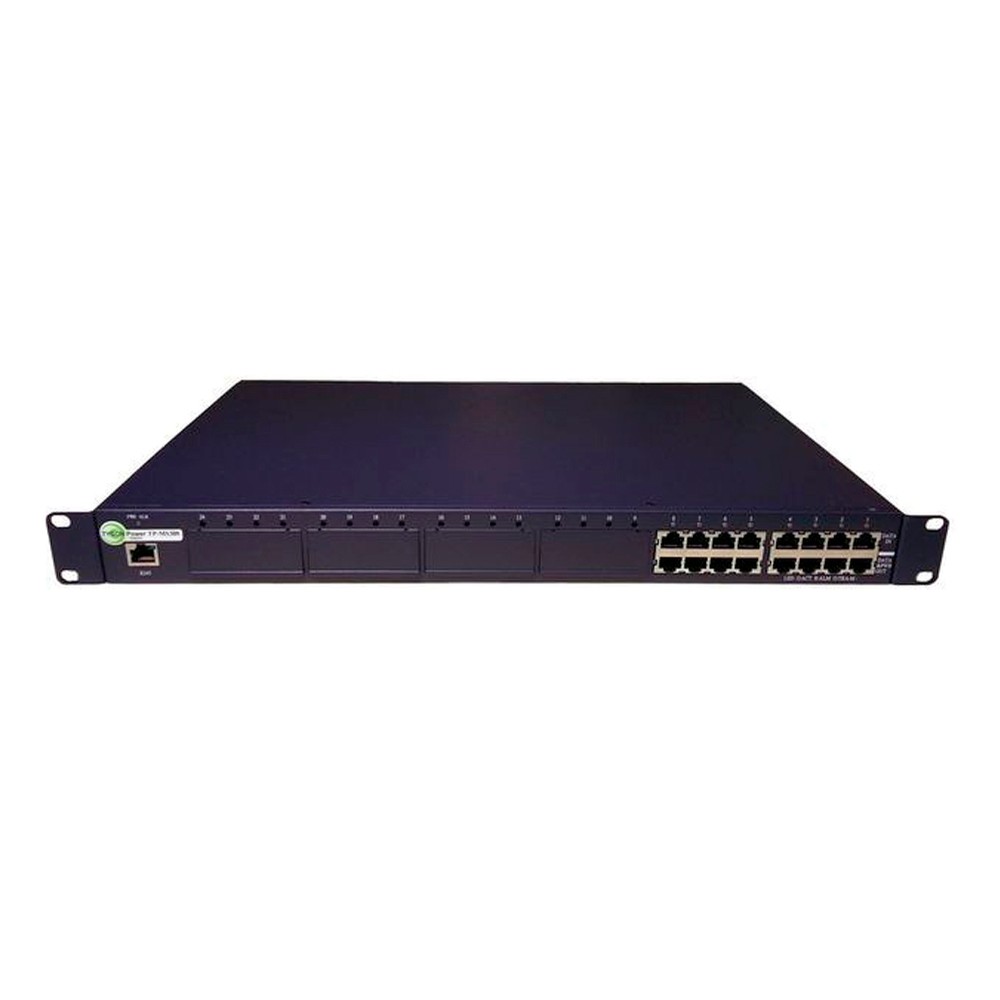

    The 8 ports TP-MS308 rack mount mid span PoE power sources are used for supplying POE and data to multiple devices from a central location such as an operations or network room.

    The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3af compliant. The included PC software allows for configuration of the individual ports and for displaying port status. Connecting to a PC is easy with the web interface. Ports can be configured for forced POE output (Passive POE) or IEE802.3af detection.

    POE DC Voltage (48V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per rack mount unit is 400W. The individual outputs are overload and short circuit protected.

    The 1U rack mounting accommodates 19" racks with included brackets.

    Applications

    • Wireless Access Points and Client Devices

    • IP Phone and Security Camera Systems

    • Power network devices from a central network room

    • Ethernet Standard IEEE802.3/IEEE802.3u/IEEE802.3ab (10 base-T/100base-T/1000base-T)

    • POE Standard IEEE802.3af or 48VDC Passive POE

    • Shielded RJ45 Ports 8 data-in ; 8 data/POE out

    • Console Port RJ45 Management Port. Can also be managed via network.

    • Max Device Distance 100m (328ft)

    • Maximum POE Power 16.8W per port, 350mA @ 48V

    • POE Protection Over Temperature, Over Current, Over/Under Voltage

    • AC Power Input 100~240VAC, 50/60Hz

    • Fuse Type IEC 60127-2 Type T, 5x20mm 250V 6.3A TimeLag

    • DC Power Input -42VDC TO -57VDC

    • Max Power Output 134W

    • Operating Temperature 0 to +65°C (32 to 149°F)

    • Operating Humidity (RH) 10% - 95% (non condensing)

    • Storage Temperature -20 to +80°C (-4 to +176°F)

    • Dimensions (LxWxH) 430 x 290 x 44mm (16.9 x 11.4 x 1.7”) 1U rack mount 19” and 23”

    • Weight 3.2kg (7lb)
