Tycon Power Systems UPS-PL1224-36 Backup System with 12V Battery 24V PoE out and Solar Ready


Tycon Power Systems
Tycon Power Systems UPS-PL1224-36 Backup System with 12V Battery 24V PoE out and Solar Ready

Product Highlights
  • UPSPro 12V 36Ah 432Wh outdoor UPSPro, 24V 30W PoE Load out, Passive PoE Powered
  • 12V 8A PWM PoE Powered Charge Controller with Load Controlled 24V 30W Passive PoE out + 12V 1.5A Aux out
  • Includes 120/240VAC 24VDC 90WPassive PoE Inserter

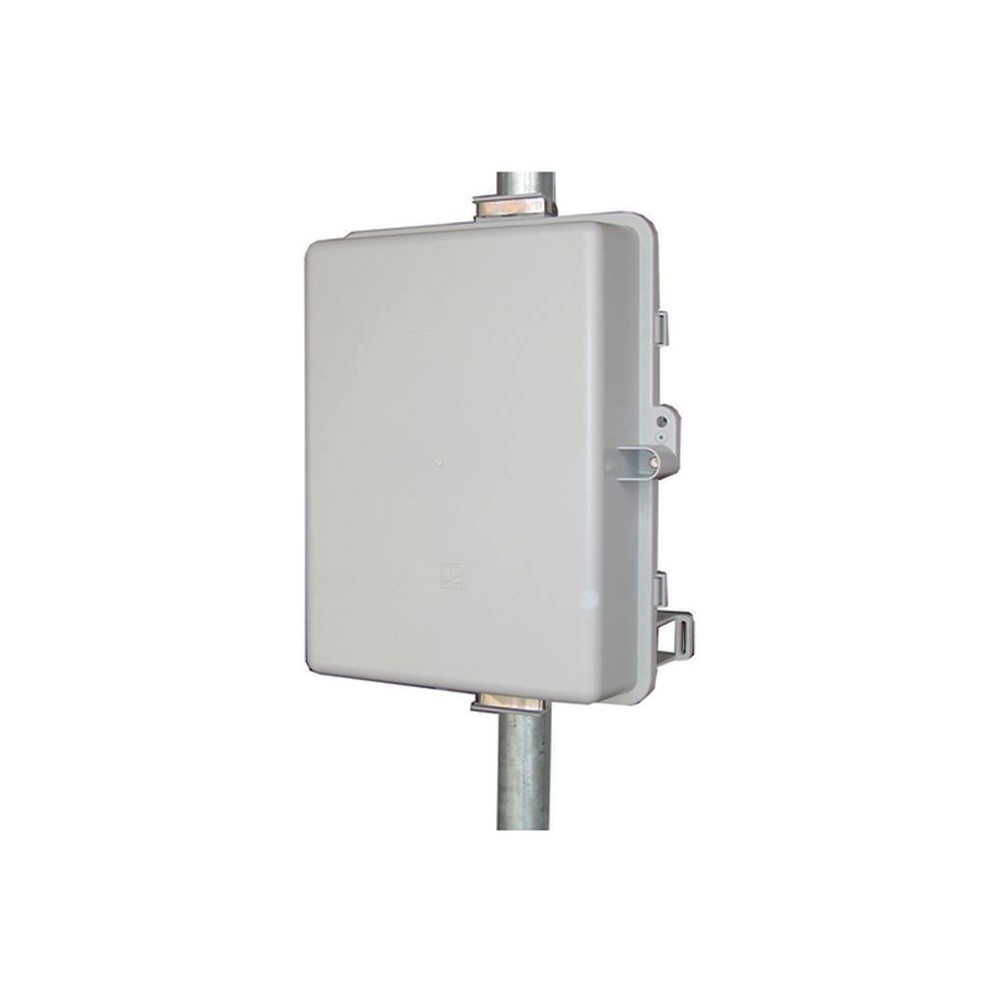

  • 2-4 inches Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure with Gasketed Hinged Lid
  • Advanced battery charge controller protects against overcharge and over discharge
  • Model#: UPS-PL1224-36

    Sku: IT2835.852.241542

    MSRP: $359.95

    In Stock

    Your Price: $359.95


    12V Battery, 24V POE, 12V Secondary Output, 36Ah Battery Capacity, Solar Ready Outdoor UPS System

    The UPSPro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable using Power Over Ethernet (POE) using a high power POE Supply/Inserter (included). Inside the system has a RJ45 female connector as DATA/POE input and an RJ45 Male connector as a DATA/POE output which gets connected to the customers POE device.The integrated controllers are Solar Ready and can be used with an external solar panel up to 85W in addition to grid power supplied via POE.

    Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the POE input and/or solar power.

    Features include a battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc.


    • Wireless Base Stations and Clients
    • Surveillance Cameras
    • Wireless Bridge and Repeaters
    • Remote Sensors
    • Mission critical outdoor power
    • Backup Power Systems
    • POE Output Voltages Available (DC) 24V
    • Available Capacities (Amp Hours) 34Ah
    • Total Output Power 30W
    • Maximum POE Input Voltage 57V
    • Battery Voltage (DC) 12V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type Dual Input Solar/POE, PWM, 12V 8A Max Solar Panel Size 135W
    • Overcharge Protection 14.4V
    • Over-discharge protection 11.0V
    • Over-discharge recovery voltage 12.0V
    • Controller Self Consumption <0.5W
    • Charging POE Power Supply 120/220VAC In ; 24VDC 60W Out
    • Enclosure Type Polycarbonate
    • Enclosure External Size 17.5 x 12.5 x 6” (445 x 318 x 152mm)
    • Enclosure Internal Size 14 x 10 x 5” (356 x 254 x 127mm)
    • Space available for Customer Electronics 3 x 5 x 3” (76 x 127 x 76mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (without batteries) 4lb (1.8kg)
    • Battery Weight (each) 5.5lb (2.5kg)
    • Manufacturer Warranty 3 Years
