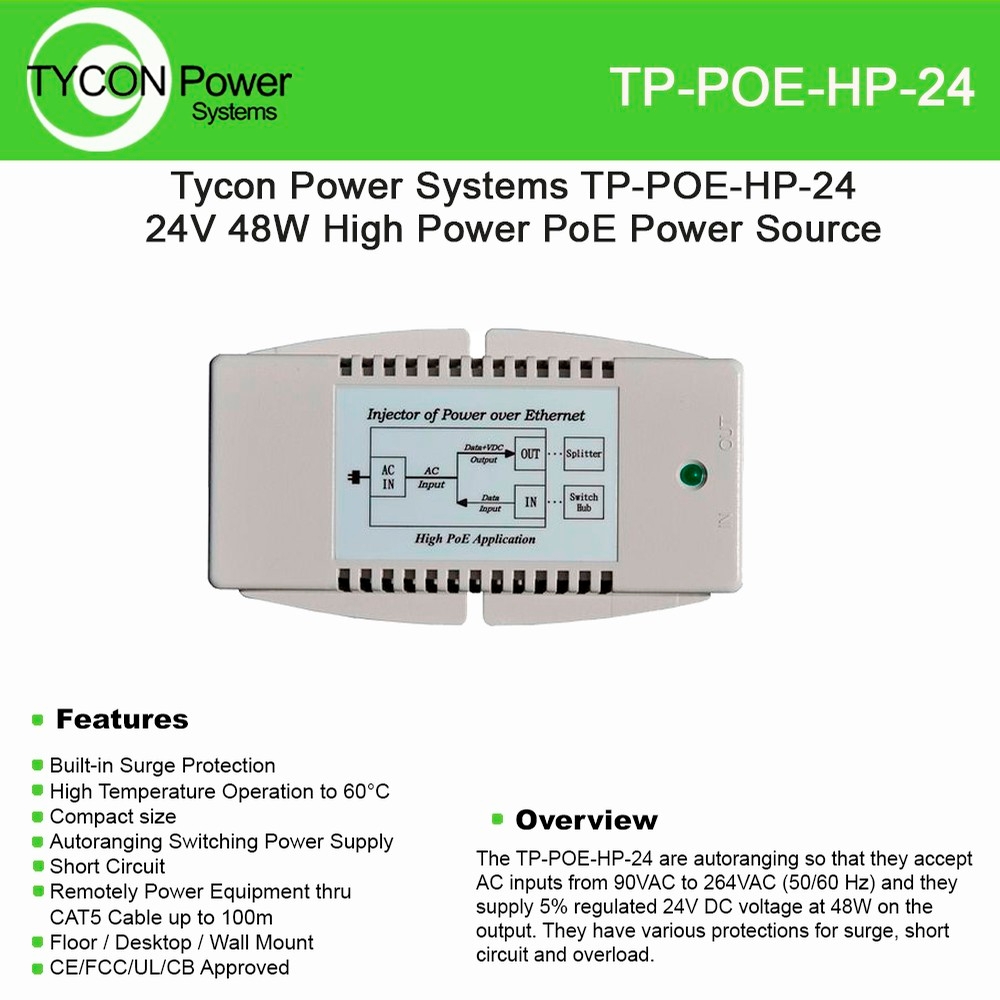

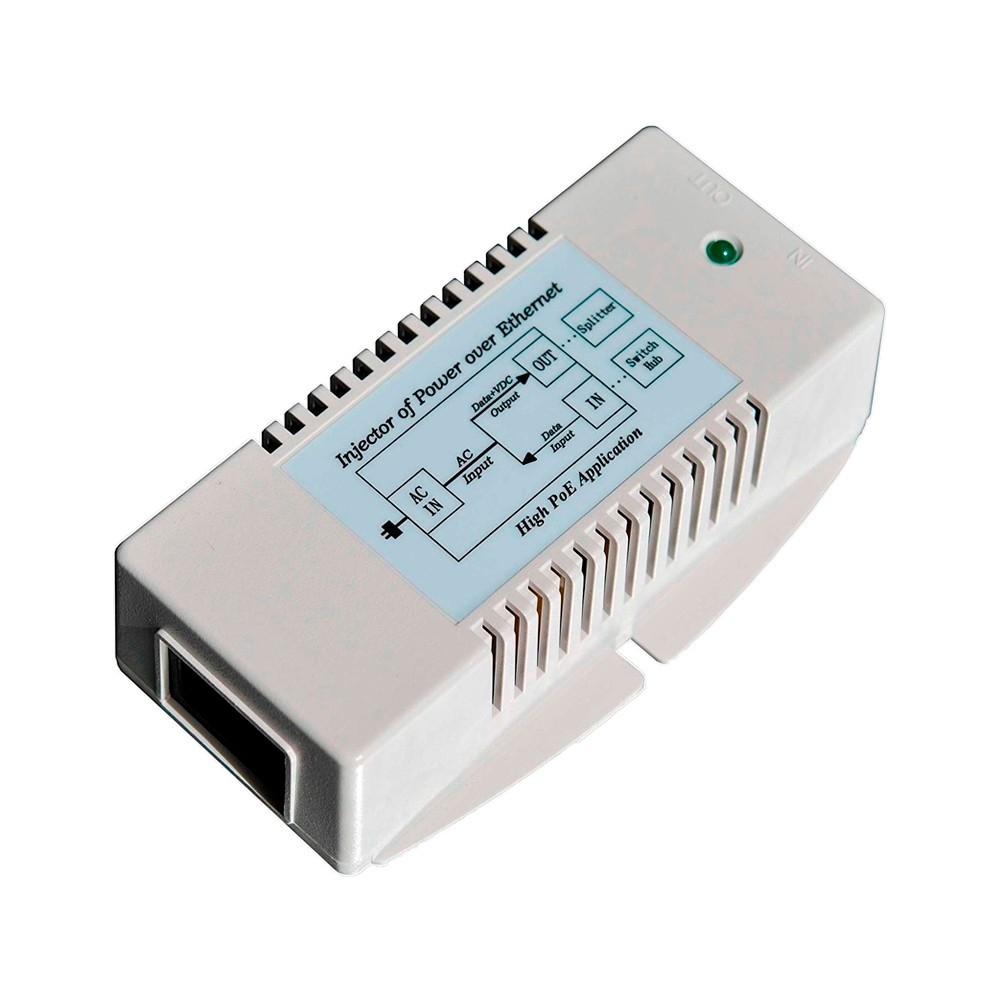

Tycon Power Systems TP-POE-HP-24 24V 120/240VAC 24V 48W Passive PoE Inserter

TP-POE-HP-24

Tycon Power Systems
Tycon Power Systems TP-POE-HP-24 24V 120/240VAC 24V 48W Passive PoE Inserter


Product Highlights
  • 120/240VAC In, 24VDC 48W Passive PoE Inserter
  • 24VDC 48W Regulated Passive PoE out
  • Shielded and Surge Protected
  • 120/240VAC Autoranging Input with Removeable Power Cord
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-POE-HP-24

    Sku: IT2829.839.237353



    MSRP: $58.95

    In Stock

    Your Price: $58.95




    The TP-POE Power over Ethernet Power Sources offered by Tycon Power are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). This model provides Passive PoE.

    They have various protections for surge, short circuit, overload and overvoltage. The high power models (TP-POE-HP) supply up to 50W output power

    Applications

    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • PoE Output Voltage (+/- 2.5%) 24V
    • Output Current 2A
    • Output Power 48W
    • PoE Type Passive
    • Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
    • AC Input 90-264VAC 47-63Hz
    • Max Inrush Current (120VAC) 30A
    • Efficiency (min) 85%
    • Line / Load Regulation 1% / 5%
    • Ripple / Noise 1% / 2%
    • Protections Over-Voltage, Short Circuit, Over-Current
    • EMC Standards FCC Class B EN55022 Class B
    • Safety Standards UL1950, CSA 22.2 & TUV EN60950
    • Environmental Standards RoHs
    • Operating Temperature -30 to +60°C (-22 to +140°F)
    • Operating Humidity (RH) 5% - 90%
    • Storage Temperature -40 to +80°C (-40 to +176°F)
    • MTBF (Mean Time Between Failure) 96,803 Hours
    • Weight 300g (10.6oz)
