Tycon Power Systems UPS-ST12-50 Outdoor UPS System 12V Battery 120W 600VA

Product Highlights
  • UPSPro 12V 50Ah 600Wh outdoor UPSPro, 12V 120W Continuous Load out
  • 120/240VAC (Switchable) Input, 12V 210W Regulated out Smart Battery Charger
  • Isolates Equipment from Power Line Surges

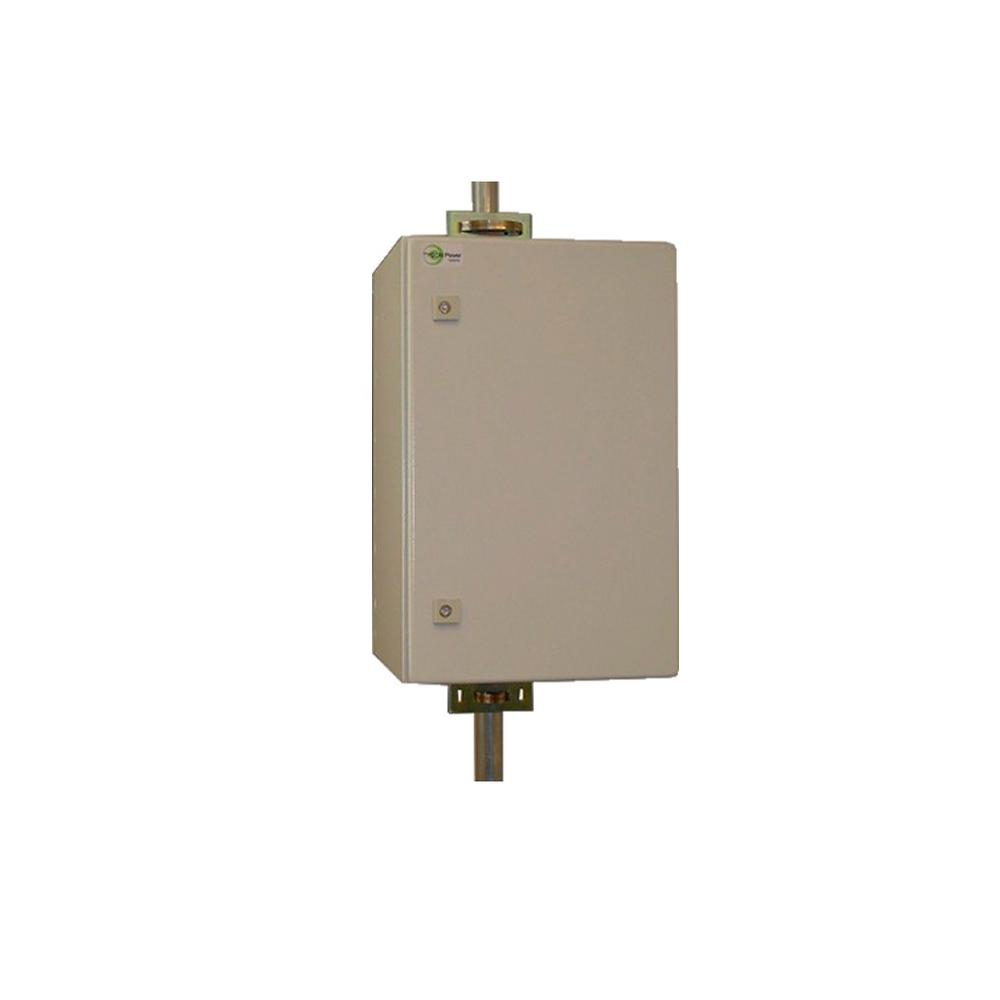

  • Pole/Wall Mount Weatherpoof Powder Coat Steel Locking Enclosure with Gasketed Lid
  • Applications: Wireless Base Stations; Security Applications; Electric gates and fences; Cell Towers
  • Model#: UPS-ST12-50

    Sku: IT2808

    MSRP: $752.95

    Out of stock

    The UPSPro ST outdoor UPS systems are designed to provide up to 120W backup power. There is enough backup power to keep a wireless base station alive for many hours. The controller provides load control to make sure the batteries don’t over-discharge. This greatly extends the life of the batteries. The 12V load output is regulated to be sure that the voltage doesn’t exceed the maximum voltage allowed by the load. The system is powered from 120VAC or 240VAC power. In case of power failure the transition to battery power is seamless and automatic. Recovery is automatic. The controller supports GEL/AGM or wet batteries. Systems are available without batteries to save on international shipping costs.

    The weatherproof vented enclosure with security locks has multiple ports for CAT5 cable, solar and other cabling. The included bracket kit allows for the enclosure to be pole mounted or wall mounted. The systems are rated to operate over a wide temperature range of -30C to +60C.

    There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. The standard component layout is designed for ease of maintenance.

    Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

    The system is also compatible with the TPSK Solar panel kits. A TPW wind turbine system can also be used as an alternate power source in addition to solar and AC power.


    • Wireless Base Stations
    • Security Applications
    • Electric gates and fences
    • Cell Towers
    • Load Voltage 12V +/- 0.5V
    • Maximum Load Output 10A (120W)
    • Minimum Load Output 1A
    • Available Storage Capacities 1 battery 51Ah 600VA - 2 battery 102Ah 1200VA - 4 battery 204Ah 2400VA
    • Battery Type Non-Spillable Valve Regulated Sealed Lead Acid / GEL
    • Charge Voltage GEL/AGM Equalize = 14.2V, Float = 13.5V
    • Maximum Charge Current 5A
    • Over-Discharge Protection 10.7V Load Off 12.6V Load On
    • Other Protection Short Circuit, Reverse Battery, Over Voltage
    • VAC Input +/- 10% Selector Switch 120VAC / 240VAC , 50/60Hz
    • VAC Input Current 3.5A @ 115VAC / 1.8A @ 240VAC
    • Fuse 6A internal
    • Self Consumption <5W
    • Enclosure Type Powder Coated Steel, Security Locks, Pole (2” to 4”) or Wall Mount
    • Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
    • Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (no batteries) 55lb (25kg)
    • Battery Weight 37lb (17kg) each x 1, 2 or 4
