UPS-DC1248-9

Tycon Power Systems

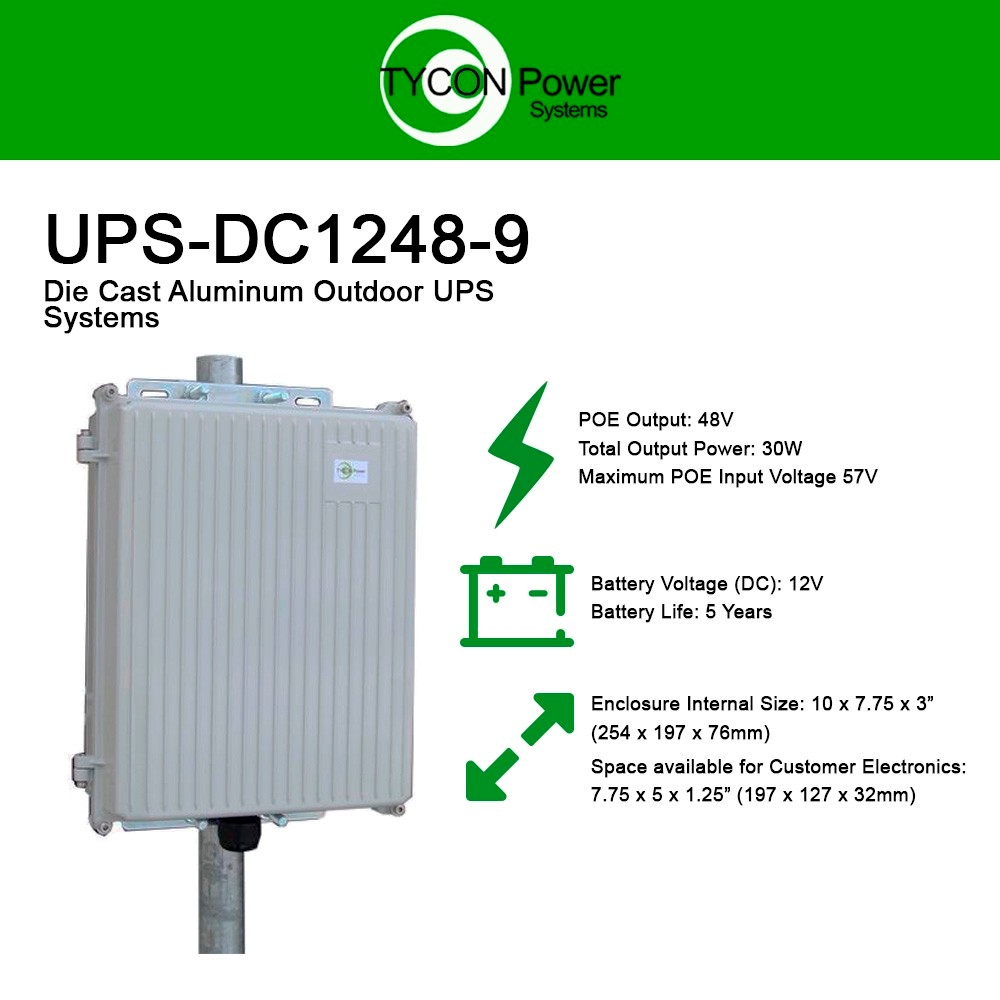

Tycon UPS-DC1248-9 Outdoor UPS 12V 9Ah Battery 48V 30W PoE Load out and Passive PoE Powered



Product Highlights
  • UPSPro 12V 9Ah 108Wh outdoor UPSPro, 48V 30W PoE Load out, Passive PoE Powered
  • 12V 8A PWM PoE Powered Charge Controller with Load Controlled 48V 30W Passive PoE out + 12V 1.5A Aux out
  • 1-1.6 inches Pole/Wall Mount Weatherpoof Die Cast Aluminum Enclosure with Gasketed Hinged Lid
  • Includes 120/240VAC 24VDC 90WPassive PoE Inserter
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Mission critical outdoor power; Backup Power Systems
  • Model#: UPS-DC1248-9

    Sku: IT2800



    MSRP: $192.99


    Out of stock

    The UPSPro series outdoor systems are designed for applications that require a backup power source in order to maintain uninterrupted service in the event of AC power failure. The system is powered over a CAT5 network cable via Power over Ethernet (PoE) using a Power Supply and PoE Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    There is a small amount of space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is the main cause of outdoor equipment failure.

    Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the Power Supply and PoE Inserter.

    A typical 250mW wireless access point with average power consumption of 3.5W will run 24 hours on a 8.5Ah battery at room temperature or 16 hours at -20 deg C.

    • POE Output Voltages Available (DC)  48V
    • Available Capacities (Amp Hours) 8.5Ah
    • Total Output Power 30W
    • Maximum POE Input Voltage 57V
    • Battery Voltage (DC) 12V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type Dual Input Solar/POE, PWM, 12V 10A Max Solar Panel Size 135W
    • Overcharge Protection 14.4V
    • Over-discharge protection 11.0V
    • Over-discharge recovery voltage 12.0V
    • Controller Self Consumption <0.5W
    • Charging POE Power Supply 120/220VAC In ; 24VDC 60W Out
    • Enclosure Type Die Cast Aluminum
    • Enclosure External Size 11 x 8.5 x 3.5 inches (279 x 216 x 89mm)
    • Enclosure Internal Size 10 x 7.75 x 3 inches (254 x 197 x 76mm)
    • Space available for Customer Electronics 7.75 x 5 x 1.25 inches (197 x 127 x 32mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (without batteries) 4lb (1.8kg)
    • Battery Weight (each) 5.5lb (2.5kg)
    • Manufacturer Warranty 3 Years
