Tycon UPS-DC1212-9 Die Cast Solar Ready Outdoor UPS System with 12V 9Ah Battery 12V PoE out and 30W

UPS-DC1212-9

Tycon Power Systems
Tycon Power Systems UPS-DC1212-9 Die Cast Solar Ready Outdoor UPS System with 12V 9Ah Battery 12V PoE out and 30W out


Product Highlights
  • Available Capacity (Amp Hours) 9Ah; Maximum POE Input Voltage 57V; Battery Voltage (DC) 12V

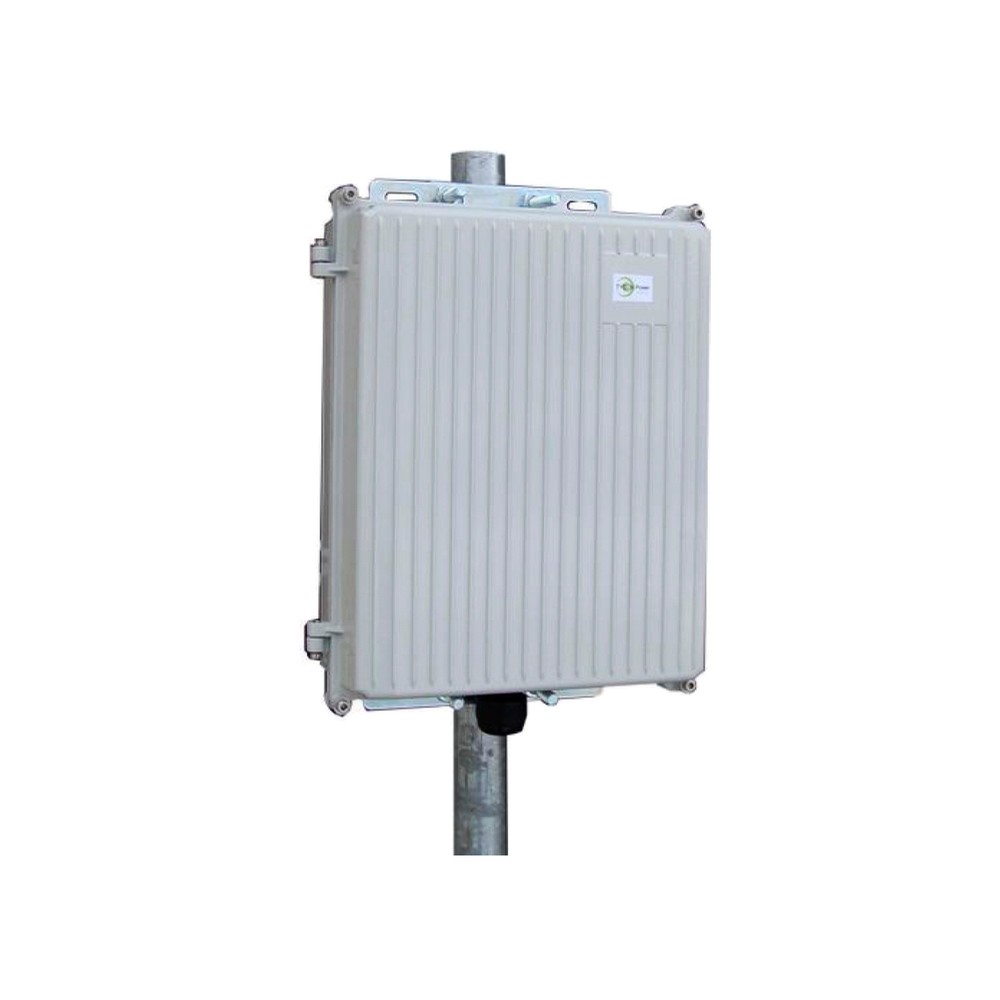

  • Outdoor Die Cast Aluminum Enclosure Weatherproof, UV resistant, Wall or Pole Mounting
  • Powered over CAT5 cable using POE and/or Solar
  • Enclosure Internal Size 10 x 7.75 x 3 (254 x 197 x 76mm); Space available for Customer Electronics 7.75 x 5 x 1.25 (197 x 127 x 32mm)
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Mission critical outdoor power; Backup Power Systems
  • Model#: UPS-DC1212-9

    Sku: IT2798.465.130107



    MSRP: $179.95

    Out of stock

    Your Price: $179.95


    The UPSPro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable via Power Over Ethernet (POE) using a POE Supply/Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure. Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the POE power supply.

    Multiple configurations are available for 12V or 24V systems with various battery storage capacities. A typical 250mW wireless access point with average power consumption of 3.5W will run 26 hours on a 9Ah battery at room temperature or 17 hours at -20 deg C.

    • POE Output Voltage (DC) 12V
    • Available Capacity (Amp Hours) 8.5Ah
    • Total Output Power 30W
    • Maximum POE Input Voltage 57V
    • Battery Voltage (DC) 12V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type Dual Input Solar/POE, PWM, 12V 8A Max Solar Panel Size 135W
    • Overcharge Protection 14.4V
    • Over-discharge protection 11.0V
    • Over-discharge recovery voltage 12.0V
    • Controller Self Consumption <0.5W
    • Charging POE Power Supply 120/220VAC In ; 24VDC 60W Out
    • Enclosure Type Die Cast Aluminum
    • Enclosure External Size 11 x 8.5 x 3.5” (279 x 216 x 89mm)
    • Enclosure Internal Size 10 x 7.75 x 3” (254 x 197 x 76mm)
    • Space available for Customer Electronics 7.75 x 5 x 1.25” (197 x 127 x 32mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (without batteries) 4lb (1.8kg)
    • Battery Weight (each) 5.5lb (2.5kg)
