Tycon Power PoE/Solar charge control TP-SCPOE-1248 with dual input 12V

TP-SCPOE-1248

Tycon Power Systems
Tycon Power PoE/Solar charge control TP-SCPOE-1248 with dual input 12V


Product Highlights
  • 12V 8A PWM Solar Battery Charger with 48V 30W Passive PoE out and 12V 1.5A Aux out
  • Accepts 18-57V 2A Passive PoE Input for Aux Charging of Batteries
  • PoE Pinout: 4,5V+; 7,8V-, Shielded
  • Includes DIN Rail Mounting Kit
  • Applications: Remote Power Systems; Surveillance, Sensors; Wireless Stations ; AP / Client / Repeaters; UPS Systems ; Lighting, Fences, Gates
  • Model#: TP-SCPOE-1248

    Sku: IT2797.462.129221



    MSRP: $89.99

    In Stock

    Your Price: $82.95

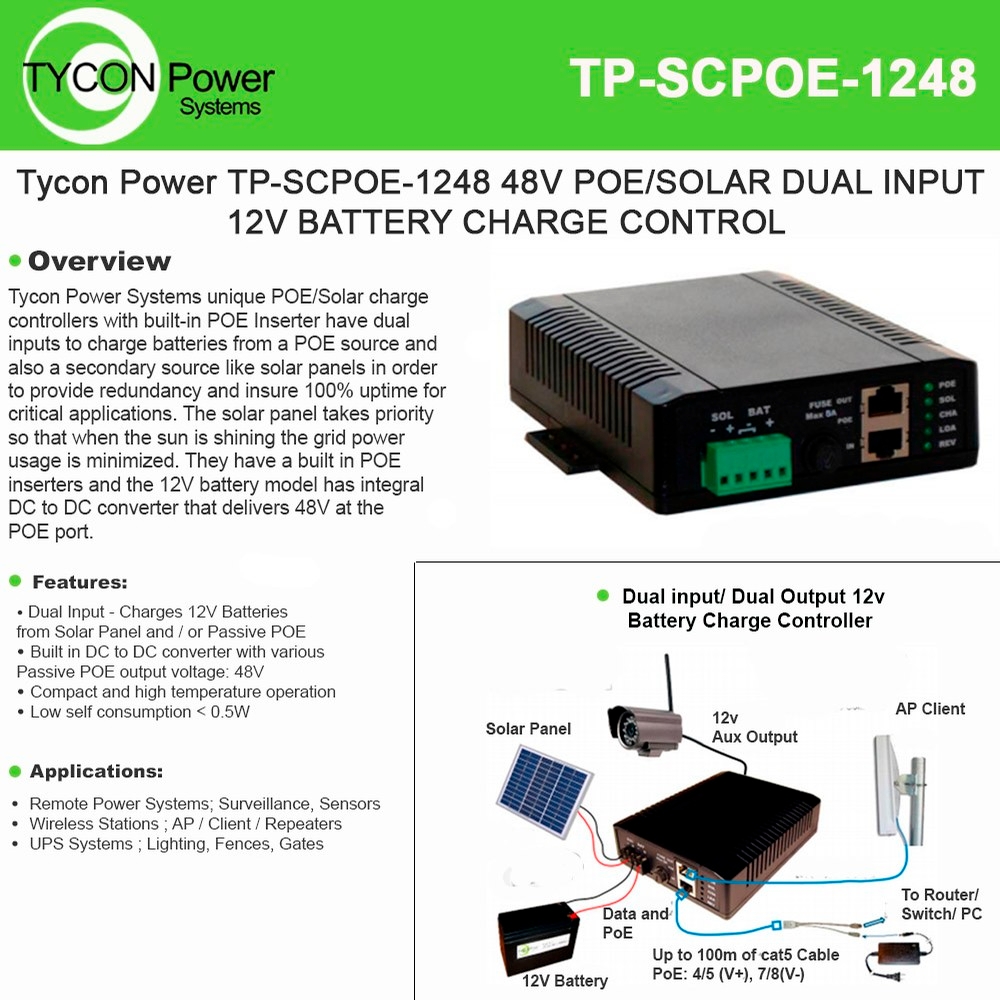

    Tycon Power Systems POE/Solar charge controllers have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.5A. They have a built in POE inserter that delivers 48V 0.375A at the POE out port. They also have a secondary wire terminal 12V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.

    The built-in overdischarge protection and low self consumption ensures the battery is not overdischarged, which greatly increases the life of the batteries.

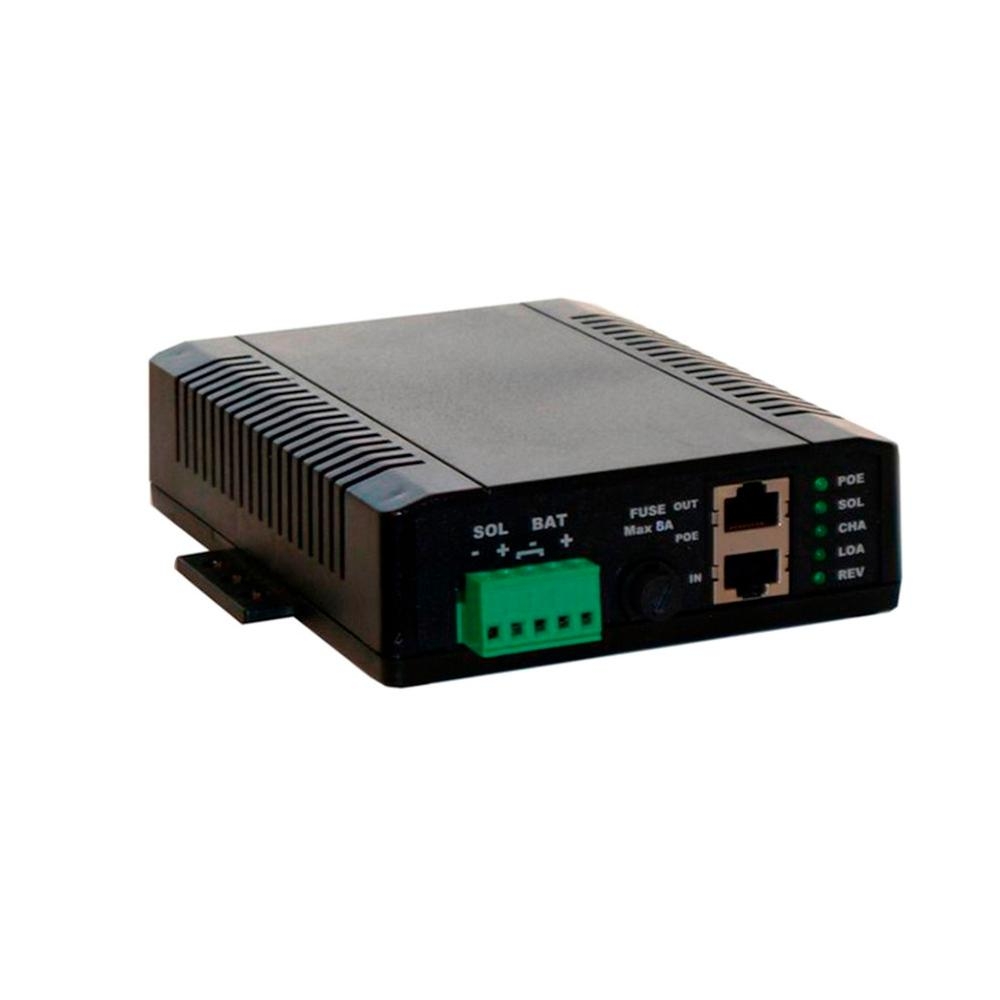

    They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.

    Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.

    The controllers are externally fused with a standard replaceable fuse.

    • Solar Input Voltage 15V - 36V @ 10A max
    • POE Input Voltage 18V - 57V @ 2.0A max
    • Battery Voltage 12V
    • POE Output 48V @ .625A
    • Secondary Output 11V to 15V @ 1.5A max
    • Operating Temp -30°C to 60°C (-22°F to 140°F)
    • Size: 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)
    • Weight: 312 g (11 oz)
