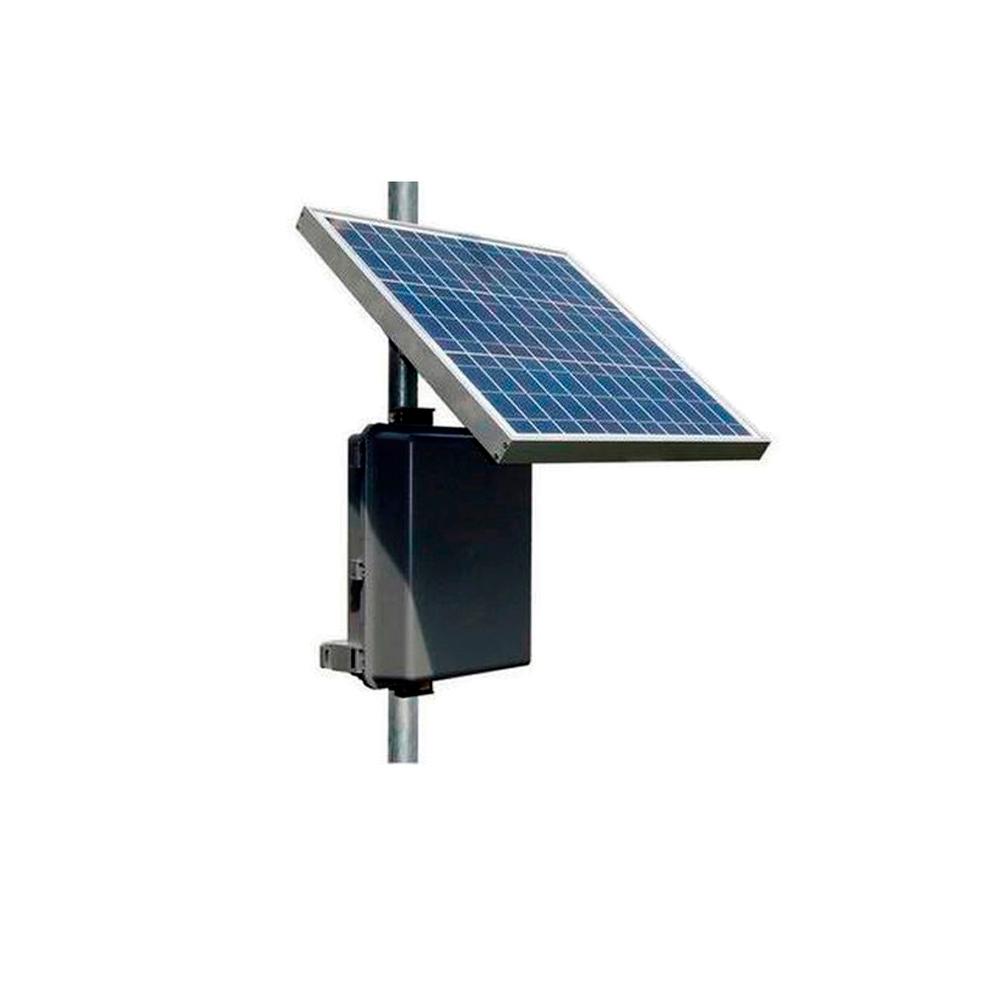

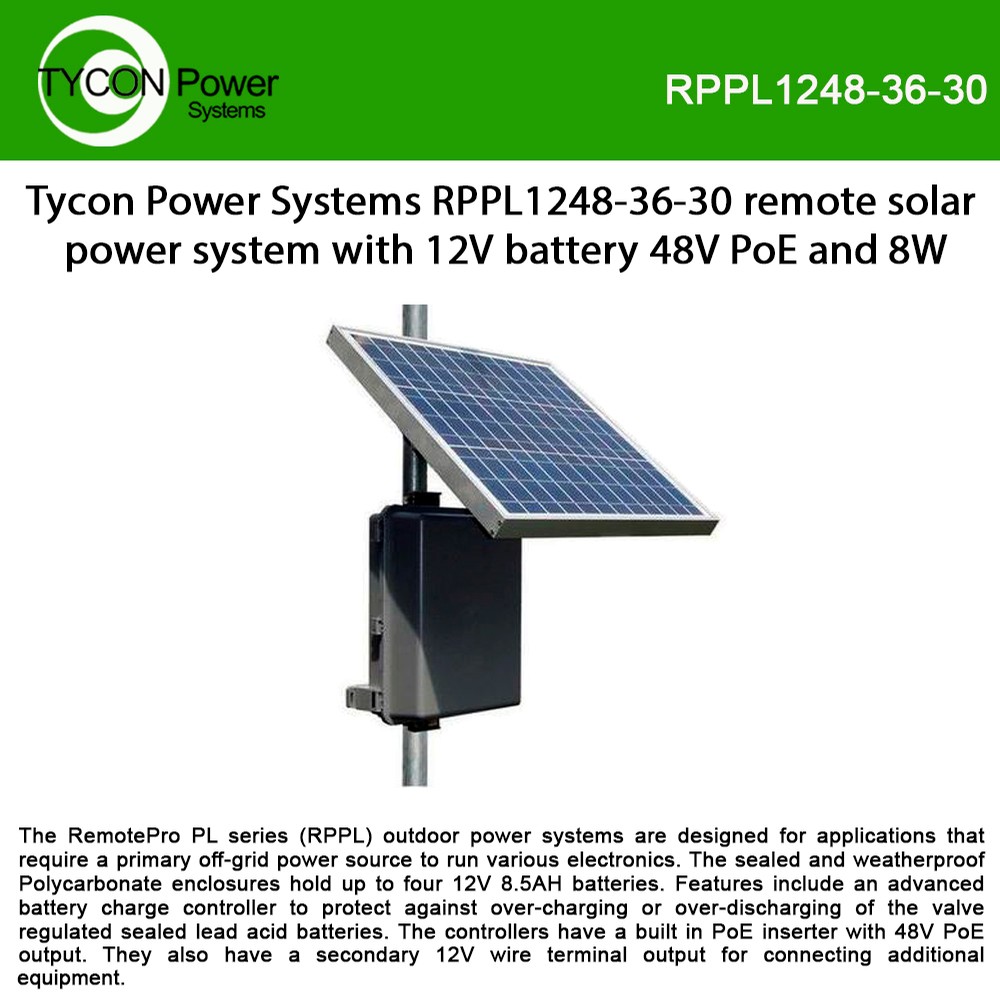

Tycon Power Systems RPPL1248-36-30 Remote Solar Power System with 12V 34Ah Battery and 48V PoE

Product Highlights
  • RemotePro Remote Solar Power System, 30W Solar, 12V 36Ah 432Wh Batt, 8W Continuous Power, 48V 30W Passive PoE out
  • 12V 8A PWM Solar Charge Controller with Load Controlled 48V 30W Passive PoE out + 12V 1.5A Aux out
  • Supports Up to 8W Continuous Power with 6hrs Peak Sun
  • Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure and Side of Pole Solar Mount
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Remote Lighting; Backup Power Systems
  • Model#: RPPL1248-36-30

    Sku: IT2796

    MSRP: $520.99

    Out of stock

    The RemotePro™ series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof enclosures have a generous amount of space inside and a removable mounting plate for mounting all types of customer electronics.

    The enclosures are hinged and gasket sealed and can be mounted to a wall or pole with the included mounting bracket system.

    The high quality solar panels have a 25year power output guarantee. The solar panels come with a side of pole mount for 2" to 4" diameter poles.

    Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. The controllers have a built in PoE inserter with 48V PoE output. They also have a secondary 12V wire terminal output for connecting additional equipment.

    Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance. 12V Battery 48V PoE 8W 24 hour continuous power is provided from 6 hours of sun per day.


    • Wireless Base Stations and Clients
    • Surveillance Cameras
    • Wireless Bridge and Repeaters
    • Remote Sensors
    • Remote Lighting
    • Backup Power Systems
    • Rated Power Generation 8W
    • Reserve Time @ Rated Power 27hrs
    • POE Output Voltage (DC) 24V1.2A 48V.62A
    • Secondary Volts Out (DC) 12V 1.5A
    • Battery Capacity (Amp Hrs) 34Ah
    • Battery Voltage (DC) 12V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Battery Life 5 Years
    • Controller Type Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter
    • Overcharge Protection 14.4V
    • Over-discharge protection 11.0V
    • Over-discharge recovery volts 12.5V
    • Controller Self Consumption < 0.5W
    • Enclosure Type Polycarbonate
    • Enclosure External Size 17.5 x 12.5 x 6” (445x318x152mm)
    • Enclosure Internal Size 14 x 10 x 5” (356x254x127mm)
    • Solar Panel Dims 26” X 16” (654 x 401mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (no batteries) 22lb (10kg)
    • Battery Weight 22lb (10kg)
    • Wind Speed Rating 110MPH (49m/s)
