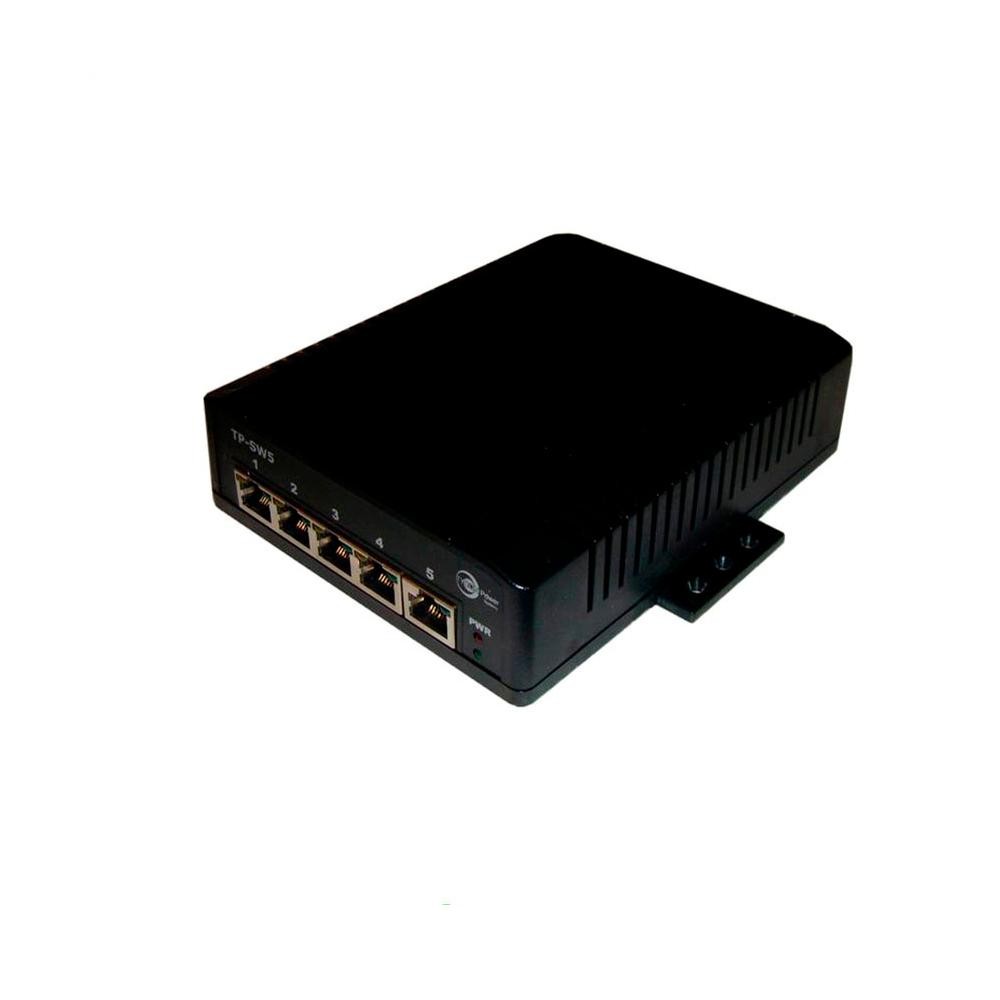

Tycon Power TP-SW5G 5 Port High Power 802.3af POE Gigabit Switch with power supply

TP-SW5G

Tycon Power Systems
Tycon Power TP-SW5G 5 Port High Power 802.3af POE Gigabit Switch with power supply


Product Highlights
  • TP-SW5G Power Over Ethernet (POE) 10/100/1000Mb switch offered by Tycon Power Systems is a fully automatic high speed 5 port Ethernet gigabit switch with up to 35 Watts of POE power per port. It complies with the IEEE802.3af/at specifications for val
  • The unit supplies power to the remote device on the unused Ethernet pins 4,5(V-pos) and 7,8(V-neg). The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device.
  • The switch accepts DC power from the included autoranging 48-56VDC power supply or can be connected to a user supplied 48-56VDC power source. There are 2 power inputs for attachment of primary and backup power sources.
  • Remotely Power Equipment thru CAT5 Cable up to 100m, Wireless Access Points and Client Devices , IP Phone and Security Camera Systems
  • Applications: Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
  • Model#: TP-SW5G

    Sku: IT2792.380.106096



    MSRP: $292.95

    In Stock

    Your Price: $292.95




    The TP-SW5G Power Over Ethernet (POE) 10/100/1000Mb switch offered by Tycon Power Systems is a fully automatic high speed 5 port Ethernet switch with up to 35 Watts of POE power per port. It complies with the IEEE802.3af/at specifications for valid POE device detection.

    The unit supplies power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the POE switch and the remote device.

    The switch accepts DC power from the included autoranging 48-56VDC power supply or can be connected to a user supplied 48-56VDC power source. There are 2 power inputs for attachment of primary and backup power sources.

    The switch also accepts POE power via the 802.3af/at uplink port.

    This switch comes with a 48V 2.5A Power Supply.

    • High Power Gigabit POE Switch

    • Remotely Power Equipment thru CAT5 Cable up to 100m

    • Up to 35W per Port

    • Automatic MDI/MDI-X Crossover

    • Automatic Speed and Duplex Sensing

    • 1K Self Learning MAC Address Table

    • Compact Size for Desktop
