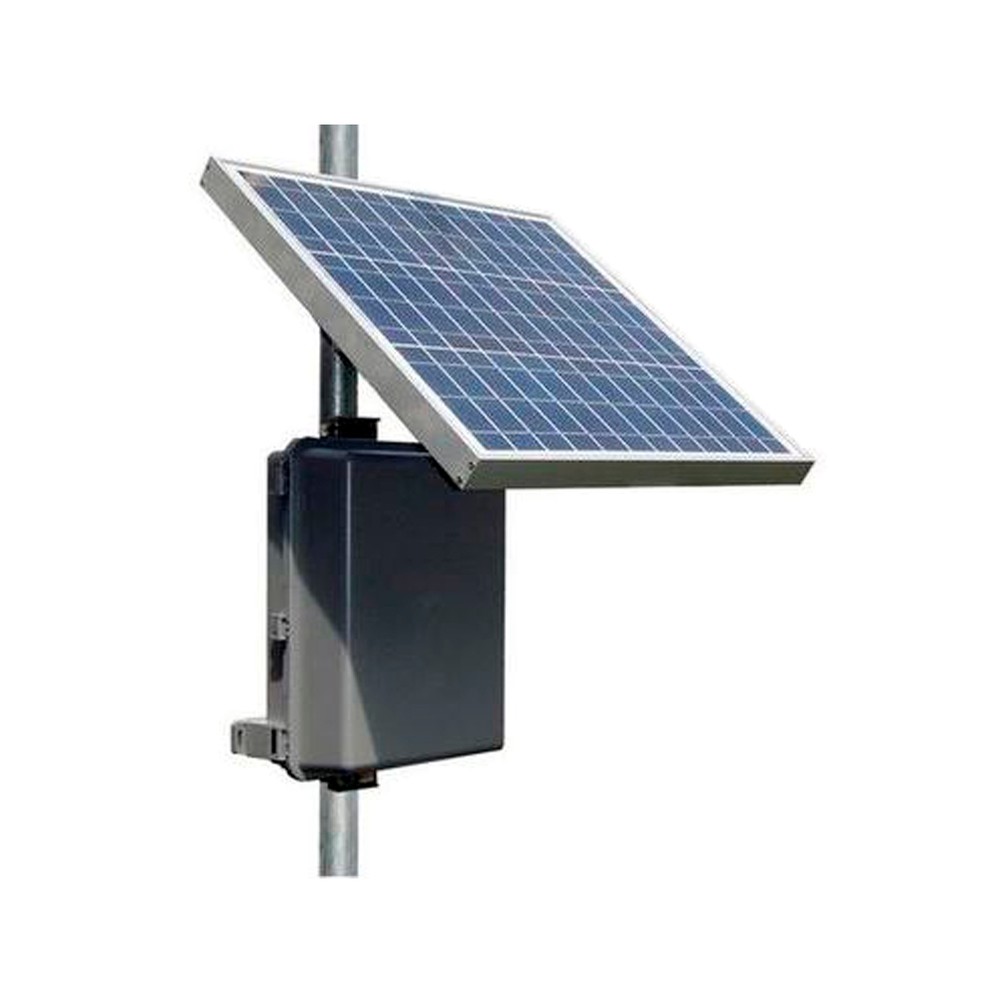

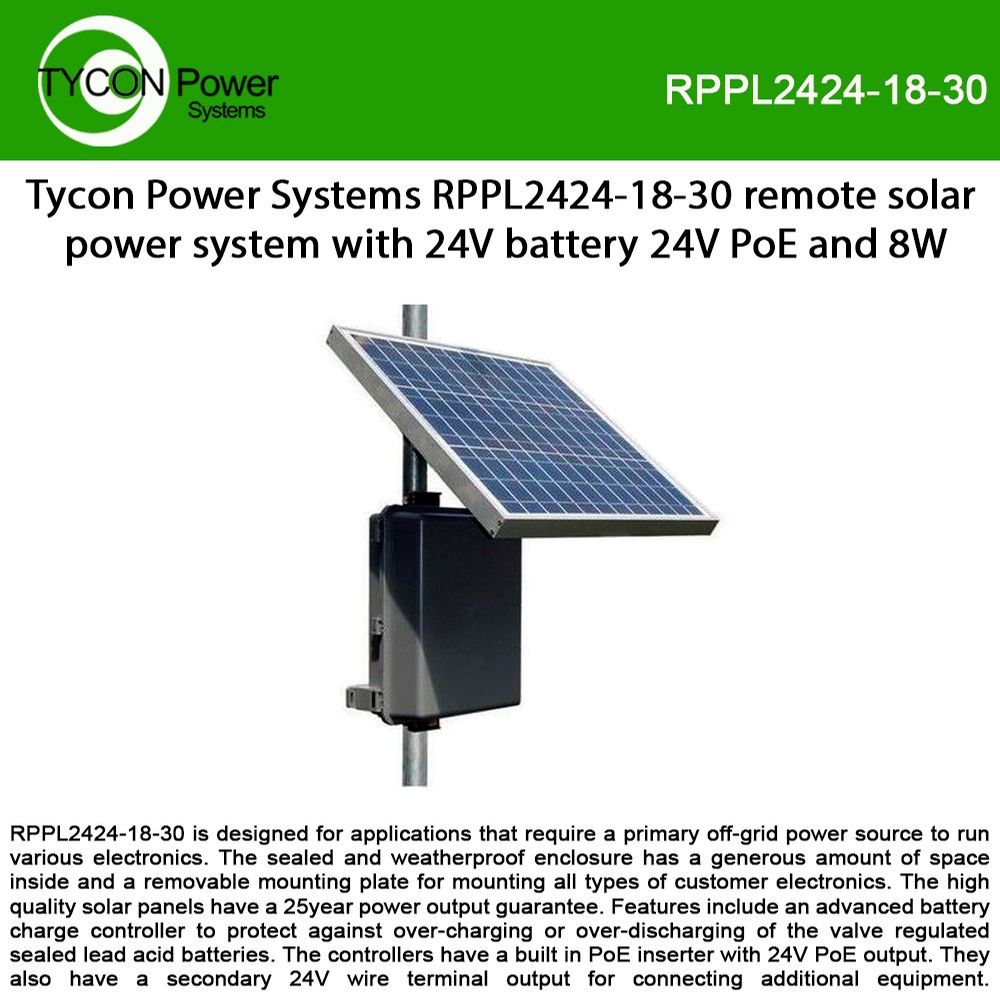

Tycon Power Systems RPPL2424-18-30 Remote Solar Power System with 24V Battery 24V PoE and 8W

RPPL2424-18-30

Tycon Power Systems
Tycon Power Systems RPPL2424-18-30 Remote Solar Power System with 24V Battery 24V PoE and 8W


Product Highlights
  • RemotePro Remote Solar Power System, 30W Solar, 24V 18Ah 432Wh Batt, 8W Continuous Power, 24V 30W Passive PoE out
  • 24V 8A PWM Solar Charge Controller with Load Controlled 24V 30W Passive PoE out + 24V 1.5A Aux out
  • Supports Up to 8W Continuous Power with 6hrs Peak Sun
  • Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure and Side of Pole Solar Mount
  • Applications: Wireless Base Stations and Clients; Surveillance Cameras; Wireless Bridge and Repeaters; Remote Sensors; Remote Lighting; Backup Power Systems
  • Model#: RPPL2424-18-30

    Sku: IT2791.376.104941



    MSRP: $569.99

    Out of stock

    Your Price: $529.95


    24V Battery 24V PoE 8W 24 hour continuous power is provided from 6 hours of sun per day.

    The RemotePro™ series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof enclosures have a generous amount of space inside and a removable mounting plate for mounting all types of customer electronics.

    The enclosures are hinged and gasket sealed and can be mounted to a wall or pole with the included mounting bracket system.

    The high quality solar panels have a 25year power output guarantee. The solar panels come with a side of pole mount for 2" to 4" diameter poles.

    Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. The controllers have a built in PoE inserter with 24V PoE output. They also have a secondary 24V  wire terminal output for connecting additional equipment.

    Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

    Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.

    Applications

    • Wireless Base Stations and Clients
    • Surveillance Cameras
    • Wireless Bridge and Repeaters
    • Remote Sensors
    • Remote Lighting
    • Backup Power Systems
    • Rated Power Generation 8W
    • Reserve Time @ Rated Power 27hrs
    • POE Output Voltage (DC) 24V1.2A 48V.62A
    • Secondary Volts Out (DC) 24V 1.5A
    • Battery Capacity (Amp Hrs) 34Ah
    • Battery Voltage (DC) 24V
    • Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
    • Controller Type Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter
    • Overcharge Protection 28.6V
    • Over-discharge protection 22.0V
    • Over-discharge recovery volts 24.5V
    • Controller Self Consumption < 0.5W
    • Enclosure Type Polycarbonate
    • Enclosure External Size 17.5 x 12.5 x 6” (445x318x152mm)
    • Enclosure Internal Size 14 x 10 x 5” (356x254x127mm)
    • Solar Panel Dims 26” X 16” (654 x 401mm)
    • Operating Temperature -30°C to +60°C (-22°F to 140°F)
    • System Weight (no batteries) 22lb (10kg)
    • Battery Weight 22lb (10kg)
    • Wind Speed Rating 110MPH (49m/s)
