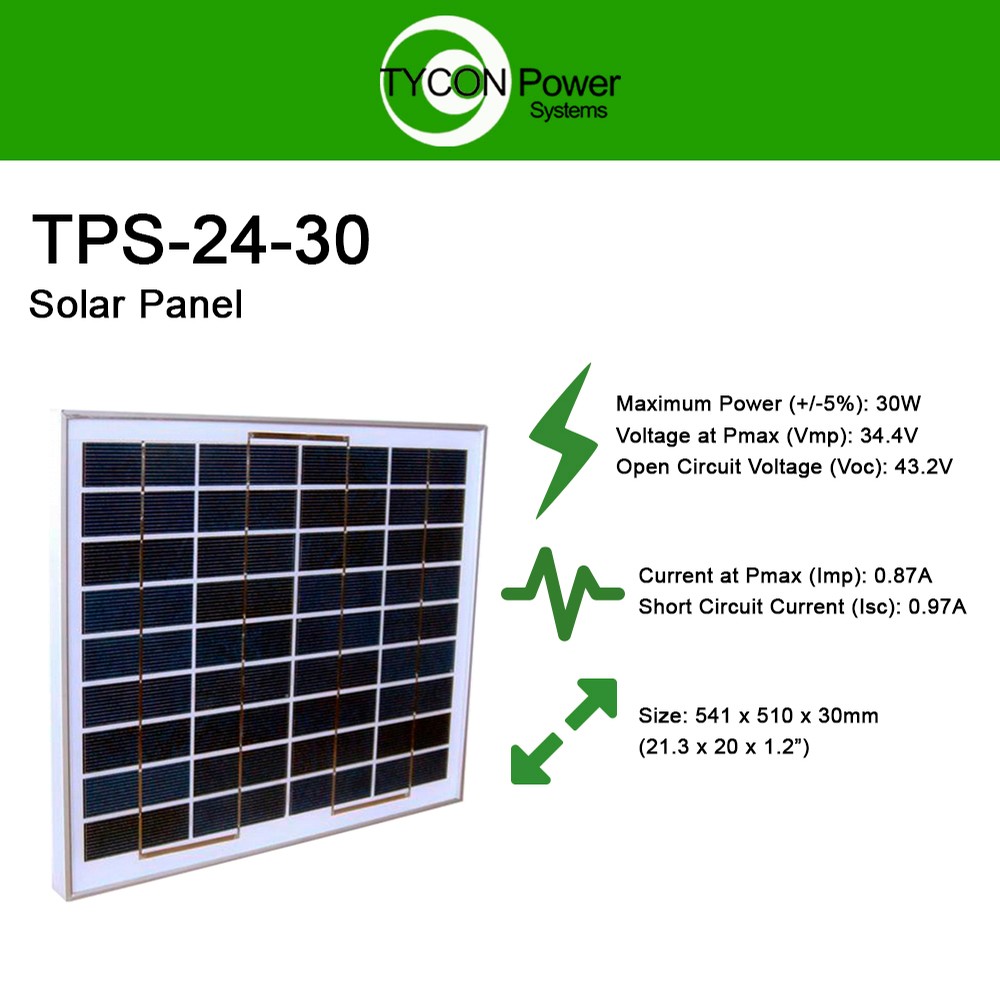

Tycon Power Systems TPS-24-30 24V 30W Heavy Duty Solar Panel with Wire Terminal

TPS-24-30

Tycon Power Systems
Tycon Power Systems TPS-24-30 24V 30W Heavy Duty Solar Panel with Wire Terminal


Product Highlights
  • 24V 30W Solar Panel with 25 Year out Warranty
  • High Efficiency with High Transparency Low Iron Tempered Glass
  • Rugged Extruded and Anodized Aluminum Frame, Fully Sealed
  • Sealed for protection from harsh environments
  • Applications: Battery Charging Applications; Surveillance Cameras; Wireless Base Stations; Outdoor Lighting; Remote Sensors; Backup Power Systems
  • Model#: TPS-24-30

    Sku: IT2785.314.874490



    MSRP: $132.95

    In Stock

    Your Price: $132.95

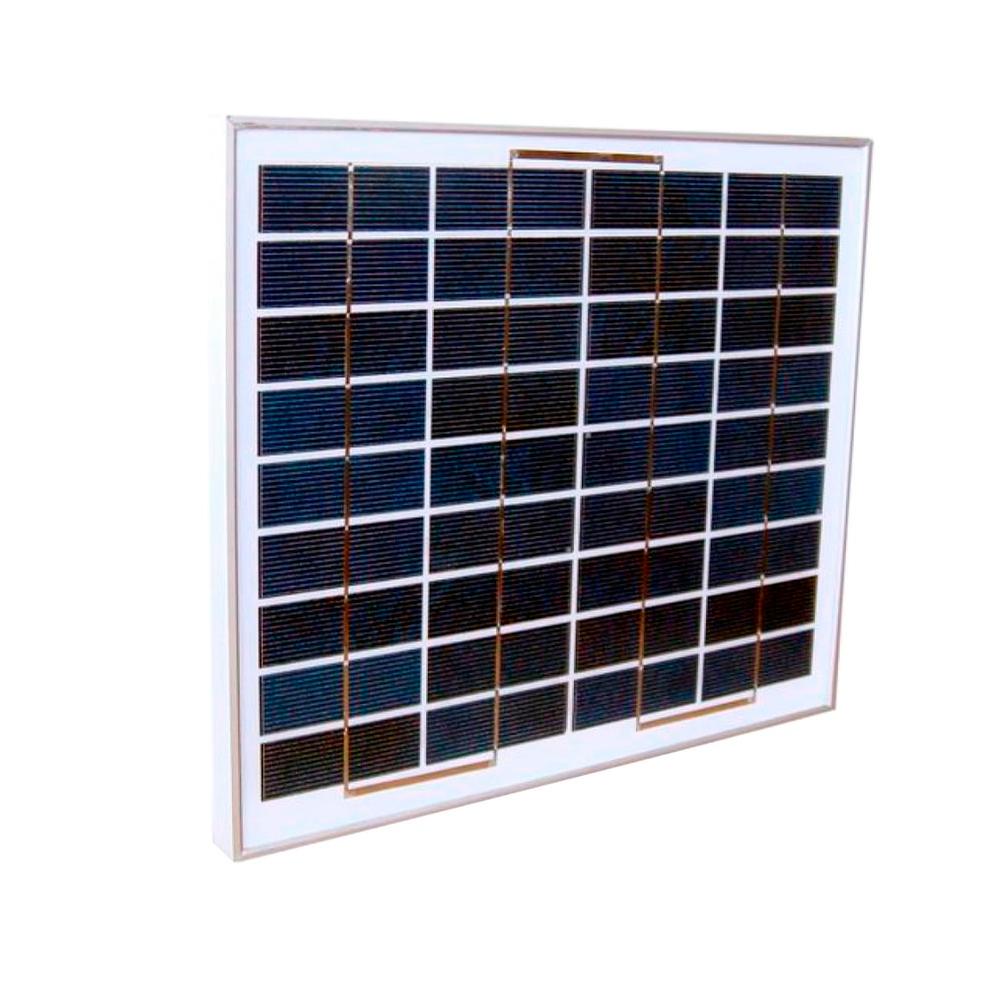

    The TPS series solar panels are high efficiency designs with excellent low light performance. The multicrystalline silicon solar cells from Germany are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice.

    The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels.

    Applications
    • Battery Charging Applications
    • Surveillance Cameras
    • Wireless Base Stations
    • Outdoor Lighting
    • Remote Sensors
    • Backup Power Systems

    • Maximum Power (+/-5%) 30W
    • Voltage at Pmax (Vmp) 34.4V
    • Current at Pmax (Imp) 0.87A
    • Open Circuit Voltage (Voc) 43.2V
    • Short Circuit Current (Isc) 0.97A
    • Short Circuit I Temp Coeff .065% / °C
    • Open Circuit V Temp Coeff -80mV / °C
    • Output Power Temp Coeff 0.5%/°C
    • Wind Survivability 201kph (125mph)
    • Hailstone Survivability 1” @ 50mph
    • Operating Temperature -40 to +85°C Continuous Power Capability (6hrs average sunlight per day) 8W
    • Size 541 x 510 x 30mm (21.3 x 20 x 1.2”)
    • Weight 3.8kg (8.4lb)
