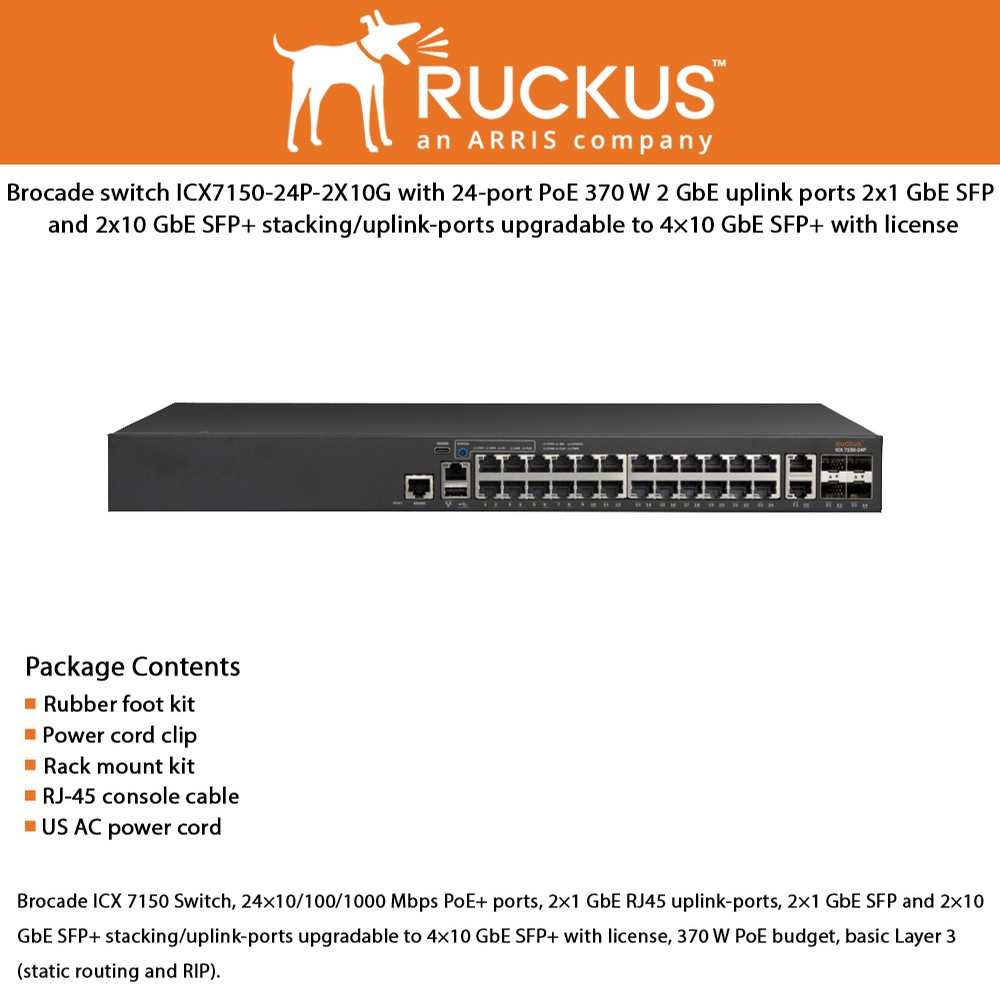

Brocade switch ICX7150-24P-2X10G w/ 24-port PoE 370 W 2 GbE uplink ports 2-Gig SFP and 2x10 Gig SFP

ICX7150-24P-2X10G

Brocade
Ruckus ICX 7150 Switch 24-port PoE+ 2×1 GbE RJ45 uplink-ports, 2×1 GbE SFP and 2×10GbE SFP+ stacking/uplink-ports upgradable to 4×10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP).


Product Highlights
  • 24× 10/100/1000 Mbps RJ-45 PoE+ ports
  • 2×1 GbE RJ45 uplink-ports
  • 2×1 GbE SFP
  • 2×10 GbE SFP+ stacking/uplink-ports upgradable to 4×10 GbE SFP+ with license
  • Ruckus Wireless is now part of Brocade Communications Systems
  • Model#: ICX7150-24P-2X10G

    Sku: IT2769.6016.166583



    MSRP: $869.95

    Out of stock

    Your Price: $849.95


    ICX switch family delivers the enterprise class features for flexibility, scalability and simplified management.

    ICX® 7150 family of stackable switches delivers the performance, flexibility, and scalability required for enterprise access deployment, raising the bar with non-blocking performance and up to 8x10 GbE ports for uplinks or stacking. It offers seamless interoperability with Ruckus wireless products to deliver unified wired and wireless network access. In addition, Ruckus Multigigabit Ethernet technology offers bandwidth speeds needed to optimize performance of the latest generation high performance wireless access points and edge devices, over standard Ethernet cables.

    ICX 7150 models offer a single integrated power supply, one RJ-45 Ethernet port for out-of-band network management, one USB Type-C port for console management, one RJ-45 port for serial console management, and one USB port for external file storage.

    Notes:
    All ICX 7150 switches come with an accessory kit that includes a rubber foot kit, power cord clip, rack mount kit (for 24/48 ports model), RJ-45 console cable and US AC power cord. Stacking cables, USB console cables, compact switch rack mount kit, and optics need to be ordered separately.

    Ruckus Wireless is now part of Brocade Communications Systems.

    • 24× 10/100/1000 Mbps RJ-45 PoE+ ports
    • 370 W PoE budget
    • 2× 10/100/1000 Mbps uplink RJ-45 ports
    • 4× 1/10 GbE uplink/stacking SFP/SFP+ ports
    • Switching capacity (data rate, full duplex): 132 Gbps
    • Forwarding capacity (data rate, full duplex): 98 Mpps
    • Base IPv4/v6 Layer 3 routing
    • Aggregated stacking bandwidth (data rate, full duplex): 480 Gbps
    • Stacking density (maximum switches in a stack): 12
    • Stacking ports (maximum ports usable for stacking): Up to 4×10 GbE SFP+
    • Maximum stacking distance (distance between stacked switches): 10 km
