ICX7250-24

Brocade

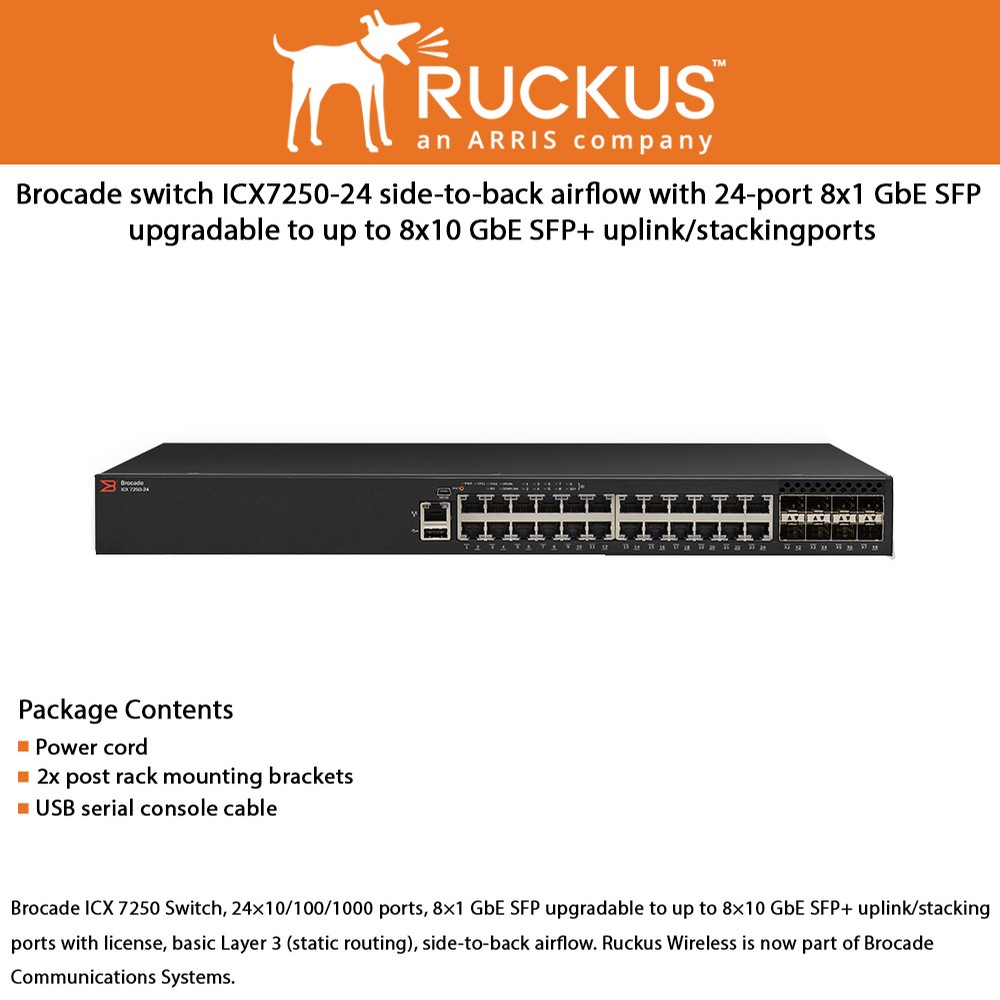

Brocade Switch ICX7250-24 with 24-port 8 GbE SFP Upgradable to up to 8x10 SFP+ Uplink/Stackingports



Product Highlights
  • 24×10/100/1000 ports
  • 8×1 GbE SFP upgradable to up to 8×10 GbE SFP+ uplink/stackingports with license
  • Switching capacity (data rate, full duplex): 208 Gbps
  • Side-to-back airflow
  • Ruckus Wireless is now part of Brocade Communications Systems
  • Model#: ICX7250-24

    Sku: IT2767



    MSRP: $969.99


    Out of stock

    ICX 7250 switch combines enterprise-class features, manageability and the flexibility and “pay as you grow” scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack.

    ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE/PoE+ port availability. The Ruckus ICX 7250 is easy to deploy, manage, and integrate into both new and existing networks.

    Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising performance and reliability.

    ICX 7250 delivers wire-speed, non-blocking performance across all ports to support latency-sensitive applications, such as real-time voice/video streaming and Virtual Desktop Infrastructure (VDI).

    Notes:
    ICX 7250 switches come with a power cord, two-post rack mounting brackets, and a USB serial console cable. Stacking cables and optics must be ordered separately.
    Ruckus Wireless is now part of Brocade Communications Systems.

    • 24×10/100/1000 ports
    • 8×1 GbE SFP upgradable to up to 8×10 GbE SFP+ uplink/stackingports with license
    • Side-to-back airflow
    • Switching capacity (data rate, full duplex): 208 Gbps
    • Forwarding capacity (data rate, full duplex): 154 Mpps
    • Aggregated stacking bandwidth: 480 Gbps
    • Stacking density (maximum switches in a stack): 12
    • Stacking ports (maximum ports usable for stacking): Up to 4×10 GbE SFP+ per switch (10 Gbps SFP+ ports are required for stacking. )
    • Maximum stacking distance (distance between stacked switches): 10 km
    • Base IPv4/IPv6 Layer 3 routing (static routing, RIP)
