ICX6430-C12

Brocade

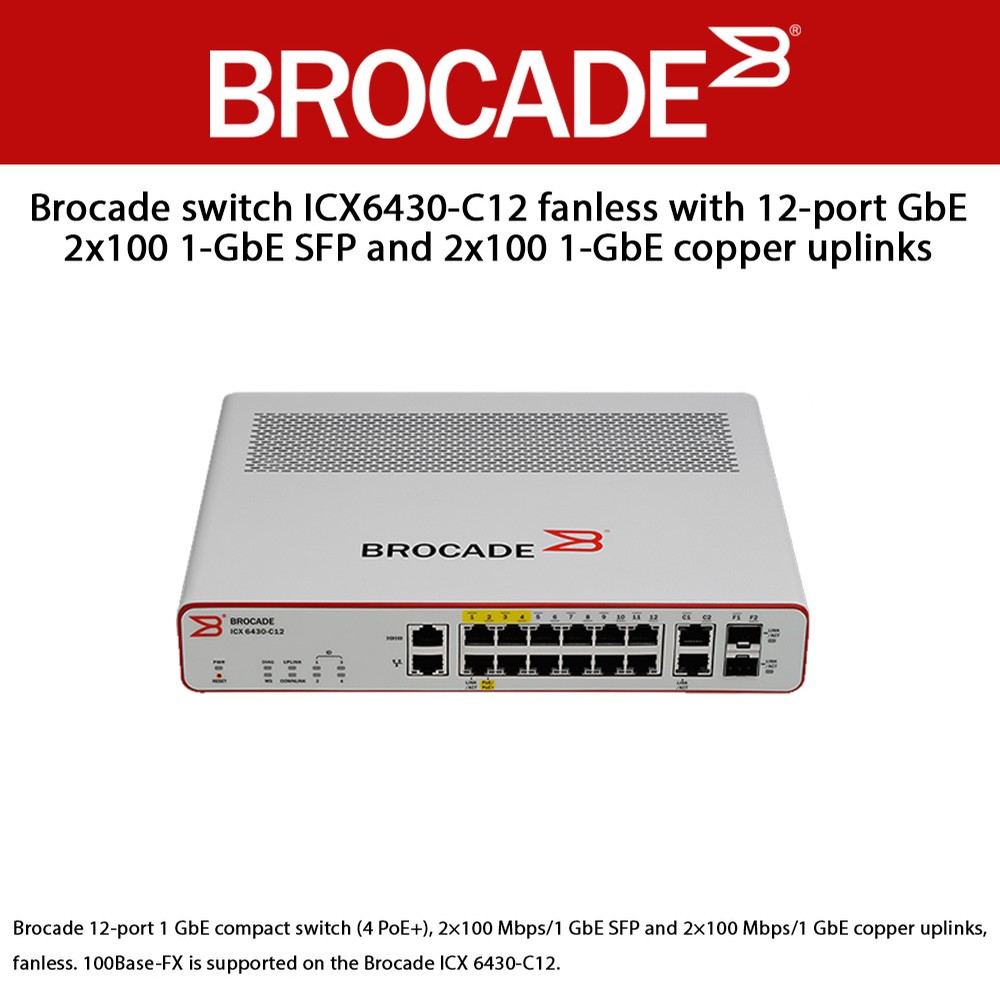

Ruckus Brocade Switch ICX6430-C12 Fanless with 12-port GbE 2x100 1-GbE SFP and 2x100 1-GbE


Product Highlights
  • 12-port 1 GbE compact switch (4 PoE+)
  • 2×100 Mbps/1 GbE SFP
  • 2×100 Mbps/1 GbE copper uplinks
  • Switching capacity (data rate, full duplex): 32 Gbps
  • Ruckus Wireless is now part of Brocade Communications Systems

    • Model#: ICX6430-C12

    Sku: IT2765



    MSRP: $568.99


    Out of stock

    ICX® 6430 and 6450 Switches provide enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising performance and reliability.

    With ICX 6430 and 6450 Switches, organizations can buy only what they need today and easily scale user ports and services as their network requirements evolve. Ruckus offers maximum investment protection through flexible software licensing options that bring advanced services and performance to lower-cost ports.

    Notes:
    Stacking is not supported on the Brocade ICX 6430-C12. 100Base-FX is supported on the Brocade ICX 6430-C12.
    Ruckus Wireless is now part of Brocade Communications Systems.

    • 12-port 1 GbE compact switch (4 PoE+)

    • 2×100 Mbps/1 GbE SFP

    • 2×100 Mbps/1 GbE copper uplinks

    • Fanless

    • Internal AC power supply rating: 100 W

    • PoE/PoE+ power budget (internal power supply): 68 W

    • PoE Class 3 ports (internal power supply): 4

    • PoE+ ports (internal power supply): 2

    • Max PoE Class 3 ports (with internal and external power supplies): 4

    • Max PoE+ ports (with internal and external power supplies): 2

    • Base software: Layer 2

    • Switching capacity (data rate, full duplex): 32 Gbps

    • Forwarding capacity (data rate, full duplex): 24 Mpps
