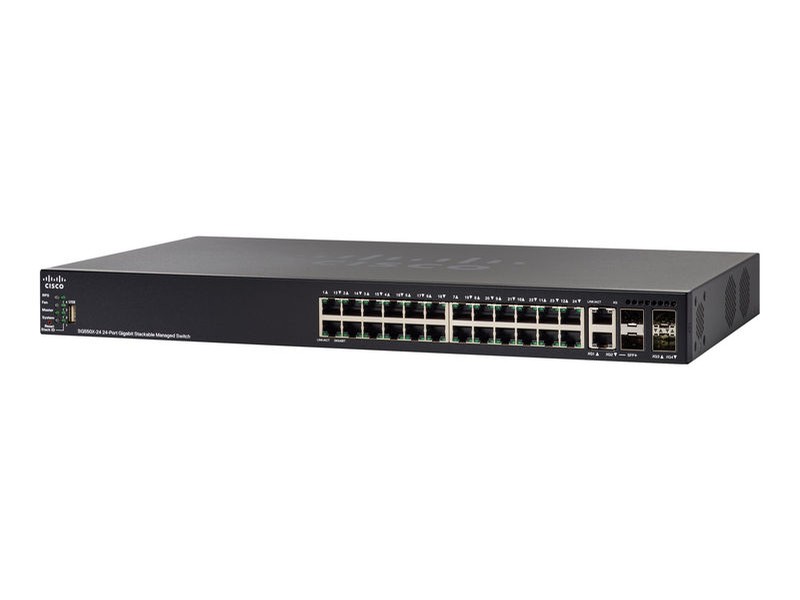

Cisco SG550X-24 Stackable Managed Switch Gigabit Ethernet 24-Ports

Model#: SG550X-24-K9-NA

Sku: IT2751

MSRP: $1,029.95

Out of stock

Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future and receive credit for your Cisco 550X Series switch. Overall, the Cisco 550X Series provides the ideal technology foundation for a growing business.

Cisco 550X Series switches feature:

  • Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods
  • The latest application-specific integrated circuits (ASICs), which use low-power 28- or 40-nanometer technology and low-power, high-performance ARM CPUs
  • Automatic power shutoff on ports when a link is down
  • LEDs that can be turned off to save power
  • Embedded intelligence to adjust signal strength based on the length of the connecting cable
  • Smart fans in which fan speed is automatically adjusted according to switch temperature to decrease acoustic noise and save power
  • Ports: 24 x 10/100/1000 ports
  • Ports: 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)
  • Capacity in mpps (64-byte packets): 95.23
  • Switching Capacity (Gbps): 128
  • Green Power (mode): EEE, Energy Detect, Short Reach
  • System Power Consumption: 110V=33.5W / 220V=33.5W
  • Packet Buffer: 1.5 MB
  • Unit Dimensions: 440 x 44 x 257 mm (17.3 x 1.7 x 10.12 in)
  • Unit Weight: 3.27 kg (7.21 lb)
  • Fan (Number): 1 + 1 (redundant)
  • Package Contents:  Cisco 550X Series Stackable Managed Switch
  • Power cord
  • Mounting kit included with all models
  • Serial cable
  • CD-ROM with user documentation (PDF) included
  • Quick Start Guide
