SG110-16HP-NA

Cisco

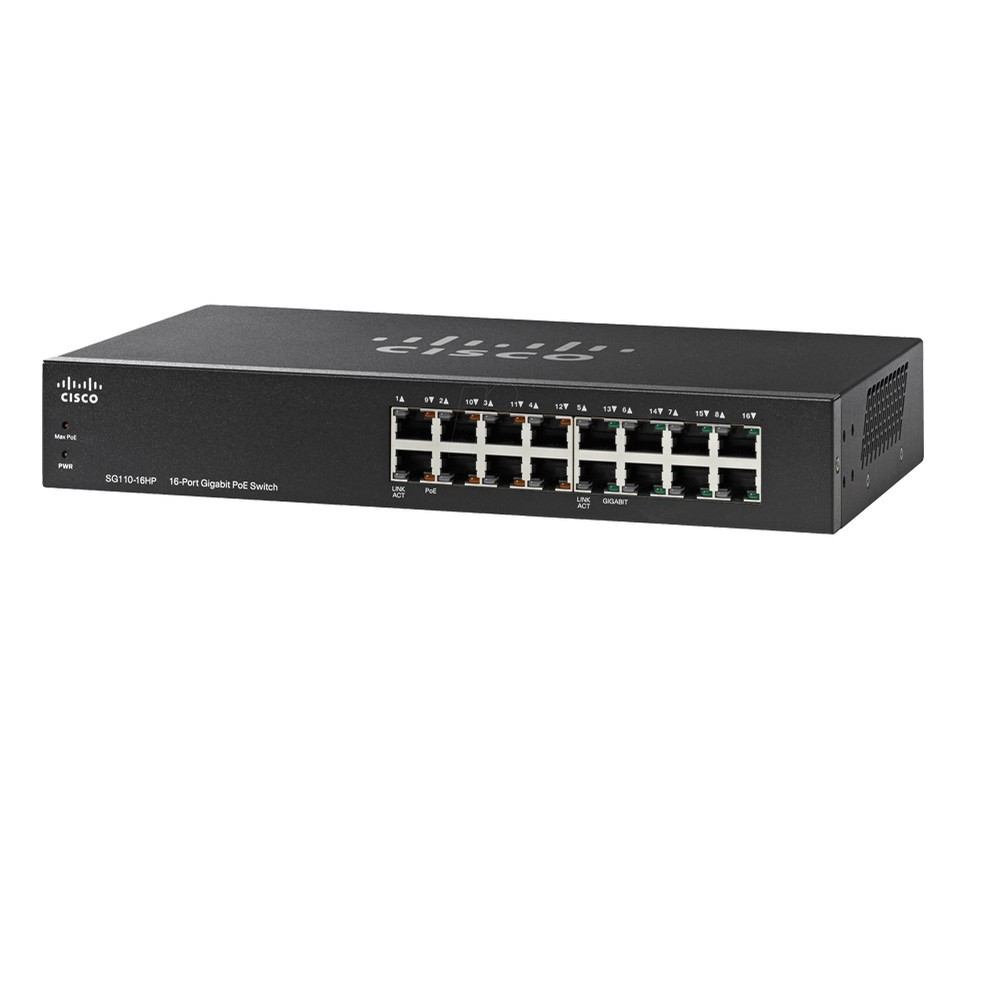

Cisco SG110-16HP Switch, Unmanaged, 8x10/100/1000 + 8x10/100/1000- PoE



Product Highlights
  • Cisco 110 Series Unmanaged Switch 16-Port 110 Series SG110-16HP PoE Network Switch
  • With the SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch from Cisco, you can connect a variety of Ethernet-enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet.
  • 8 x Gigabit Ethernet Ports / 8 x Gigabit Ethernet PoE Ports
  • 32 Gbps Switching Capacity
  • 23.8 Mpps Forwarding Capacity
  • Model#: SG110-16HP-NA

    Sku: IT2732



    MSRP: $349.95


    Out of stock

    Model: SG110-16HP

    With the SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch from Cisco, you can connect a variety of Ethernet-enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet. Plug-and-play configuration allows you to place it into a rack mount configuration and begin expanding your network capacity right away. This SF110 series switch comes equipped with sixteen Gigabit Ethernet PoE compatible ports that provide a fast, reliable network connection as well as Power over Ethernet to power a variety of compatible network devices. A switching capacity of 32 Gbps and forwarding capacity of 23.8 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.

    Once installed, this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard, which puts unused links within the switch to sleep. For added piece of mind the SF110 switch supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors.

    • High Performance

    This Cisco 110 Series switch delivers the performance to run business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. It supports Fast Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

    Capacity

    • Type: QoS hardware queues
    • Value: 4

    Dimensions & Weight

    • Depth: 6.7 in
    • Height: 1.8 in
    • Weight: 3.15 lbs
    • Width: 11 in

    Environmental Parameters

    • Humidity Range Operating: 10 - 90% (non-condensing)
    • Humidity Range Storage: 5 - 90% (non-condensing)
    • Max Operating Temperature: 104 °F
    • Max Storage Temperature: 158 °F
    • Min Operating Temperature: 32 °F
    • Min Storage Temperature: -4 °F

    Flash Memory

    • Installed Size: 128 MB

    Header

    • Brand: Cisco
    • Compatibility: PC
    • Country Kits: North America
    • Manufacturer: Cisco Systems
    • Model: SG110-16HP
    • Packaged Quantity: 1
    • Product Line: Cisco Small Business

    Interface Provided

    • Connector Type: RJ-45
    • Qty: 8
    • Type: 1000Base-T
    • Comments: PoE

    Miscellaneous

    • Color Category: Black
    • Compliant Standards: CSA 22.2 , FCC CFR47 Part 15 , UL 60950

    Networking

    • Compliant Standards: IEEE 802.1p , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3af , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
    • Features: Cable test , Energy Efficient Ethernet , Quality of Service (QoS) , Security lock slot (cable lock sold separately)
    • Form Factor: Desktop , Wall-mountable
    • Jumbo Frame Support: 9216 bytes
    • Manageable: No
    • PoE Budget: 64 W
    • Ports Qty: 16
    • Power Over Ethernet (PoE): PoE
    • Status Indicators: Diagnostic , Link/activity , Loop , PoE , Power , System
    • Subcategory: Network hubs and switches
    • Subtype: Gigabit Ethernet
    • Type: Switch

    Performance

    • Type: Switching capacity
    • Value: 32 Gbps
    • Type: Forwarding performance (64-byte packet size)
    • Value: 23.8 Mpps

    Ports

    • Qty: 8
    • Type: 10/100/1000

    Ports (2nd)

    • Qty: 8
    • Type: 10/100/1000 (PoE)

    Power Device

    • Frequency Required: 50 - 60 Hz
    • Nominal Voltage: AC 120/230 V
    • Type: Internal power supply

    RAM

    • Installed Size: 128 MB

    Service

    • Support Details Full Contract Period: Lifetime
    • Support Details Type: Limited warranty

    Service & Support

    • Type: Limited lifetime warranty
