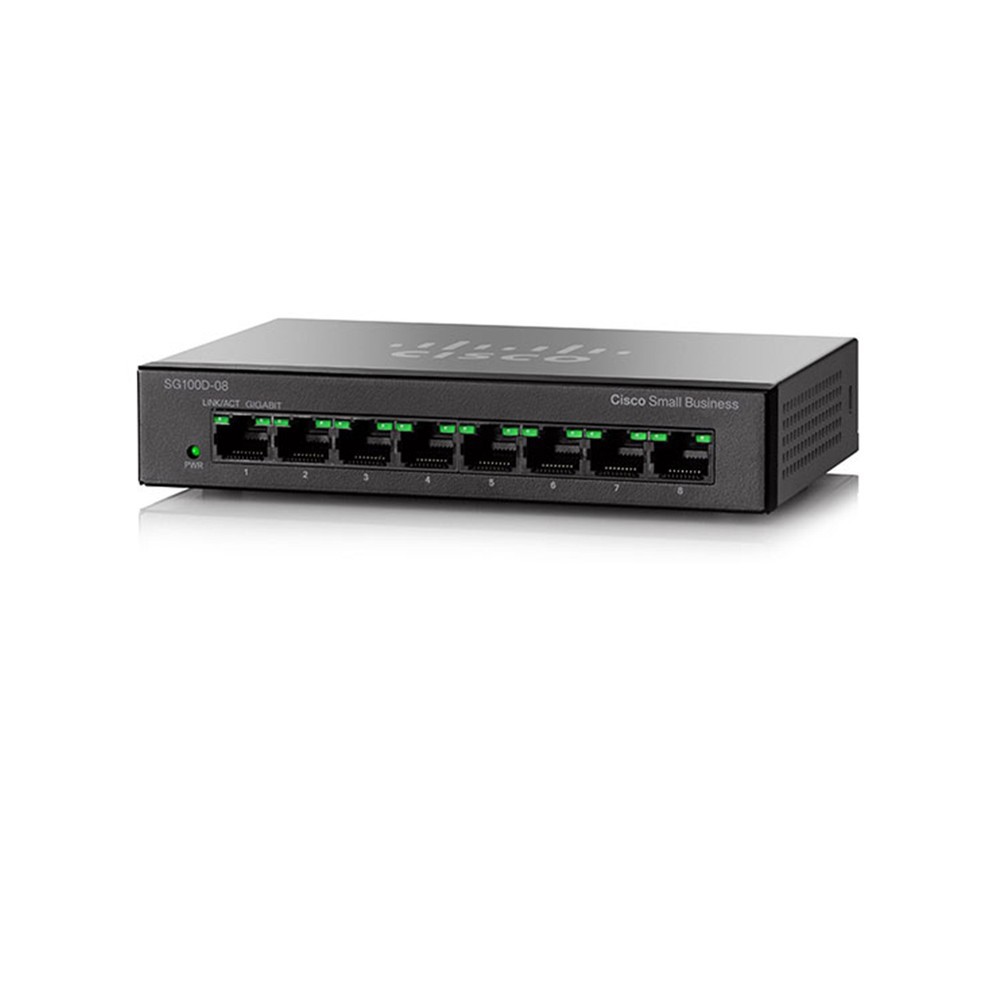

Cisco SG110D-08 Unmanaged Network Switch 8-Ports Gigabit Ethernet

SG110D-08-NA

Cisco
Cisco SG110D-08 Unmanaged Network Switch 8-Ports Gigabit Ethernet Layer 2


Product Highlights
  • The SG110D 110 Series 8-Port Unmanaged Network Switch from Cisco, you can connect a variety of Ethernet-enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet.
  • Plug and play configuration allows you to simply take the switch out of the box place it on the desk and begin expanding your network capacity.
  • This switch comes equipped with 8 Gigabit Ethernet ports providing a fast, reliable network connection.
  • A switching capacity of 16 Gbps and forwarding capacity of 11.9 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.
  • Once installed this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard which puts unused links within the switch to sleep.
  • Model#: SG110D-08-NA

    Sku: IT2730.3320.906360



    MSRP: $39.99

    Out of stock

    Your Price: $39.99


    Model SG110D-08-NA

    110 Series 8-Port Unmanaged Network Switch

    With the SG110D 110 Series 8-Port Unmanaged Network Switch from Cisco, you can connect a variety of Ethernet-enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet. Plug and play configuration allows you to simply take the switch out of the box place it on the desk and begin expanding your network capacity. This switch comes equipped with 8 Gigabit Ethernet ports providing a fast, reliable network connection. A switching capacity of 16 Gbps and forwarding capacity of 11.9 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.

    Once installed this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard which puts unused links within the switch to sleep. For added piece of mind, the SG110D supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors.

    • High Performance

    This Cisco 110 Series switch delivers the performance to run business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. It supports Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.

    • Reduced Energy Costs

    This Cisco 110 Series switch is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, it supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.

    • Support for Advanced Technologies

    This switch includes advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.

    General

    • Device type: Switch - 8 ports - unmanaged
    • Enclosure type: Desktop
    • Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet (RJ45)
    • Power over Ethernet (PoE): N/A
    • Performance: Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size) : 11.9 Mpps
    • MAC address table size: 4000 entries
    • Jumbo frame support: Yes
    • Features: Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet
    • Compliant standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x
    • Status indicators: Power, link/activity, cable diagnostics, loop detection

    Expansion / Connectivity

    • Interfaces: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45

    Power

    • Power device: Power adapter - external
    • Voltage required: DC 12 V
    • Electric current required: 1.00 Amps

    Miscellaneous

    • Width: 5.1 in
    • Depth: 5.1 in
    • Height: 1.1 in
    • Weight: 13.4 oz
    • Fanless: Yes
    • Compliant standards: CSA, UL, UL 60950, CSA C22.2, FCC CFR47 Part 15, FCC Part 15 A
    • Localization: North America

    Software/System Requirements

    • OS required: Linux, Apple MacOS X, Microsoft Windows

    Manufacturer Warranty

    • Service and support: Limited lifetime warranty
    • Service and support details: Limited warranty - replacement - lifetime ¦ Limited warranty - power supply and fans - 1 year ¦ Technical support - phone consulting - 1 year
