SF500-24MP-K9-NA

Cisco

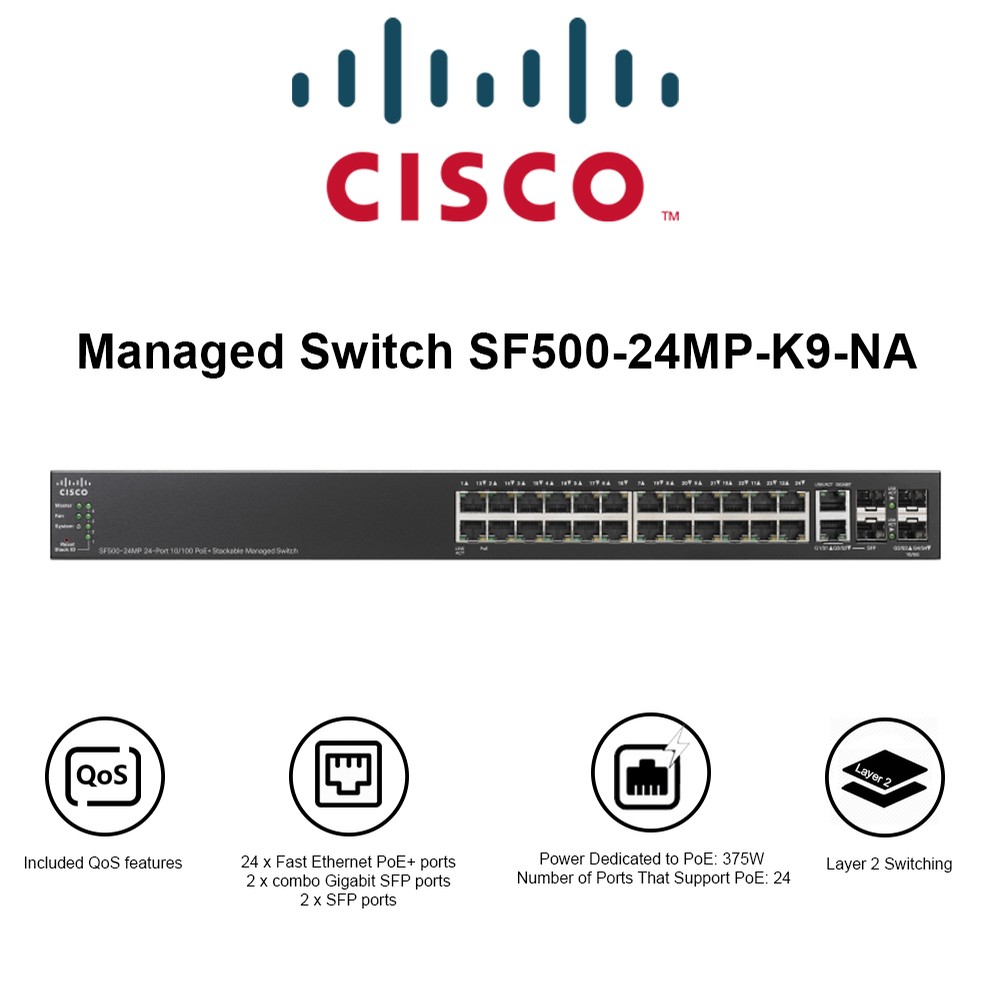

Cisco Switch SF500-24MP Managed Switch 24x 10/100 PoE+ + 2x Gigabit SFP + 2x SFP, RM


Product Highlights
  • The Cisco SF500-24MP Stackable Managed Switch is a line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price.
  • This switch provides 24 ports of Fast Ethernet connectivity, providing a solid foundation for your current business applications, as well as those you are planning for the future.
  • Cisco 500 Series switches are designed to protect your technology investment as your business grows.
  • Unlike switches that claim to be stackable but have elements which are administered and troubleshot separately, the Cisco 500 Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as
  • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.

    • Model#: SF500-24MP-K9-NA

    Sku: IT2722



    MSRP: $999.99


    Out of stock

    SF500-24MP-K9-NA

    The Cisco 500 Series Stackable Managed Switches are a line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price. This switch provides 24 ports of Fast Ethernet and 24 of Gigabit Ethernet connectivity, providing a solid foundation for your current business applications, as well as those you are planning for the future.

    At the same time, these switches are easy to deploy and manage, without a large IT staff. Cisco 500 Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements which are administered and troubleshot separately, the Cisco 500 Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

    • Simple-to-use graphical interfaces reduce the time required to deploy, troubleshoot, and manage the network and allow you to support sophisticated capabilities without increasing IT head count.
    • The switches also support Text view, a full command-line interface (CLI) option for partners that prefer it.
    • Support for Simple Network Management Protocol (SNMP) allows you to set up and manage your switches and other Cisco devices remotely from a network management station, improving IT workflow and mass configurations.
    • Extensive access control lists (ACLs) restrict sensitive portions of the network to keep out unauthorized users and guard against network attacks.
    • Storm control can be applied to broadcast, multicast, and unknown unicast traffic.

    • Product Description: Cisco Small Business SF500-24mp - Switch - 24 Ports - Managed - Rack-Mountable

    • Device Type: Switch - 24 Ports - Managed - Stackable

    • Enclosure Type: Rack-Mountable 1u

    • Subtype: Fast Ethernet

    • Ports: 24 X 10/100 (Poe+) + 2 X Combo Gigabit Sfp + 2 X Sfp

    • Power Over Ethernet (Poe): Poe+

    • Poe Budget: 375 W

    • Performance: Switching Capacity : 28.8 Gbps

    • Forwarding Performance (64-Byte Packet Size) : 9.52 Mpps

    • Capacity: Acl Rules : Up To 2048

    • Mac Address Table Size: 16k Entries

    • Jumbo Frame Support: 9216 Bytes

    • Routing Protocol: Static Ipv4 Routing, Static Ipv6 Routing, Cidr

    • Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Ssh, Cli

    • Features: Flow Control, Layer 2 Switching, Bootp Support, Vlan Support, Igmp Snooping, Syslog Support, Dos Attack Prevention, Port Mirroring, Diffserv Support, Weighted Round Robin (Wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Firmware Upgradable, Sntp Support, Spanning Tree Protocol (Stp) Support, Rapid Spanning Tree Protocol (Rstp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Dhcp Snooping, Trivial File Transfer Protocol (Tftp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Dynamic Arp Inspection (Dai), Reset Button, Stp Root Guard, Uni-Directional Link Detection (Udld), Dhcp Relay, Ip-Mac Binding, Energy Efficient Ethernet, Class Of Service (Cos), Generic Attribute Registration Protocol (Garp), 8mb Packet Buffer, Garp Vlan Registration Protocol (Gvrp), Diffserv Code Point (Dscp) Support, 2 Fans

    • Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az

    • Power: Ac 120/230 V ( 50/60 Hz )

    • Dimensions (Wxdxh): 17.3 In X 10.1 In X 1.7 In

    • Weight: 9.6 Lbs

    • Localization: North America
