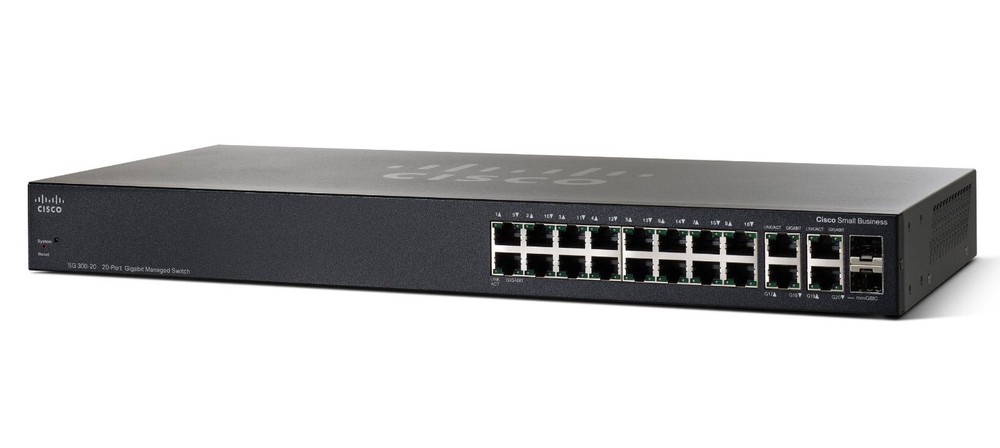

Cisco SG300-20 20-port Gigabit Managed Switch Layer 3 18 x 10/100/1000 + 2 x Gigabit SFP

Model#: SRW2016-K9-NA

Sku: IT2709

MSRP: $399.00

Out of stock

  • The Cisco SG300-20 20-Port 10/100/1000 Gigabit Managed Switch provides a reliable foundation for your business network. It delivers the features you need to improve the availability of your critical business applications, protect sensitive data and optimize network bandwidth to deliver information and applications more effectively. Setting up and the usage of the Cisco SG300-20 is a breeze and it provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
  • The Cisco SG300-20 has the advanced security management capabilities and network features you need to support business-class data, voice, security and wireless technologies. At the same time, it is simple to deploy and configure, allowing you to take advantage of the managed network service your business requires.

Product Description

  • Cisco SG300-20 - switch - 20 ports - managed - rack-mountable

Device Type

  • Switch - 20 ports - L3 - managed

Enclosure Type

  • Rack-mountable 1U


  • Gigabit Ethernet


  • 18 x 10/100/1000 + 2 x combo Gigabit SFP


  • Switching capacity : 40 Gbps ¦ Forwarding performance (64-byte packet size) : 29.76 Mpps

MAC Address Table Size

  • 8K entries

Routing Protocol

  • Static IPv4 routing

Remote Management Protocol

  • SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI


  • Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless

Compliant Standards

  • IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s


  • AC 120/230 V ( 50/60 Hz )

Dimensions (WxDxH)

  • 17.3 in x 8 in x 1.5 in


  • 4.78 lbs


  • Chinese (simplified), English, German, French, Italian, Spanish, Japanese

Manufacturer Warranty

  • Limited lifetime warranty
